Vantra Trailer

The first special trailer tire of exceptional durability and stability

Application
  • Regional Haul
Special Trailer Recommended
0Recently viewed products

Durable and long-lasting even under heavy loads

Hankook Tire & Technology-Tires-Vantra-Vantra Trailer-ST01-Durable & Long-Lasting even under Heavy Loads

Durability

Reinforced structure and optimized pattern design maximizes Vantra Trailer durability.

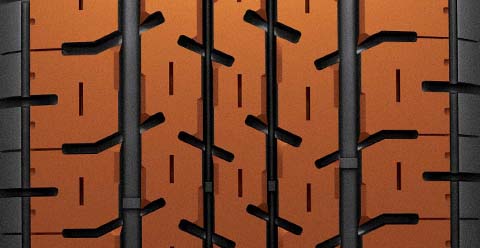

High stiffness pattern block

Pattern block ratio design optimized for high-load conditions.

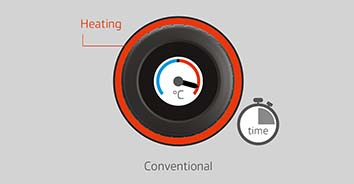

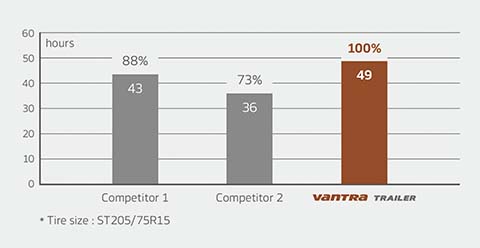

Performance test result

Optimized curing temperature helps improve aging durability performance.

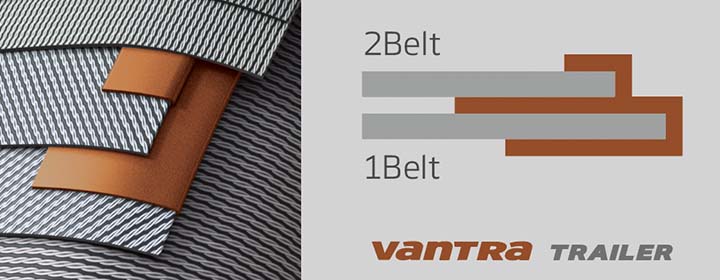

Belt edge tape

Stronger binding between the belts ensures driving stability at high speeds, and the durable structure is designed to sustain vehicle loads.

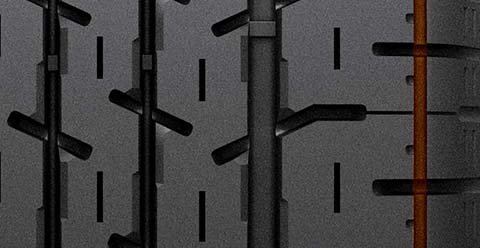

Decoupling groove

Optimized decoupling grooves helps prevent heat generation build-up in the shoulder, partly due to heavy loads.

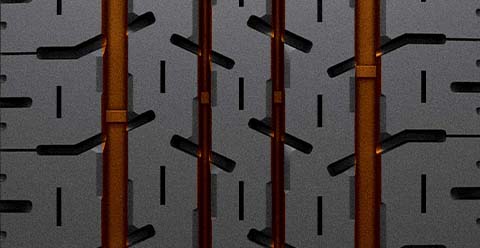

Groove stiffness

each groove design has high stiffness to sustain heavy loads.

Long Life

Superior carbon black compound and optimized footprint adapted for longer life.

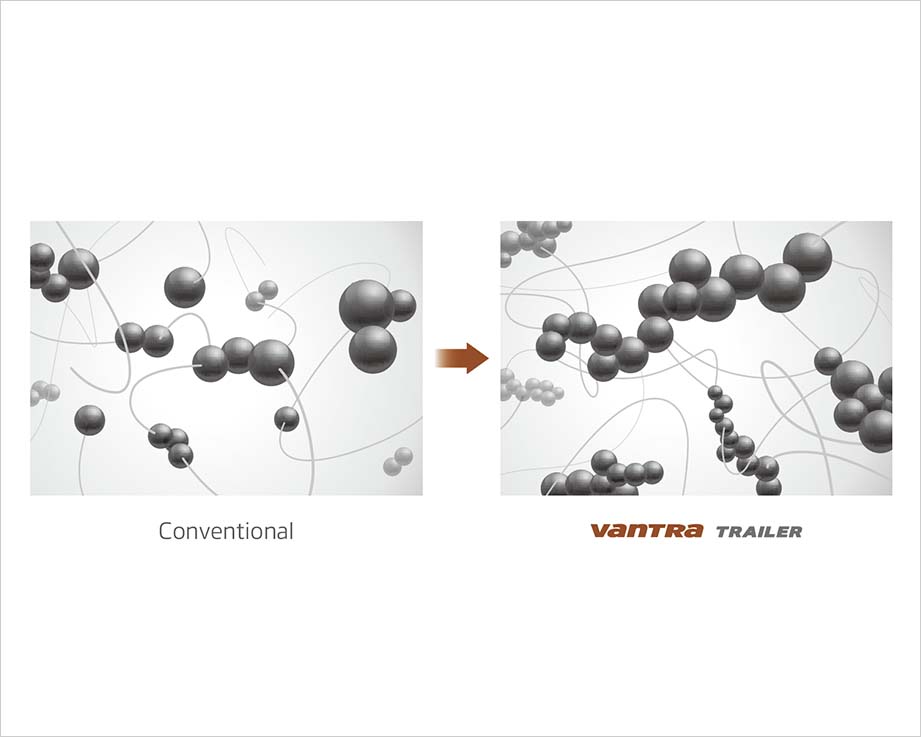

High structure and small particle size carbon

Super abrasion structure carbon black provides low rolling resistance, delivering high mileage to drivers.

Optimized footprint by simulation

Results in more evenly distributed stress, leads to longer tread life and uniform wear under heavy loads.

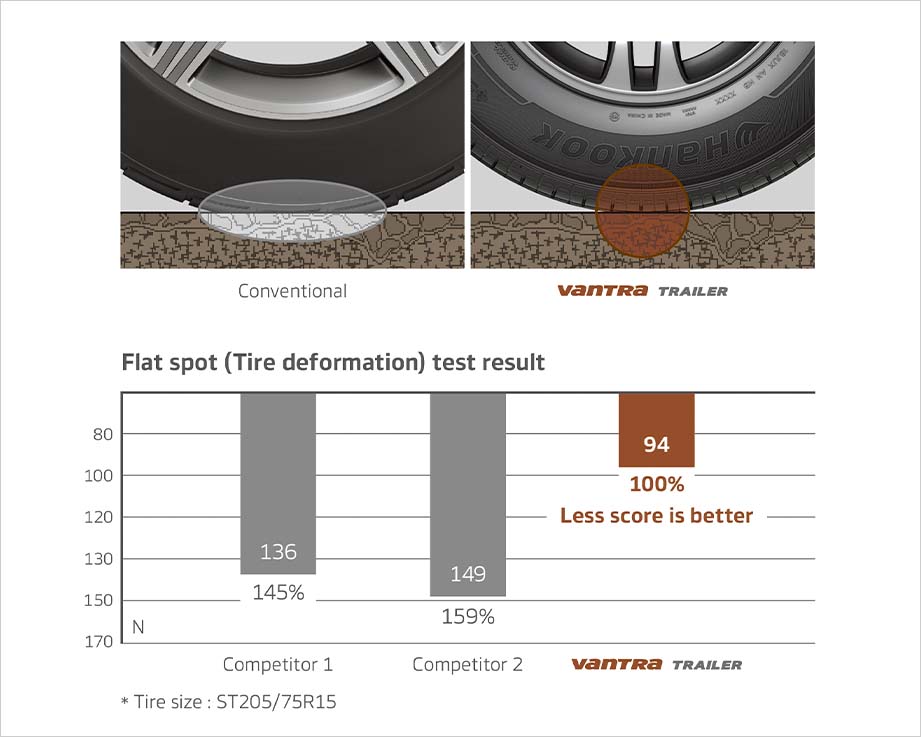

Performance Test Result

Optimized rubber matrix & tire structure help to maintain the stable shape of the tire for a long time.

  • Spec

    • ST175/80R13
      • Material Code 2021432
      • Tube Type / Tubeless L
      • Ply Rating 6
      • Measuring Rim 5.0JX13
      • Load Index 91/87N
      • Section Width(mm) 177
      • Section Width(inch) 7.0
      • Tread Width(inch) 5.5
      • Tread Depth(mm) 6.4
      • Tread Depth(32nds) 8
      • Overall Diameter(mm) 610
      • Overall Diameter(inch) 24.0
      • Tire Weight(lbs.) 21
      • M+S N
      • 3PMSF N
    • ST185/80R13
      • Material Code 2021433
      • Tube Type / Tubeless L
      • Ply Rating 6
      • Measuring Rim 5.0JX13
      • Load Index 94/89N
      • Section Width(mm) 184
      • Section Width(inch) 7.2
      • Tread Width(inch) 5.8
      • Tread Depth(mm) 6.4
      • Tread Depth(32nds) 8
      • Overall Diameter(mm) 626
      • Overall Diameter(inch) 24.6
      • Tire Weight(lbs.) 22
      • M+S N
      • 3PMSF N
    • ST205/75R14
      • Material Code 2021434
      • Tube Type / Tubeless L
      • Ply Rating 8
      • Measuring Rim 5.5JX14
      • Load Index 105/101N
      • Section Width(mm) 203
      • Section Width(inch) 8.0
      • Tread Width(inch) 6.5
      • Tread Depth(mm) 6.4
      • Tread Depth(32nds) 8
      • Overall Diameter(mm) 664
      • Overall Diameter(inch) 26.1
      • Tire Weight(lbs.) 28
      • M+S N
      • 3PMSF N
    • ST205/75R15
      • Material Code 2021436
      • Tube Type / Tubeless L
      • Ply Rating 8
      • Load Index 107/102N
      • Section Width(mm) 203
      • Section Width(inch) 8.0
      • Tread Width(inch) 6.5
      • Tread Depth(mm) 6.4
      • Tread Depth(32nds) 8
      • Static Loaded Radius(inch) 0.0
      • Overall Diameter(mm) 689
      • Overall Diameter(inch) 27.1
      • Tire Weight(lbs.) 29
      • M+S N
      • 3PMSF N
    • ST215/75R14
      • Material Code 2021435
      • Tube Type / Tubeless L
      • Ply Rating 8
      • Measuring Rim 6.0JX14
      • Load Index 108/103N
      • Section Width(mm) 216
      • Section Width(inch) 8.5
      • Tread Width(inch) 6.8
      • Tread Depth(mm) 6.4
      • Tread Depth(32nds) 8
      • Overall Diameter(mm) 678
      • Overall Diameter(inch) 26.7
      • Tire Weight(lbs.) 30
      • M+S N
      • 3PMSF N
    • ST225/75R15
      • Material Code 2021437
      • Tube Type / Tubeless L
      • Ply Rating 10
      • Measuring Rim 6.0JX15
      • Load Index 117/112N
      • Section Width(mm) 225
      • Section Width(inch) 8.9
      • Tread Width(inch) 7.1
      • Tread Depth(mm) 6.4
      • Tread Depth(32nds) 8
      • Overall Diameter(mm) 719
      • Overall Diameter(inch) 28.3
      • Tire Weight(lbs.) 34
      • M+S N
      • 3PMSF N
    • ST235/80R16
      • Material Code 2021438
      • Tube Type / Tubeless L
      • Ply Rating 10
      • Measuring Rim 6.5JX16
      • Load Index 123/119N
      • Section Width(mm) 239
      • Section Width(inch) 9.4
      • Tread Width(inch) 7.4
      • Tread Depth(mm) 6.4
      • Tread Depth(32nds) 8
      • Static Loaded Radius(inch) 0.0
      • Overall Diameter(mm) 782
      • Overall Diameter(inch) 30.8
      • Tire Weight(lbs.) 44
      • M+S N
      • 3PMSF N
    • ST235/85R16
      • Material Code 2021439
      • Tube Type / Tubeless L
      • Ply Rating 10
      • Measuring Rim 6.5JX16
      • Load Index 125/121N
      • Section Width(mm) 239
      • Section Width(inch) 9.4
      • Tread Width(inch) 7.4
      • Tread Depth(mm) 6.4
      • Tread Depth(32nds) 8
      • Static Loaded Radius(inch) 0.0
      • Overall Diameter(mm) 806
      • Overall Diameter(inch) 31.7
      • Tire Weight(lbs.) 46
      • M+S N
      • 3PMSF N
    • ST255/85R16
      • Material Code 2021440
      • Tube Type / Tubeless L
      • Ply Rating 10
      • Measuring Rim 7.0JX16
      • Load Index 129/125N
      • Section Width(mm) 260
      • Section Width(inch) 10.2
      • Tread Width(inch) 8.0
      • Tread Depth(mm) 6.4
      • Tread Depth(32nds) 8
      • Overall Diameter(mm) 840
      • Overall Diameter(inch) 33.1
      • Tire Weight(lbs.) 51
      • M+S N
      • 3PMSF N
