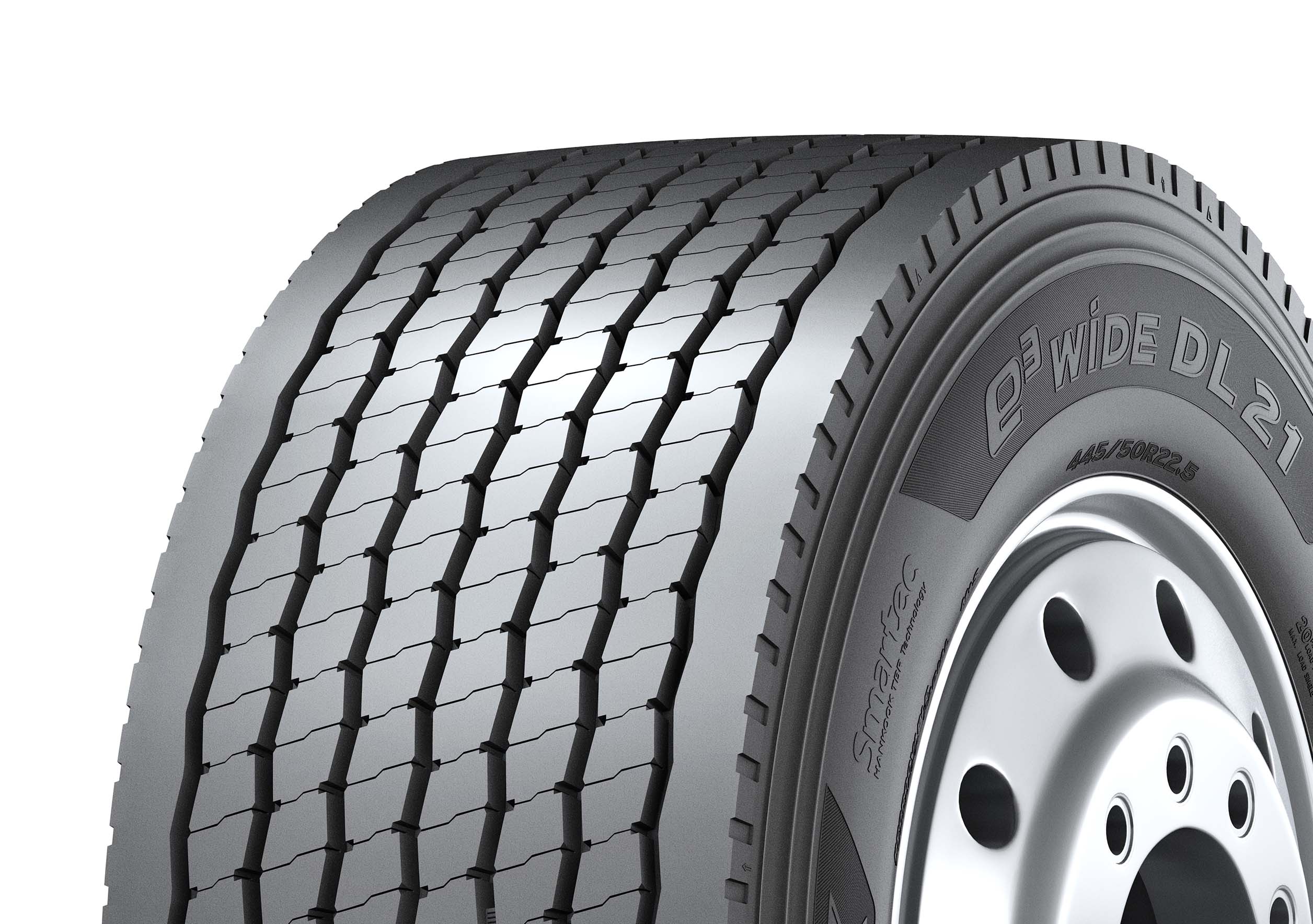

e3 Wide DL21
Long haul wide-base drive tire with long mileage and fuel efficiency
-
Long Haul
.svg){kind=logo}
Long haul wide base drive tire with long mileage and fuel efficiency
/m_Concept%20KV(export).jpg)
High mileage and good traction with optimized pattern design and 3-Dimensional Sipe technology
Seven main grooves
Strengthened shoulder rib reduces deformation of outer groove and improves mileage.
/Contents_B_2-3(export).jpg)
Zigzag groove
Centre zigzag groove aids in stone rejection.
/Contents_B_2-2(export).jpg)
Closed shoulder
Allows for smooth wear, fuel efficiency and increased mileage.
/Contents_B_2-1(export).jpg)
/m_Contents_B_KV-1(export).jpg)
High mileage and good traction with optimized pattern design and 3-Dimensional Sipe technology
/m_Contents_C_KV(export).jpg)
3-Dimensional Sipe
Delivers excellent mileage and traction performance with reduced irregular wear which enhances fuel efficiency.
/Contents_C_1-1(export).jpg)
Optimized directional microsipes
Parallel to the back of the groove, the best angle for limiting irregular wear until the end of tread-life.
/Contents_C_1-2(export).jpg)
-
New Spiral-Coil Technology
Unique structure provides optimized foot print and strengthened casing stability with Spiral-Coil Technology.
/Contents_F_1-1(export)1.jpg)
Unique structure provides optimized foot print and strengthened casing stability with Spiral-Coil Technology.
-
Stabilized footprint
Stabilized flat footprint reduces irregular wear.
/Contents_F_1-3(export).jpg)
Stabilized flat footprint reduces irregular wear.
-
Reduced weight, increased energy efficiency
Weight savings around 400Ibs per tractor. Rolling resistance reduced by 33% compared to duals.
/Contents_F_1-2(export).jpg)
Weight savings around 400Ibs per tractor. Rolling resistance reduced by 33% compared to duals.
Test Result
/Contents_G_1-1(export)%20(1).jpg)
Mileage
Mileage improved 2% compared to its predecessor.
/Contents_G_1-2(export)%20(1).jpg)
Rolling Resistance
Rolling resistance improved 10% compared to its predecessor.
-
Specs
- 22.5”
-
445/50R22.5
- Material Code 3003449
- Tube Type / Tubeless L
- Ply Rating 20
- Measuring Rim 14X22.5
- Section Width(mm) 442
- Section Width(inch) 17.4
- Tread Width(inch) 15.7
- Tread Depth(mm) 19.4
- Tread Depth(32nds) 24
- Static Loaded Radius(inch) 18.5
- Overall Diameter(mm) 1024
- Overall Diameter(inch) 40.3
- Tire Weight(lbs.) 184
- M+S Y
- 3PMSF N
- Origin Korea
