Smart Work AM09

On & Off / All Position

M+S 3PMSF

Application
  • On & Off Road
Dump Recommended Available
0Recently viewed products

Tough On-Site, Strong on the Road!

Hankook Tire & Technology-Tires-Smart-Smart Work-AM09-Tough On-Site, Strong on the Road!

Pattern Design

Zigzag traction grooves and optimized multi-angular kerf

Improves traction and braking performance by expanding the point of intersection through 4 zigzag grooves and an optimized unique sipe design without chipping or cutting .

Polygonal block and step edge groove

Improved braking performance through maximizing the edge effect. → Enhances handling.

Wide tread width

A wide tread profile provides stability and uniformity which reduces distortion, delivering outstanding handling performance and improved tread life.

  • Conventional
  • AM09

Closed shoulder design and shoulder lug

A closed shoulder design is adopted for improved driving stability and an even wear shoulder lug helps to reduce tread temperature.

  • Closed Shoulder Design
  • Shoulder Lug

Stone ejector

Stone ejectors ensure grooves are kept clear at all times by using an additional rubber material to force unwanted debris out

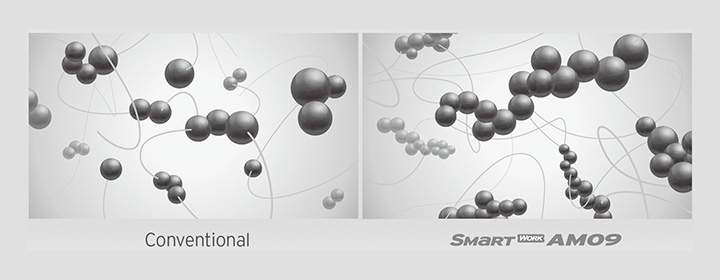

High structure carbon black compound

Improved heat generation is achieved by applying a high structure carbon black compound which increases fuel efficiency and durability

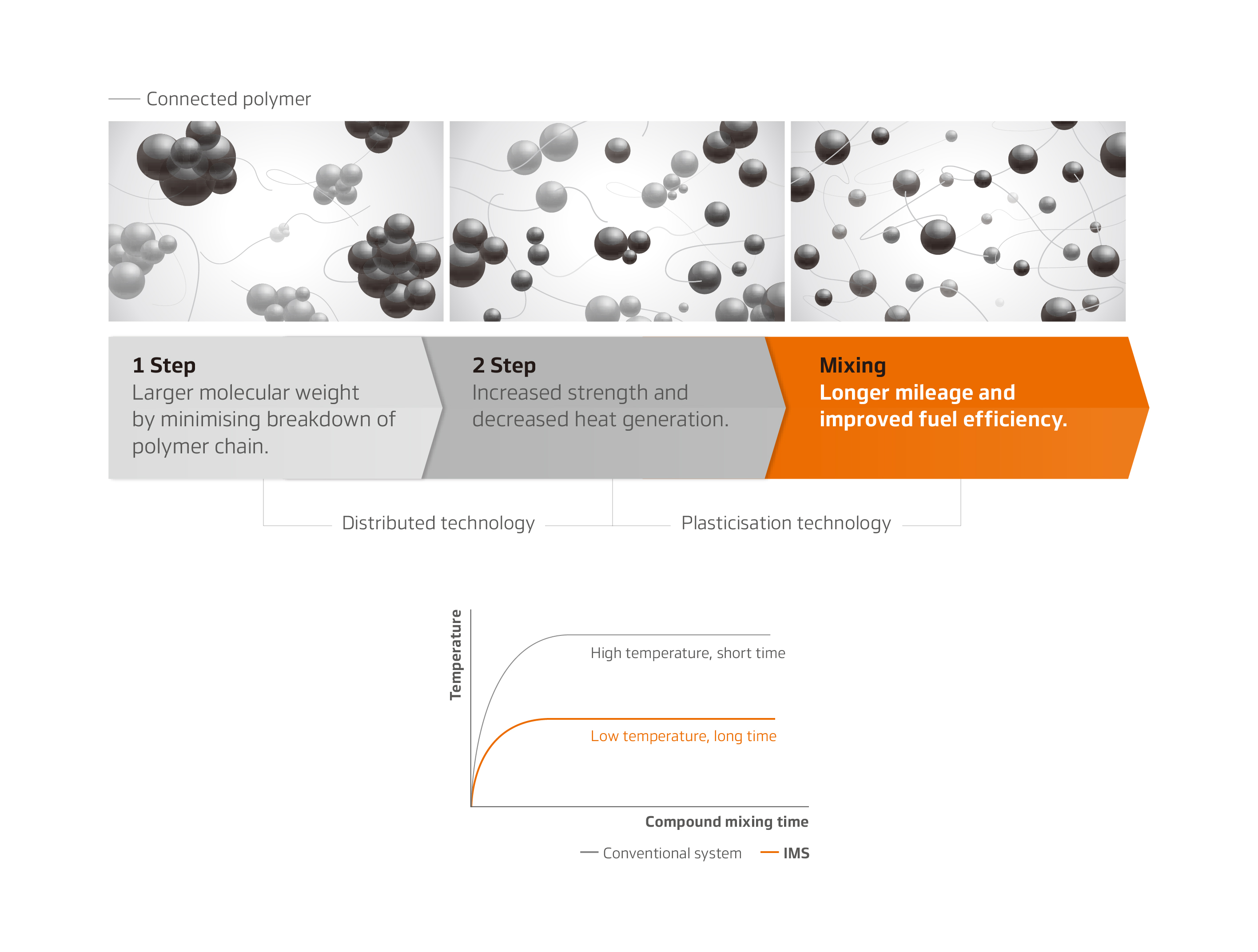

  • Innovative Mixing System (IMS)

    Innovative Mixing System (IMS) minimizes the breakdown and oxidation of polymer chains and has a higher dispersion degree of carbon black. The effects of IMS help to strengthen the bonding force between the carbon black and rubber to ensure longer mileage and to lower the heat generation of compounds for improved fuel efficiency.

    Innovative Mixing System (IMS) minimizes the breakdown and oxidation of polymer chains and has a higher dispersion degree of carbon black. The effects of IMS help to strengthen the bonding force between the carbon black and rubber to ensure longer mileage and to lower the heat generation of compounds for improved fuel efficiency.

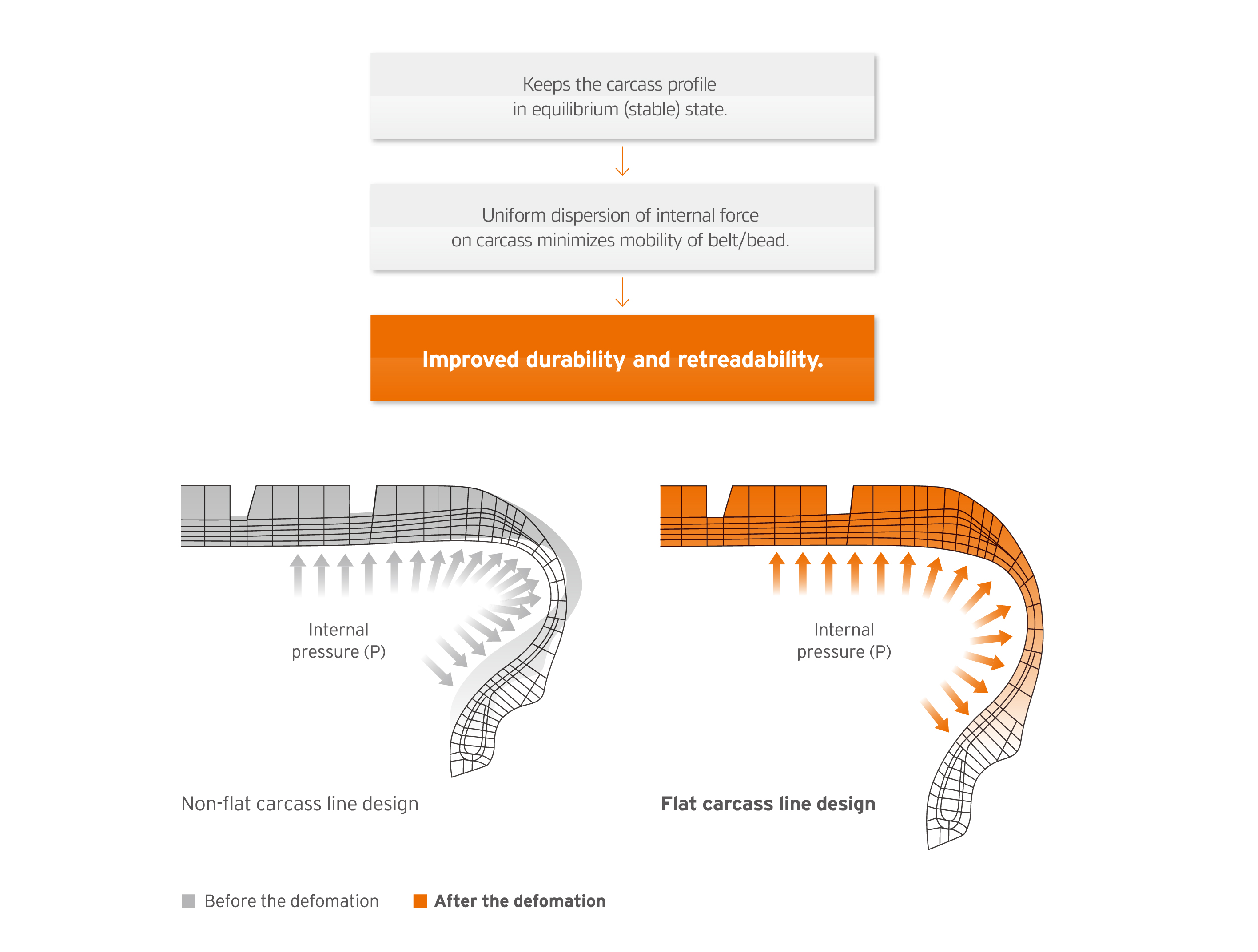

  • Stiffness Control Contour Theory Technology
    (SCCT Technology)

    SCCT Technology is designed to reduce profile deformation. If the carcass profile is not kept constant, the internal force on the carcass will be concentrated on a specific point, belt edge or carcass turn up edge. In contrast, SCCT Technology controls the dispersion of internal force for better durability.

    SCCT Technology is designed to reduce profile deformation. If the carcass profile is not kept constant, the internal force on the carcass will be concentrated on a specific point, belt edge or carcass turn up edge. In contrast, SCCT Technology controls the dispersion of internal force for better durability.

  • Tire Structure

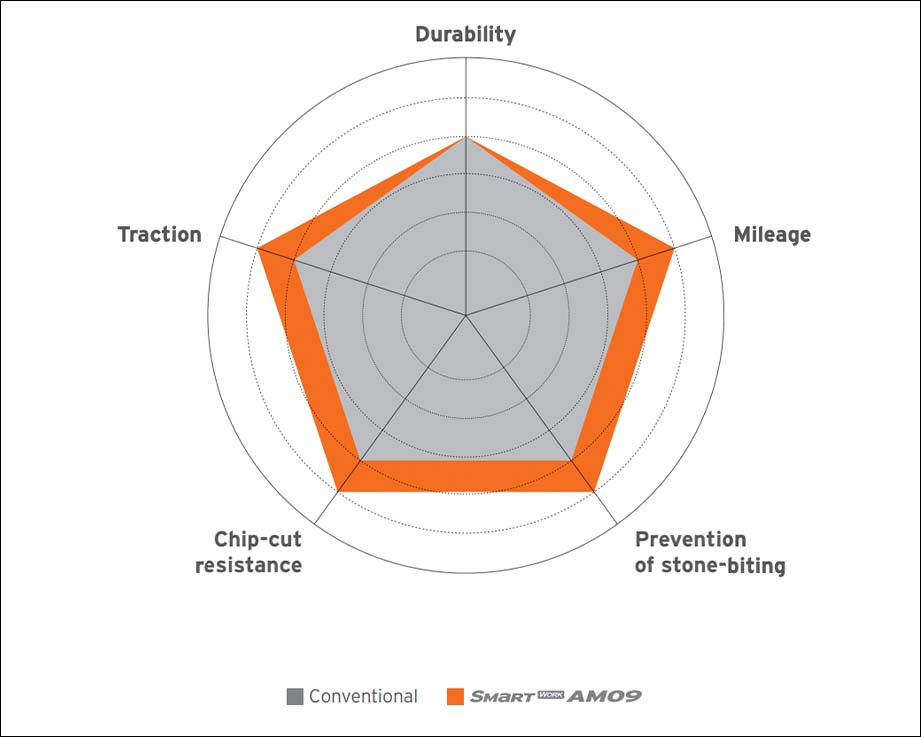

Test Result

Key performance

Improved performance compared to predecessor tire.

Key performance

85% - Competitor, 100% - Conventional , 105 % - Smartwork AM09

  • Spec

    • 10R22.5
      • Material Code 3002577
      • TT/TL L
      • Ply Rating 16
      • Measuring Rim 7.50X22.5
      • Section Width(inch) 10.0
      • Tread Width(inch) 7.5
      • Tread Depth(32nds) 18
      • Static Loaded Radius(inch) 18.9
      • Overall Diameter(inch) 40.3
      • Tire Weight(lbs.) 98
      • M+S Y
      • 3PMSF Y
      • Max Speed (mph) 65
    • 11R22.5
      • Material Code 3002703
      • TT/TL L
      • Ply Rating 16
      • Measuring Rim 8.25X22.5
      • Section Width(inch) 11.3
      • Tread Width(inch) 9.1
      • Tread Depth(32nds) 24
      • Static Loaded Radius(inch) 19.5
      • Overall Diameter(inch) 41.7
      • Tire Weight(lbs.) 122
      • M+S Y
      • 3PMSF Y
      • Max Speed (mph) 68
    • 12R22.5
      • Material Code 3002698
      • TT/TL L
      • Ply Rating 16
      • Measuring Rim 9.0X22.5
      • Section Width(inch) 12.0
      • Tread Width(inch) 9.2
      • Tread Depth(32nds) 24
      • Static Loaded Radius(inch) 20.0
      • Overall Diameter(inch) 42.9
      • Tire Weight(lbs.) 142
      • M+S Y
      • 3PMSF Y
      • Max Speed (mph) 65
    • 255/70R22.5
      • Material Code 3003804
      • TT/TL L
      • Ply Rating 16
      • Measuring Rim 7.5X22.5
      • Section Width(inch) 9.9
      • Tread Width(inch) 8.3
      • Tread Depth(32nds) 19
      • Static Loaded Radius(inch) 16.9
      • Overall Diameter(inch) 36.7
      • Tire Weight(lbs.) 95
      • M+S Y
      • 3PMSF N
      • Max Speed (mph) 75
    • 315/80R22.5
      • Material Code 3002789
      • TT/TL L
      • Ply Rating 20
      • Measuring Rim 9.0X22.5
      • Section Width(inch) 12.5
      • Tread Width(inch) 10.6
      • Tread Depth(32nds) 22
      • Static Loaded Radius(inch) 19.6
      • Overall Diameter(inch) 42.6
      • Tire Weight(lbs.) 151
      • M+S Y
      • 3PMSF Y
      • Max Speed (mph) 68
