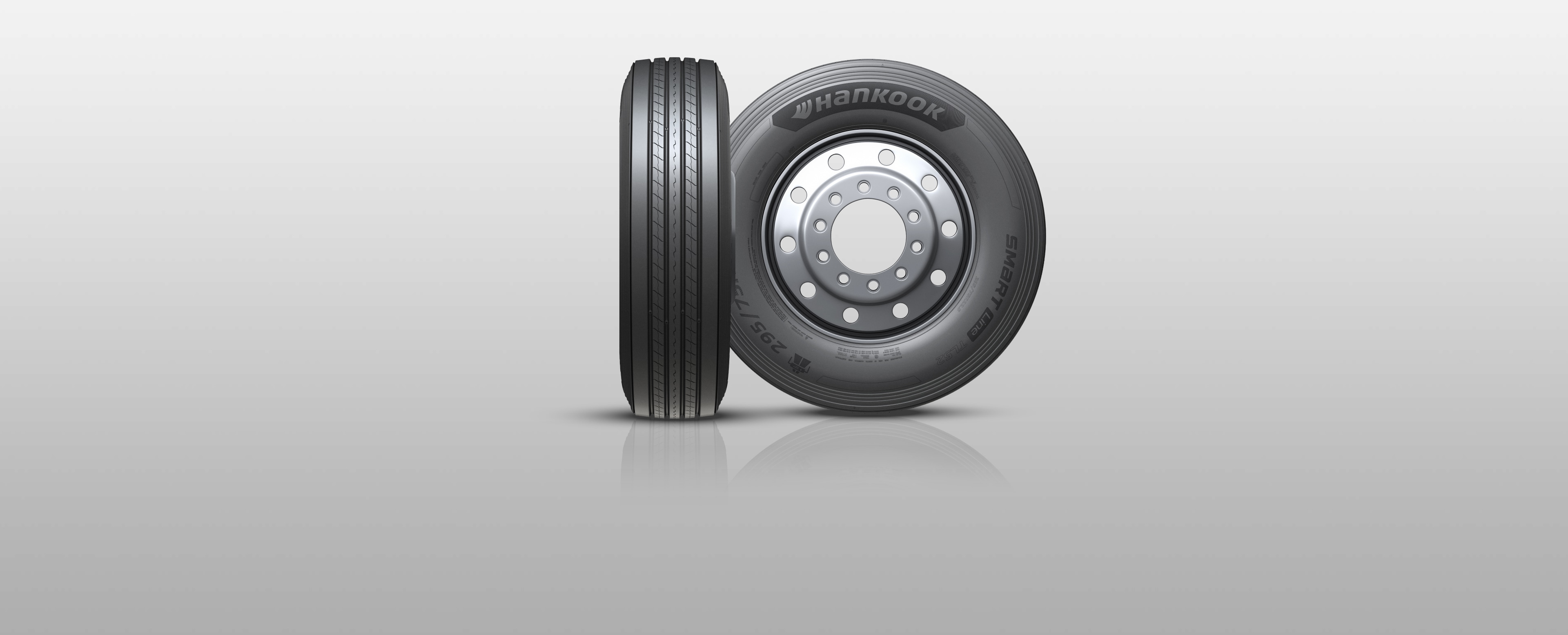

Smart Line TL52
The innovative long haul trailer design provides long mileage and offers low cost with a controlled driving experience.
-
Long Haul
The innovative long haul trailer design provides long mileage and offers low cost with a controlled driving experience.
(export).jpg)
(export).jpg)
_KV(export).jpg)

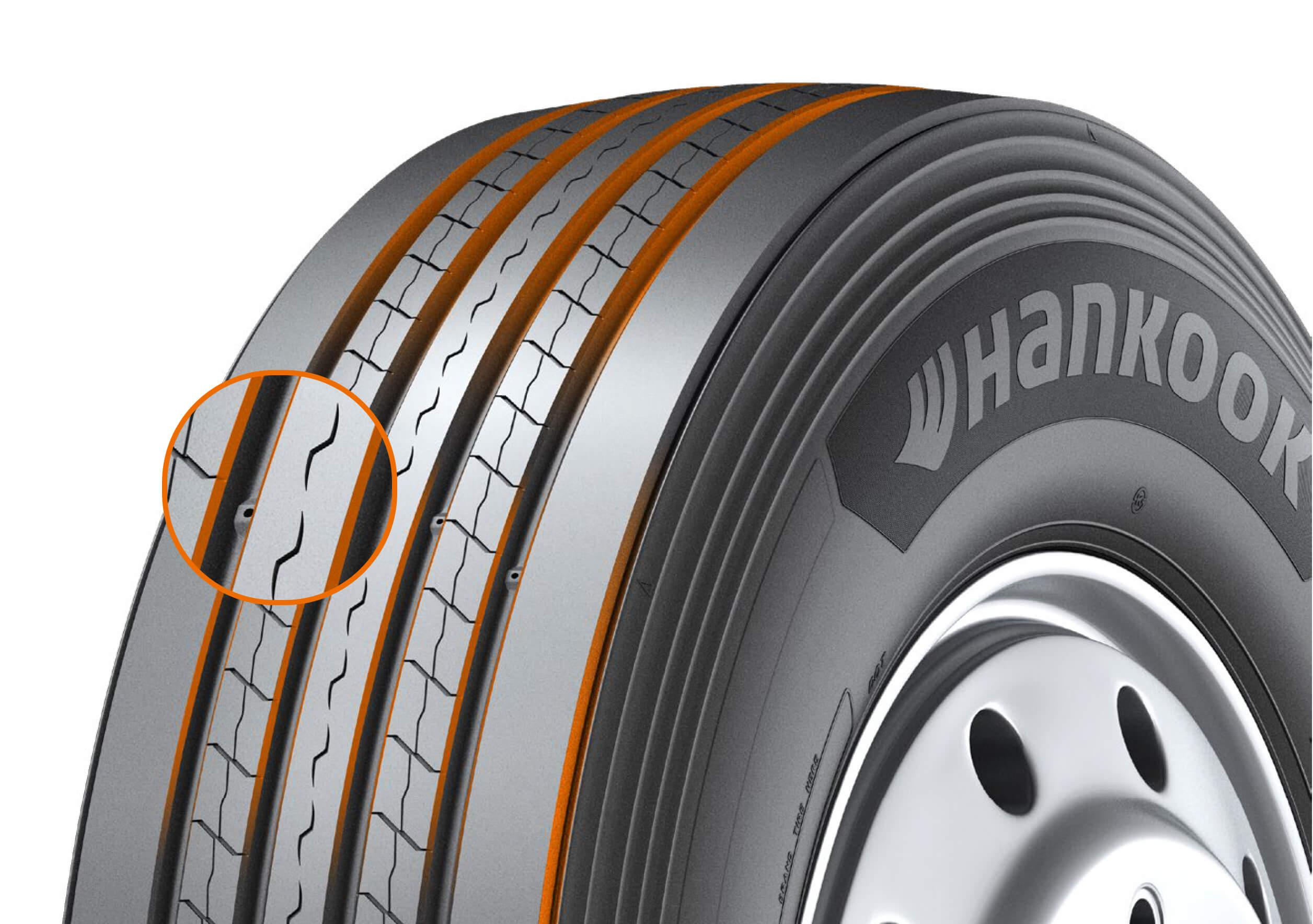

Optimized Trailer Design for Enhanced Performance
Optimized Design

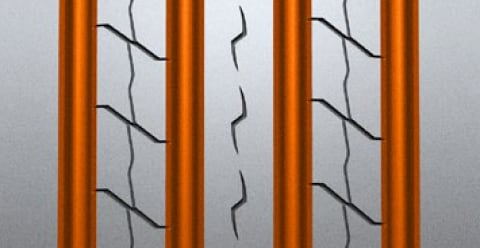

The linear 4-groove pattern offers straight drivability in all conditions. Enhanced shoulder rib improves stability on the road.
-1(export).jpg)

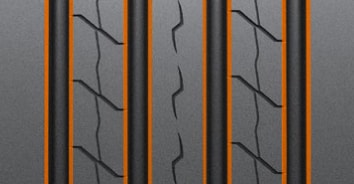

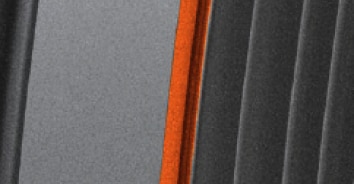

Taper
Smooth lines at the edge of the grooves provide optimal footprint to help increase fuel efficiency.
-1(export)1.jpg)
-2(export)1.jpg)
Side Decoupling Groove
Smooth lines at the edge of the grooves provide optimal footprint to help increase fuel efficiency.
-1(export)1.jpg)
-2(export)1.jpg)
-

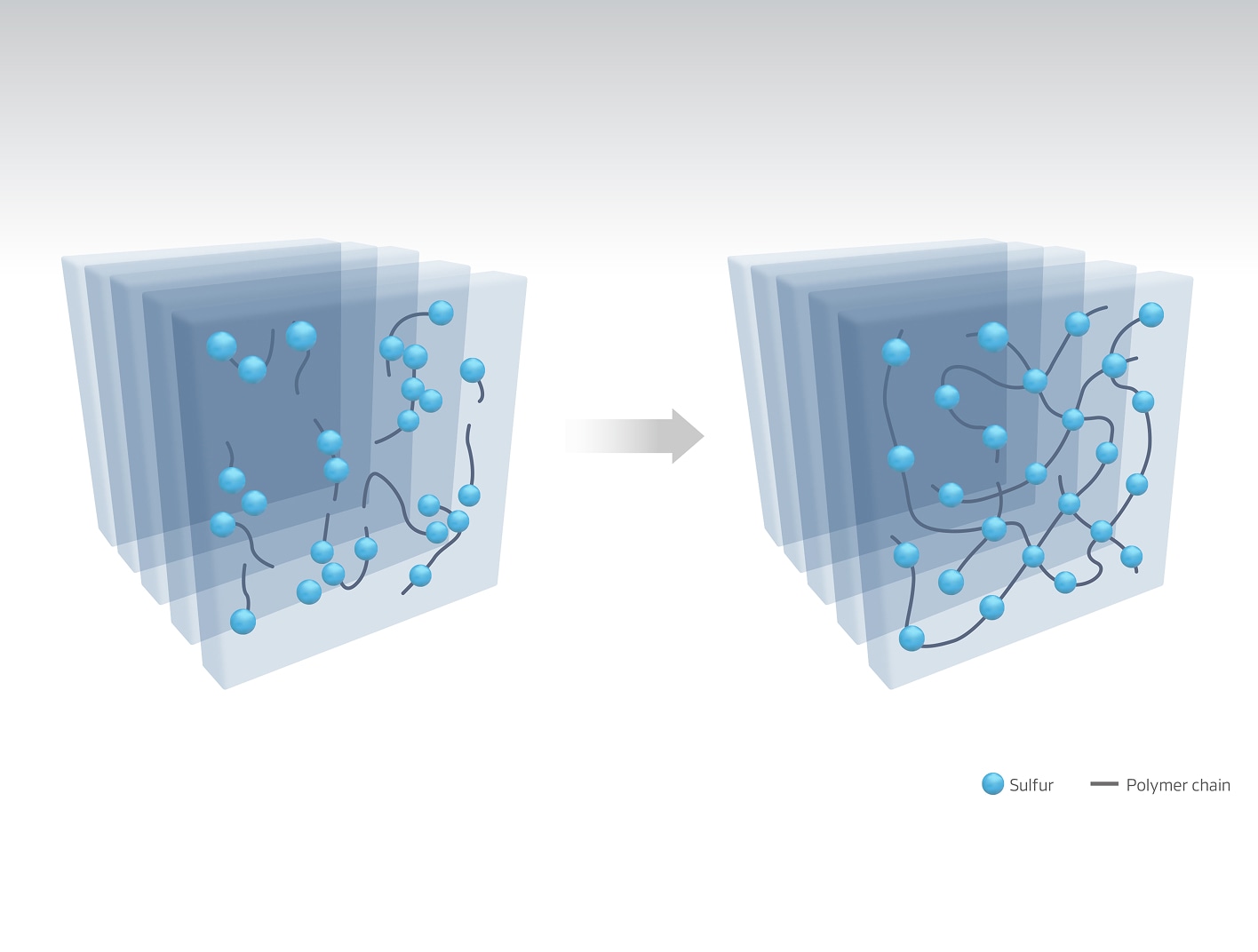

Innovative Compound Mixing System (ICMS)
Innovative Compound Mixing System(ICMS) can lead to better compound reinforcement by minimizing polymer-chain scission and oxidative degradation, as well as achieving a higher degree of carbon-black dispersion. These effects help enhance tire rubber strength and minimize heat generation during operation.
Therefore, ICMS enables enhanced mileage and improved fuel efficiency.(export).jpg)
Innovative Compound Mixing System(ICMS) can lead to better compound reinforcement by minimizing polymer-chain scission and oxidative degradation, as well as achieving a higher degree of carbon-black dispersion. These effects help enhance tire rubber strength and minimize heat generation during operation.
Therefore, ICMS enables enhanced mileage and improved fuel efficiency. -

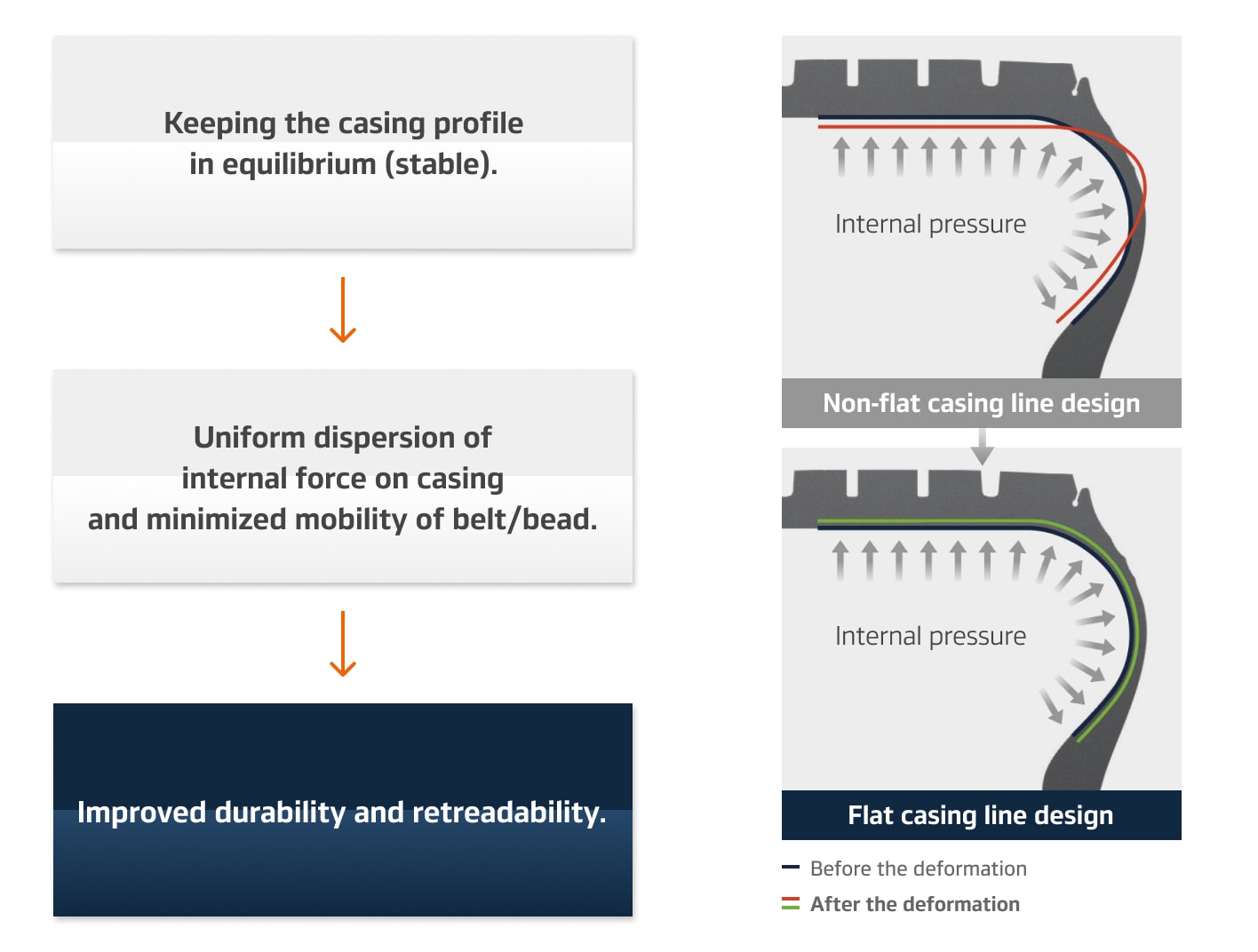

Stiffness Control Contour Technology (SCCT)
SCCT is designed for constant profile deformation. If the casing profile cannot be kept constant, the internal force on the casing will be concentrated on a specific point (belt edge or turned up casing edge). In contrast, SCCT controls the dispersion of internal forces for better durability.
SCCT allows Hankook Tire to develop tires by balancing optimum stiffness with contact shape. The benefits of this technology are improved performance, safety, cornering, braking and durability.(export).jpg)
SCCT is designed for constant profile deformation. If the casing profile cannot be kept constant, the internal force on the casing will be concentrated on a specific point (belt edge or turned up casing edge). In contrast, SCCT controls the dispersion of internal forces for better durability.
SCCT allows Hankook Tire to develop tires by balancing optimum stiffness with contact shape. The benefits of this technology are improved performance, safety, cornering, braking and durability.
-
Spec
- 22.5”
-
11R22.5
- Material Code 3004167
- TT/TL L
- Ply Rating 14
- Measuring Rim 8.25X22.5
- Section Width(inch) 11.2
- Tread Width(inch) 8.4
- Tread Depth(32nds) 12
- Static Loaded Radius(inch) 0.0
- Overall Diameter(inch) 41.1
- Tire Weight(lbs.) 103
- M+S N
- 3PMSF N
-
295/75R22.5
- Material Code 3004132
- TT/TL L
- Ply Rating 14
- Measuring Rim 8.25X22.5
- Section Width(inch) 11.4
- Tread Width(inch) 8.8
- Tread Depth(32nds) 12
- Overall Diameter(inch) 39.7
- Tire Weight(lbs.) 99
- M+S N
- 3PMSF N
