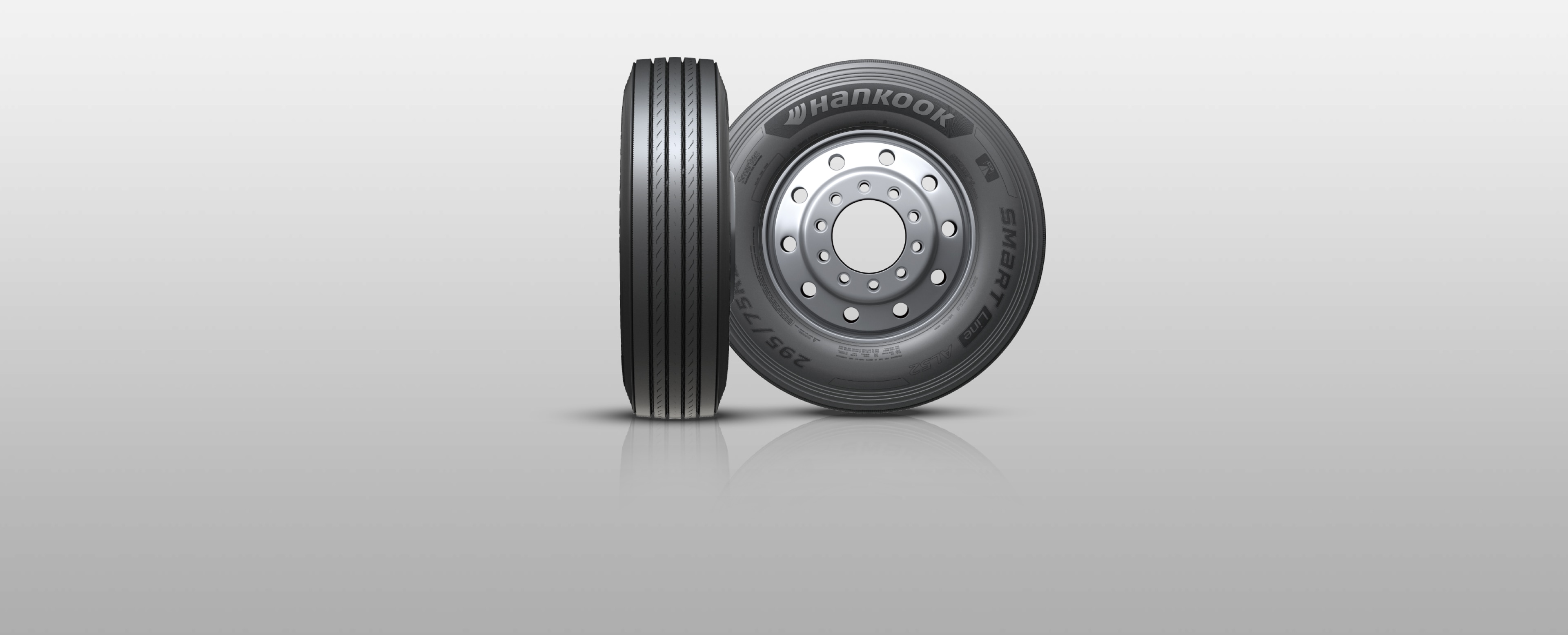

Smart Line AL52
Longer mileage with high fuel efficiency for long-haul use
Application
-
Long Haul
Tractor/Trailer, Special Trailer
Recommended
/tt/steer(all)-tractor-trailer-1.svg){kind=icon}
/tt/steer(all)-tractor-trailer-2.svg){kind=icon}
Longer Mileage with high Fuel Efficiency
(export).jpg)
_KV(export).jpg)

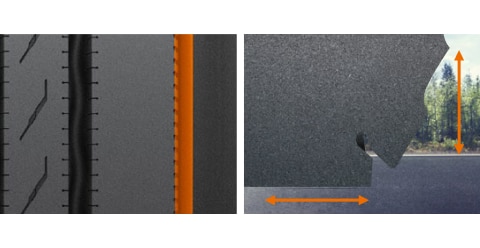

Multi-round-edge sipes for reduced irregular wear.
The round shape sipes at the groove edge mitigate tearing and cracking, while resisting irregular wear and providing high-mileage performance.
0129.jpg)

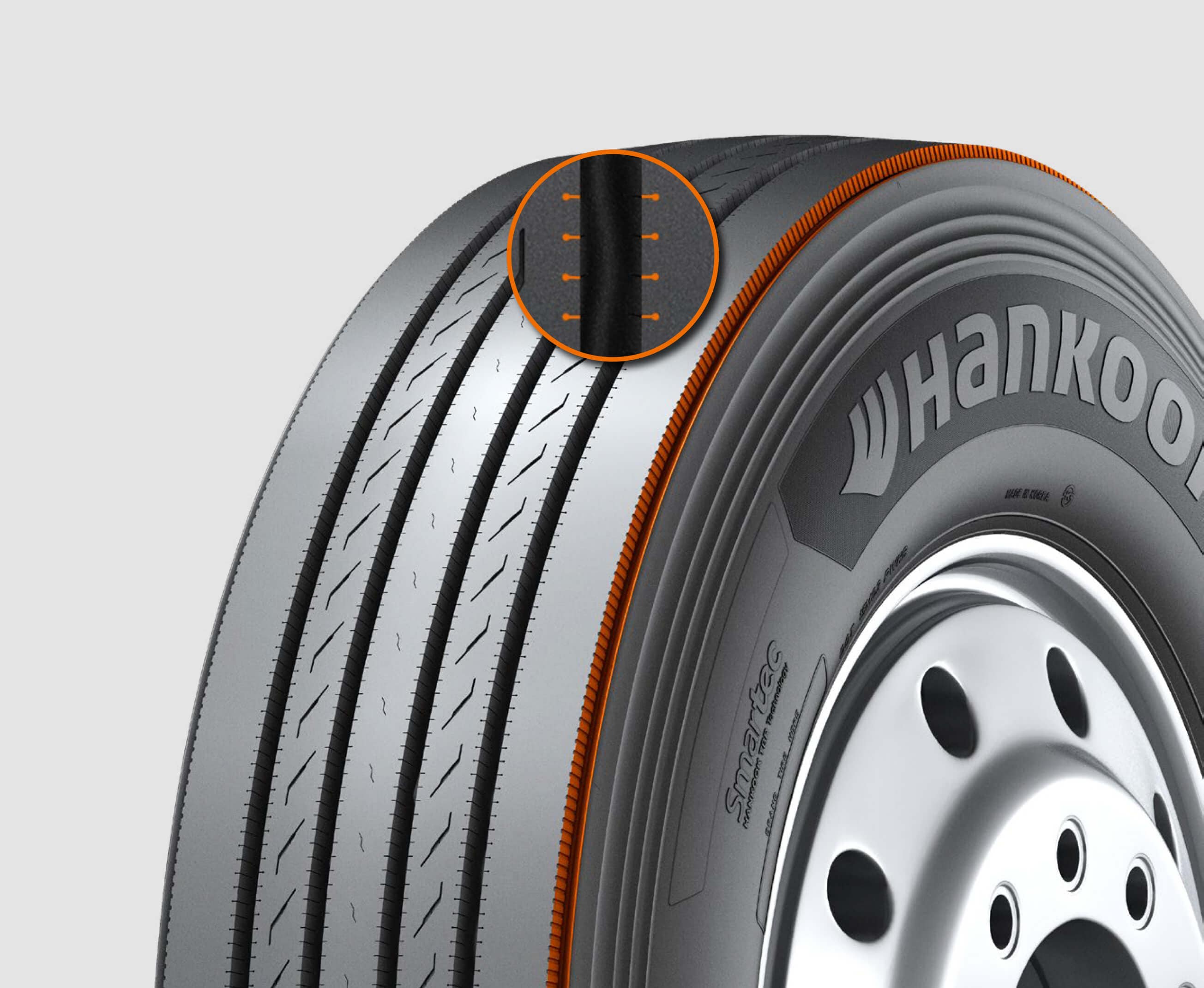

Side Decoupling Groove for Even Wear
Mitigate uneven wear by reducing movement between sidewall and shoulder.
(export).jpg)
Tread Compound Technology
LRR & Mileage Compound
New tread compound provides increased fuel efficiency and mileage performance.

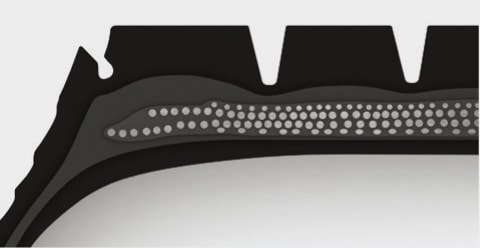

Optimized Tread Gauge design
Minimizes energy loss and enhances fuel efficiency due to the decrease of heat generation.
(export).jpg)
-

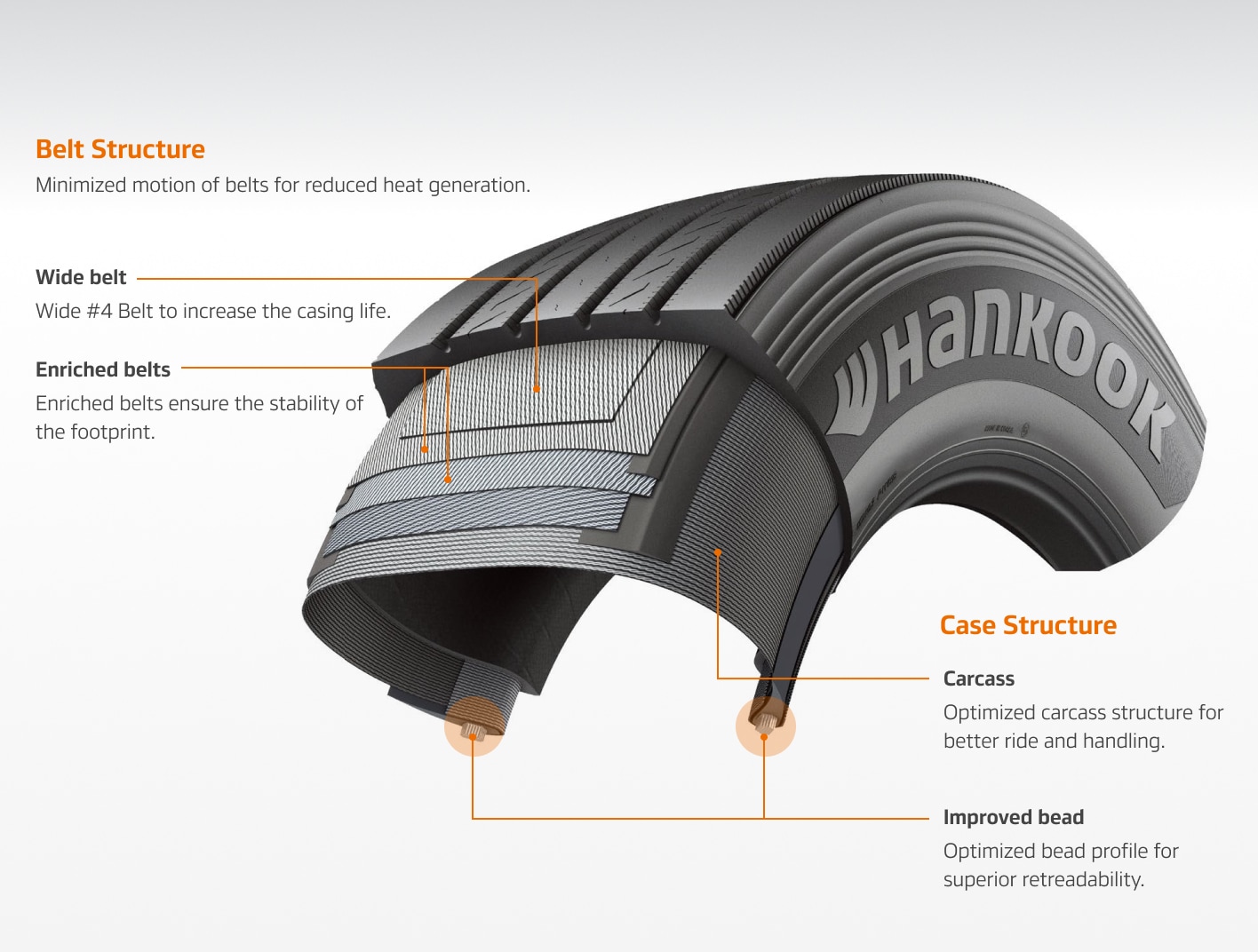

Tire Structure
(export).jpg)
-

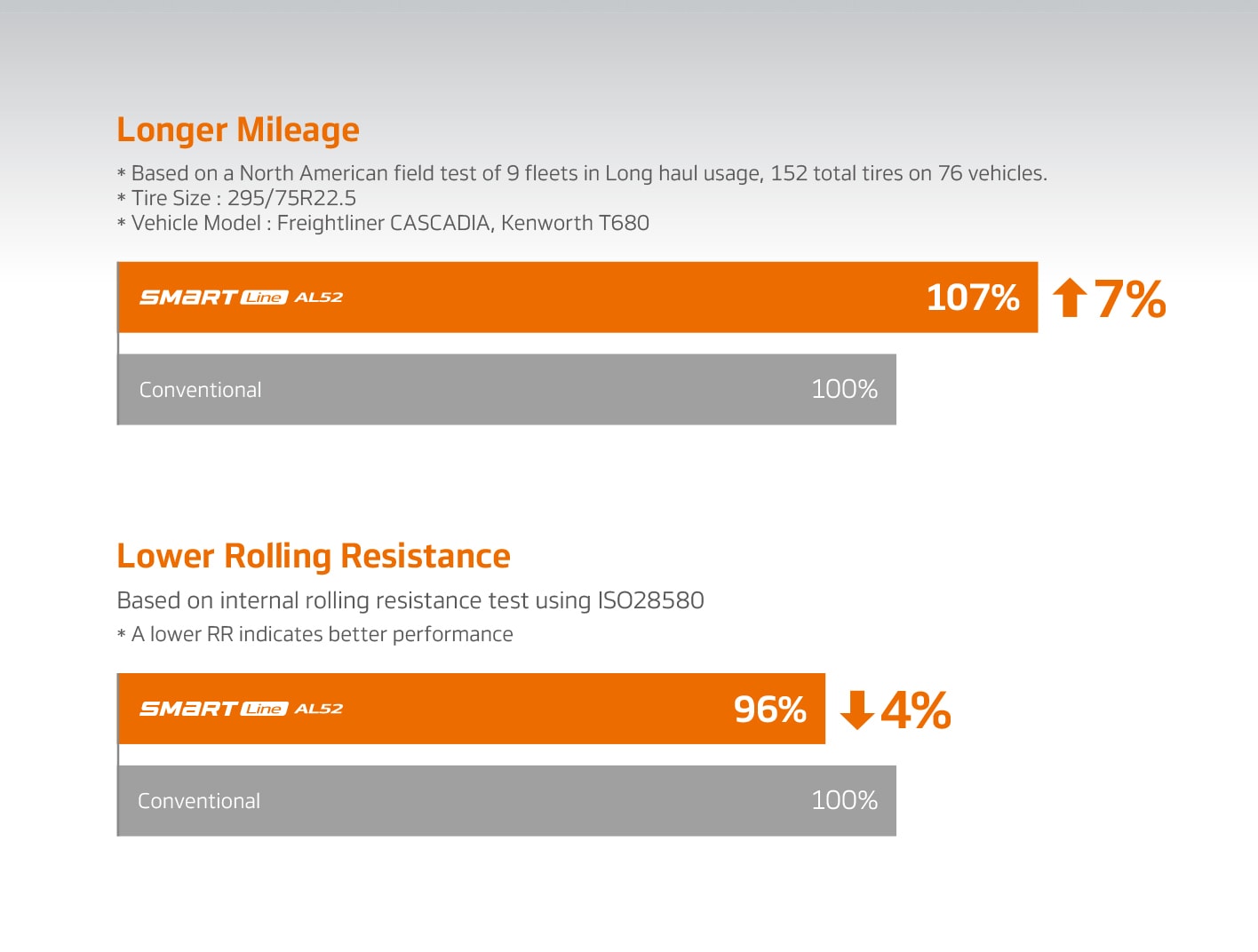

Technical Product Comparison
Improved Rolling Resistance for Long-Haul
(export)0129.jpg)
Improved Rolling Resistance for Long-Haul
-
Spec
- 22.5”
- 24.5”
-
11R22.5
- Material Code 3004086
- TT/TL L
- Ply Rating 14
- Measuring Rim 8.25X22.5
- Section Width(inch) 11.2
- Tread Width(inch) 8.1
- Tread Depth(32nds) 19
- Static Loaded Radius(inch) 19.4
- Overall Diameter(inch) 41.3
- Tire Weight(lbs.) 119
- M+S N
- 3PMSF N
-
11R22.5
- Material Code 3004087
- TT/TL L
- Ply Rating 16
- Measuring Rim 8.25X22.5
- Section Width(inch) 11.2
- Tread Width(inch) 8.1
- Tread Depth(32nds) 19
- Static Loaded Radius(inch) 19.4
- Overall Diameter(inch) 41.3
- Tire Weight(lbs.) 119
- M+S N
- 3PMSF N
-
11R24.5
- Material Code 3004089
- TT/TL L
- Ply Rating 16
- Measuring Rim 8.25X24.5
- Section Width(inch) 11.3
- Tread Width(inch) 8.1
- Tread Depth(32nds) 19
- Static Loaded Radius(inch) 0.0
- Overall Diameter(inch) 43.4
- Tire Weight(lbs.) 121
- M+S N
- 3PMSF N
-
11R24.5
- Material Code 3004088
- TT/TL L
- Ply Rating 14
- Measuring Rim 8.25X24.5
- Section Width(inch) 11.3
- Tread Width(inch) 8.1
- Tread Depth(32nds) 19
- Static Loaded Radius(inch) 0.0
- Overall Diameter(inch) 43.4
- Tire Weight(lbs.) 121
- M+S N
- 3PMSF N
-
285/75R24.5
- Material Code 3004090
- TT/TL L
- Ply Rating 14
- Measuring Rim 8.25×24.5
- Section Width(inch) 11.0
- Tread Width(inch) 8.1
- Tread Depth(32nds) 19
- Static Loaded Radius(inch) 19.1
- Overall Diameter(inch) 41.4
- Tire Weight(lbs.) 115
- M+S N
- 3PMSF N
-
285/75R24.5
- Material Code 3004091
- TT/TL L
- Ply Rating 16
- Measuring Rim 8.25×24.5
- Section Width(inch) 11.0
- Tread Width(inch) 8.1
- Tread Depth(32nds) 19
- Static Loaded Radius(inch) 19.1
- Overall Diameter(inch) 41.4
- Tire Weight(lbs.) 115
- M+S N
- 3PMSF N
-
295/75R22.5
- Material Code 3003939
- TT/TL L
- Ply Rating 16
- Measuring Rim 8.25X22.5
- Section Width(inch) 11.5
- Tread Width(inch) 8.5
- Tread Depth(32nds) 19
- Static Loaded Radius(inch) 18.7
- Overall Diameter(inch) 40.2
- Tire Weight(lbs.) 117
- M+S N
- 3PMSF N
