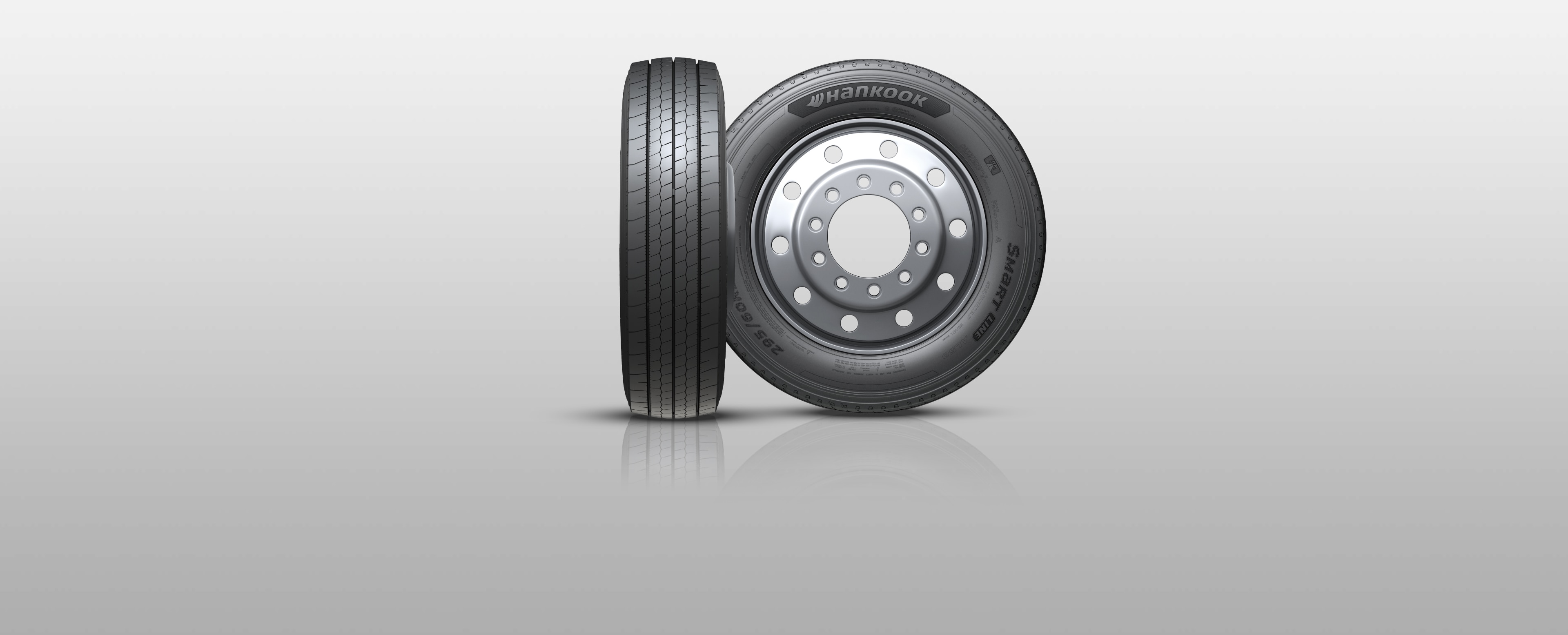

Smart Line AL50
All-position axle tire delivering excellent fuel efficiency with optimized grip performance for long haul use
-
Long Haul
/tt/us-en_al50/steer(all)-truck-1.svg){kind=icon}
All-position axle tire delivering excellent fuel efficiency with optimized grip performance for long haul use
(export)260331.jpg)
260331.jpg)

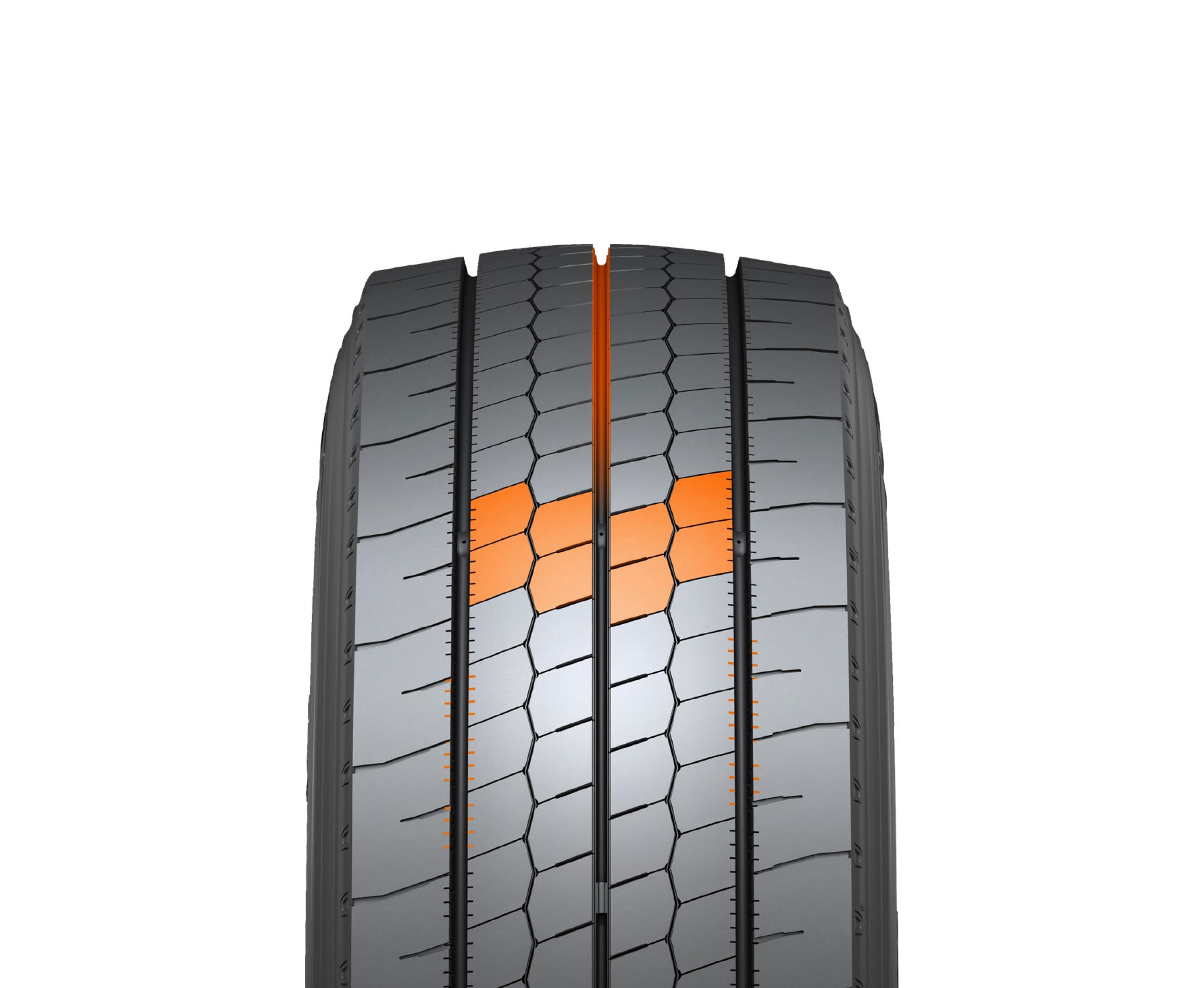

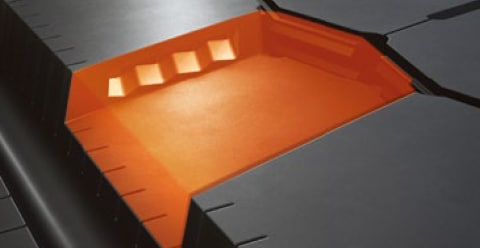

Stepped groove
Groove wall step features prevent block deformation and gives reinforcement between the tread blocks.
Irregular wear prevention sipe
Multiple sipes prevent irregular wear by dispersing stress applied to the groove edge.
Optimized block size
The wide tread block enhances the rigidity and improves grip, mileage and reduces the tire’s rolling resistance.
_2_1130.jpg)
3-dimensional sipe
Excellent mileage and traction throughout the entire life of the tire by reinforcing the interlocking between the tread blocks.
Controlled tearing and wearing
→ Helps reduce irregular wear.
Full depth sipe applied
→ Improves traction and grip throughout the entire life of the tire.
Hidden groove
At 70% wear, hidden grooves appear. These grooves improve wet grip and traction when the tire wears.
_1130.jpg)
Hidden Groove
Hankook premium technologies deliver high grip and mileage performance from the first to last millimeter of tire life. Our ‘no compromise’ development approach ensures that also a low rolling resistance is kept at all stages of wear, benefitting both your budget and the environment.

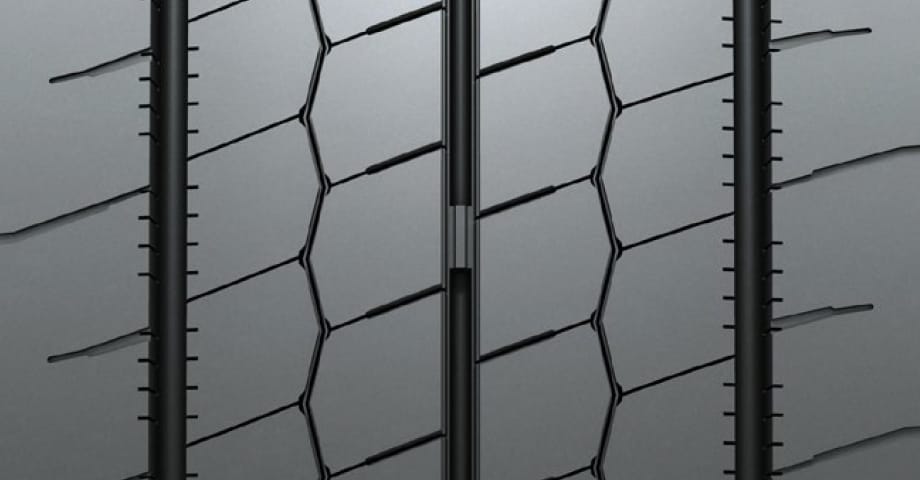

New Tire
Thoroughly developed tread pattern design delivering high grip performance and mileage while being fuel efficient.

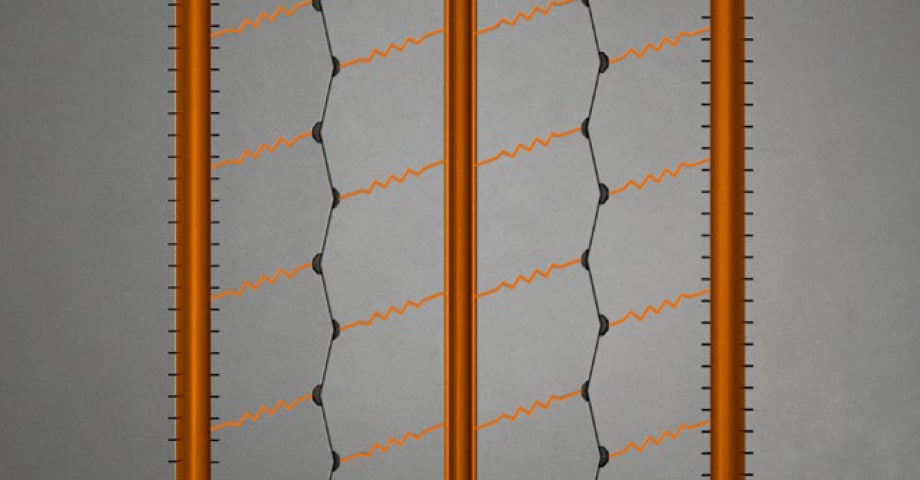

40% Wear
Interlocking 3D sipes are revealed, supporting tread block stiffness to keep up the high level of grip and a low rolling resistance.

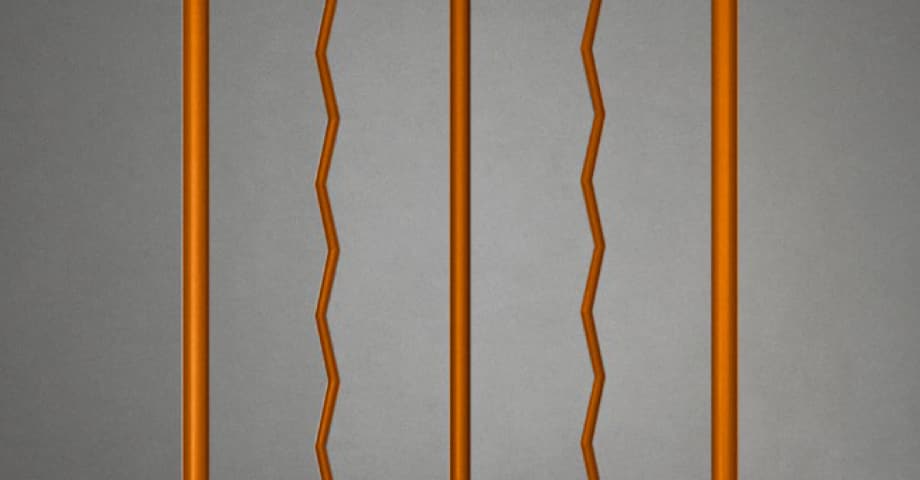

70% Wear
Hidden grooves appear when the tire is 70% worn delivering improved wet grip and traction performance.
-

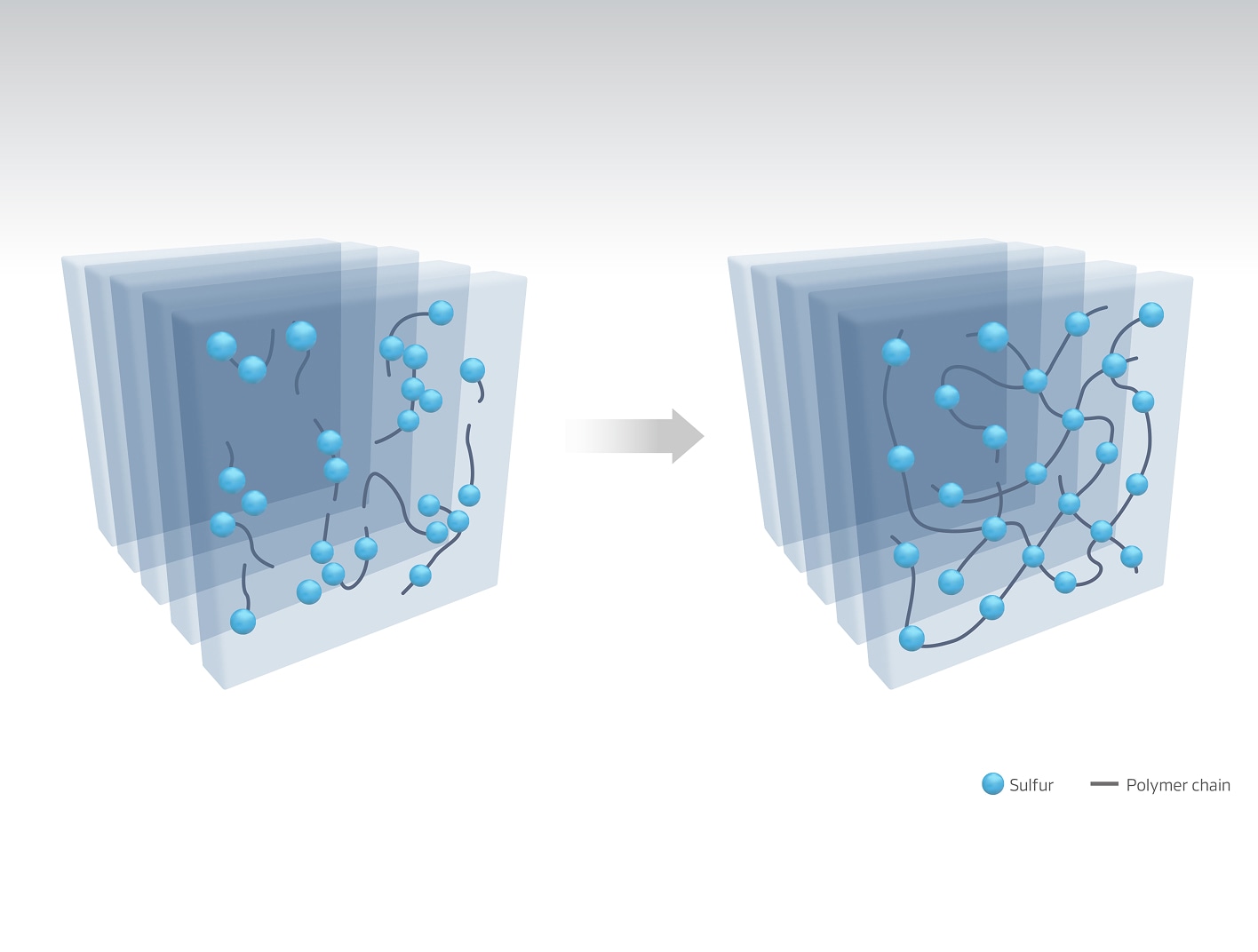

Innovative Mixing System
The Innovative Mixing System (IMS) minimizes the disconnection of the polymer chain and oxidation. The carbon black reinforcement also has higher dispersion levels. These effects of IMS help strengthen the bonding force between the carbon black and rubber for a stronger compound and lower heat generation.
The benefits of IMS are higher mileage and fuel efficiency.(export)260331.jpg)
The Innovative Mixing System (IMS) minimizes the disconnection of the polymer chain and oxidation. The carbon black reinforcement also has higher dispersion levels. These effects of IMS help strengthen the bonding force between the carbon black and rubber for a stronger compound and lower heat generation.
The benefits of IMS are higher mileage and fuel efficiency.
-

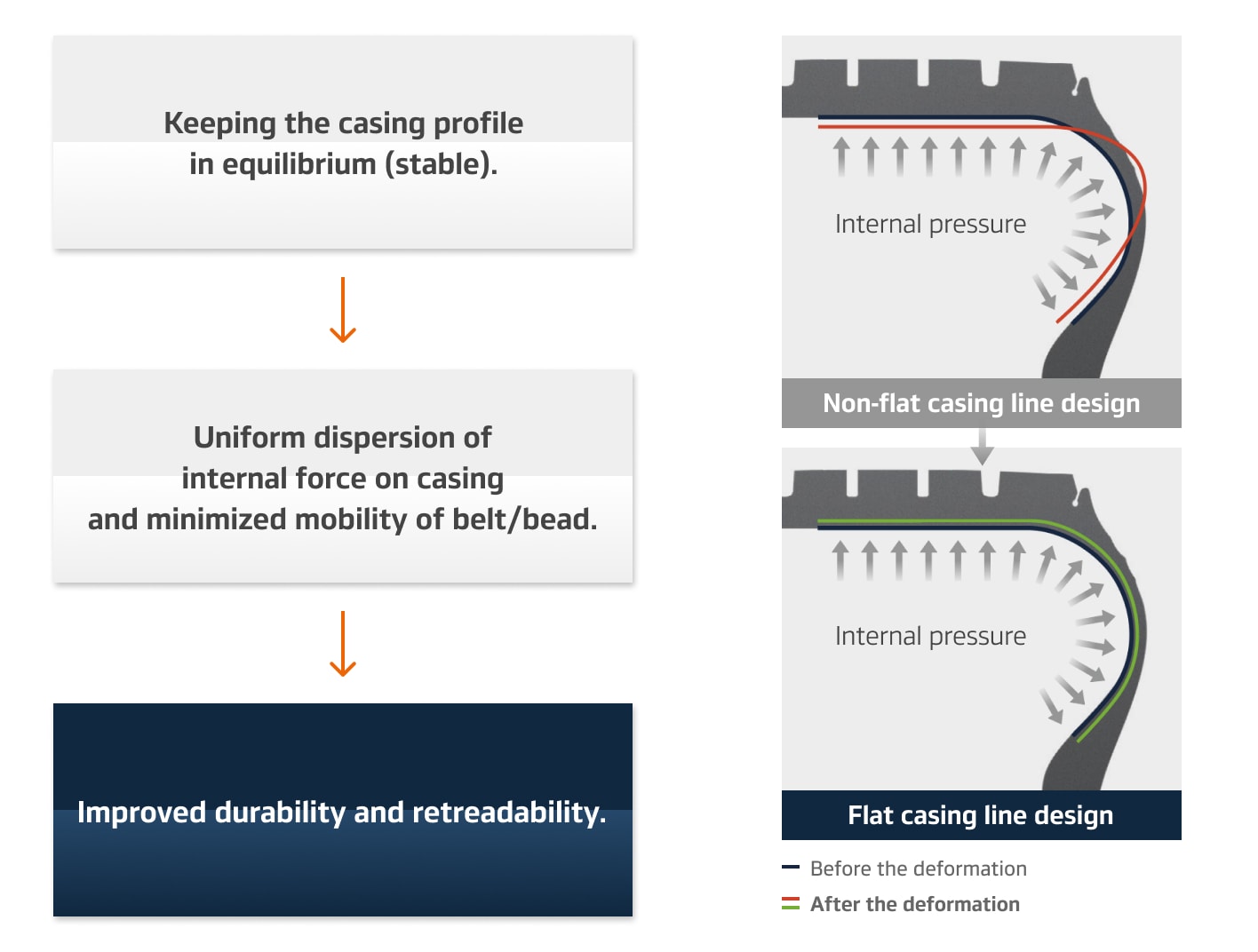

Stiffness Control Contour Technology (SCCT)
SCCT is designed for constant profile deformation. If the casing profile cannot be kept constant, the internal force on the casing will be concentrated on a specific point (belt edge or turned up casing edge). In contrast, SCCT controls the dispersion of internal forces for better durability.
(export)_260331.jpg)
SCCT is designed for constant profile deformation. If the casing profile cannot be kept constant, the internal force on the casing will be concentrated on a specific point (belt edge or turned up casing edge). In contrast, SCCT controls the dispersion of internal forces for better durability.
-
Spec
- 22.5”
-
295/60R22.5
- Material Code 3003955
- TT/TL L
- Ply Rating 18
- Measuring Rim 9.0X22.5
- Section Width(inch) 11.3
- Tread Width(inch) 9.6
- Tread Depth(32nds) 14
- Static Loaded Radius(inch) 16.7
- Overall Diameter(inch) 36.2
- Tire Weight(lbs.) 101
- Revs/MI 569
- M+S Y
- 3PMSF Y
