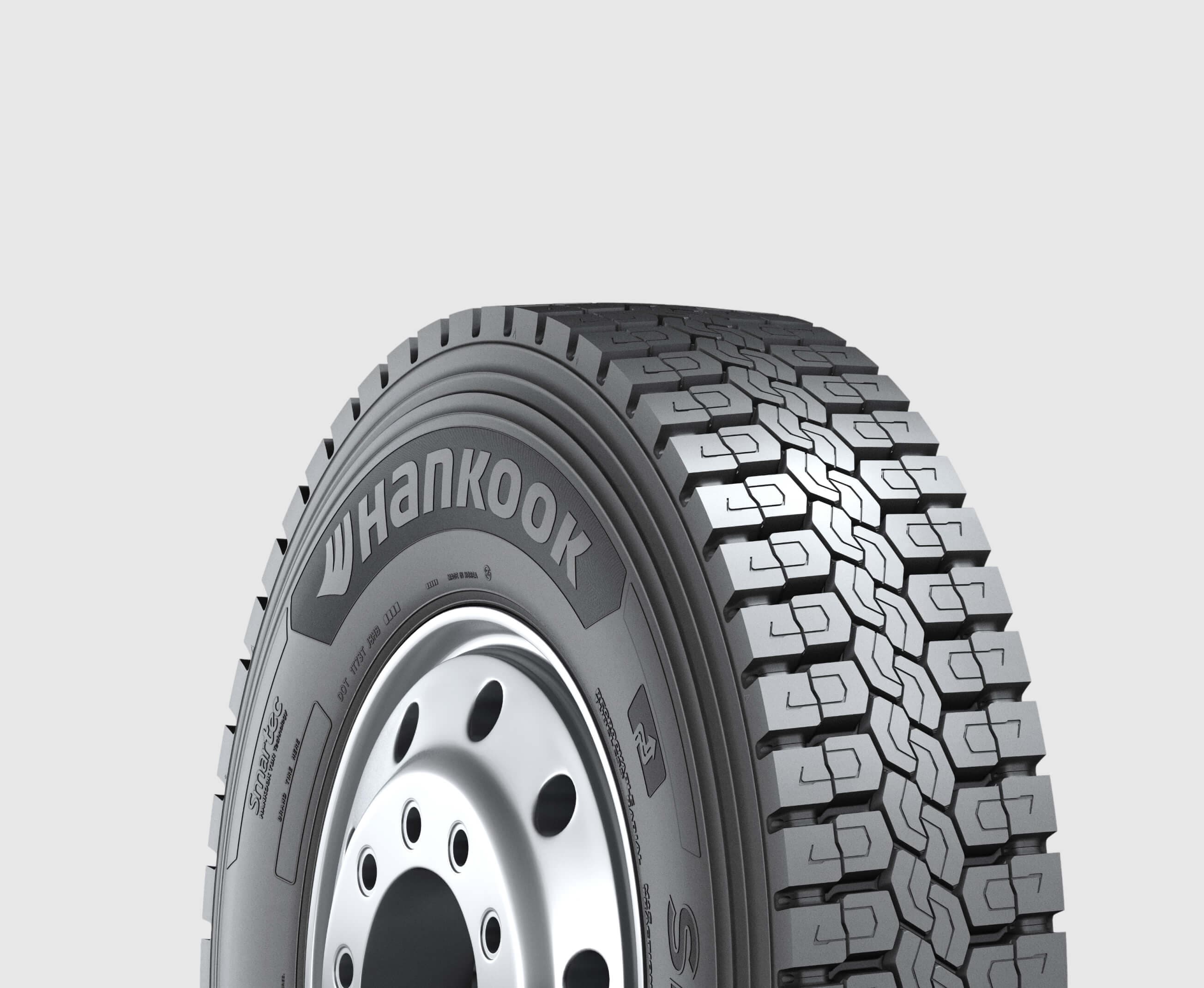

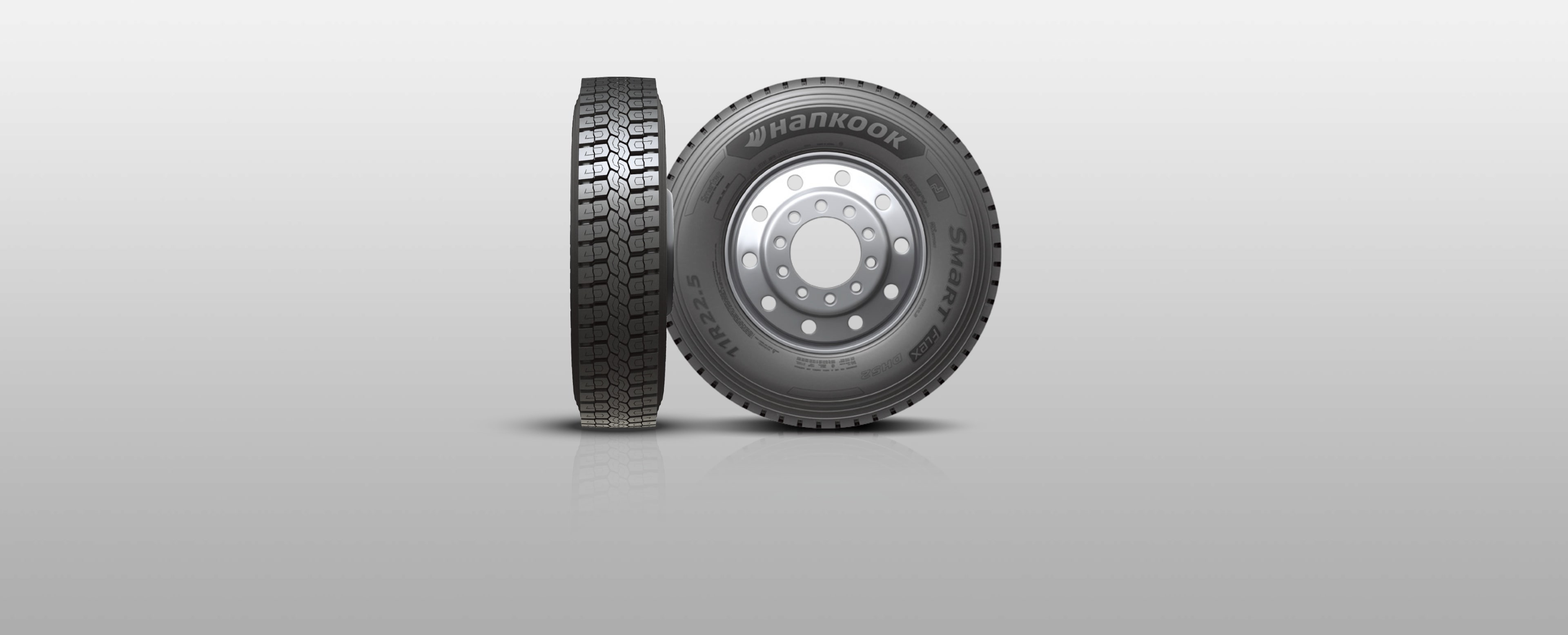

Smart Flex DH52

Regional Haul Drive tire for Extreme mileage & traction during the tire’s long lifespan

M+S 3PMSF Extended Warranty

Application
  • Regional Haul
Tractor/Trailer Recommended
Where to Buy
Where to Buy 0
0Recently viewed products

Regional Haul Drive tire for Extreme mileage & traction during the tire’s long lifespan

Hankook Tire & Technology-Tires-smart-dh52-detail-concept-01

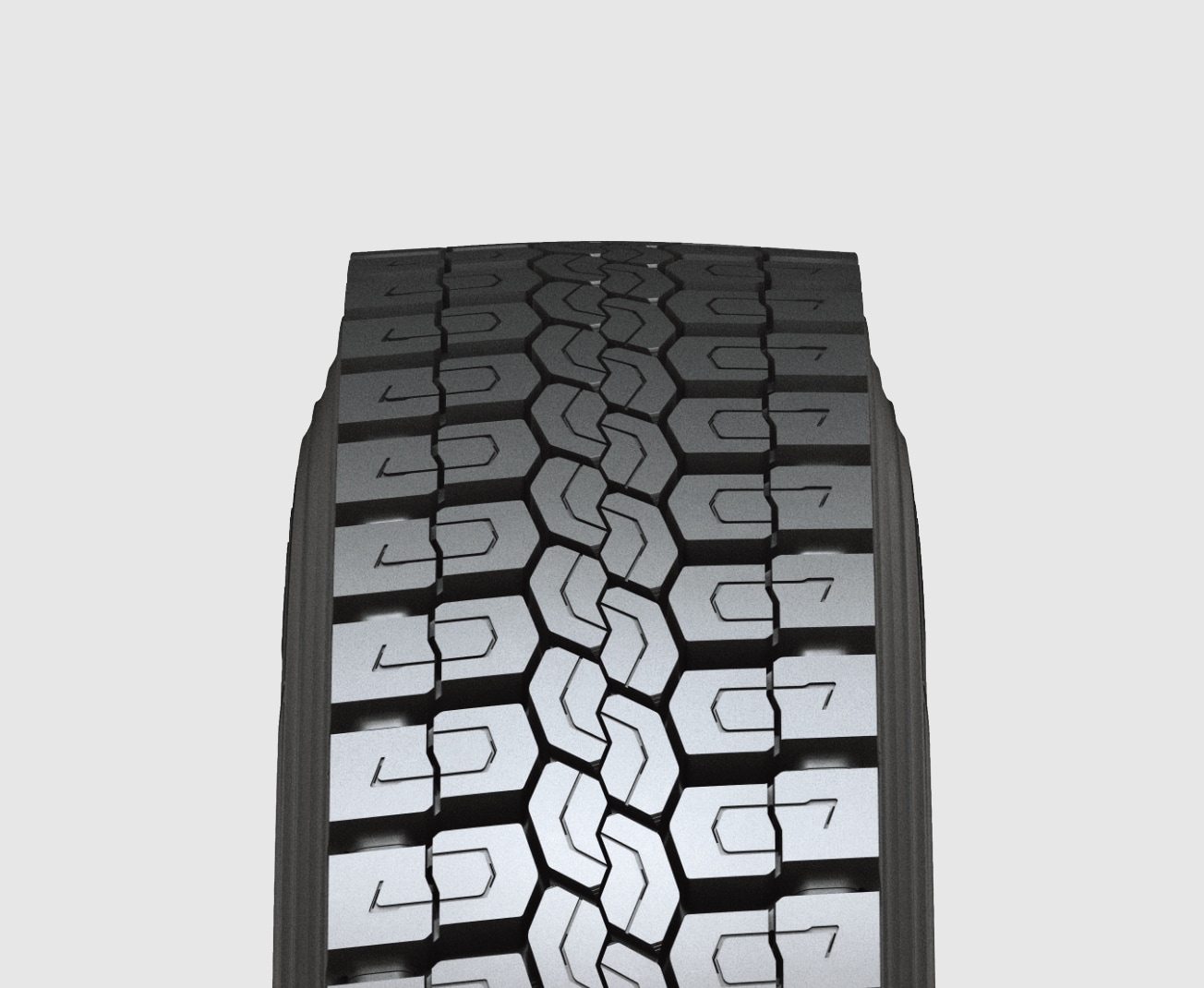

Hankook Tire & Technology-Tires-smart-dh52-detail-main-01

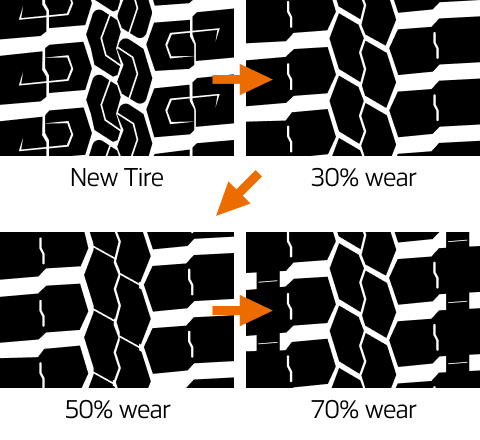

Hidden Lateral Groove

These hidden grooves appear as the tire wears. This creates new water channels and gripping surfaces giving better wet grip & traction.

Hankook Tire & Technology-Tires-smart-dh52-detail-feature-01
Hankook Tire & Technology-Tires-smart-dh52-detail-feature-01

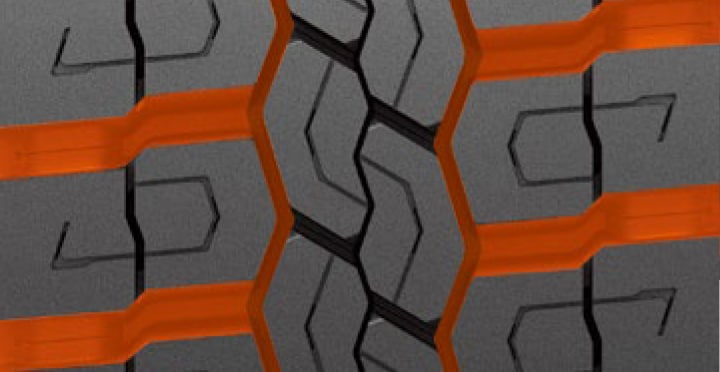

Zig-zag Groove and Open Shoulder

Zig-zag grooves and open shoulder provide the excellent performance for traction.

Hankook Tire & Technology-Tires-smart-dh52-detail-feature-02
Hankook Tire & Technology-Tires-smart-dh52-detail-main-01

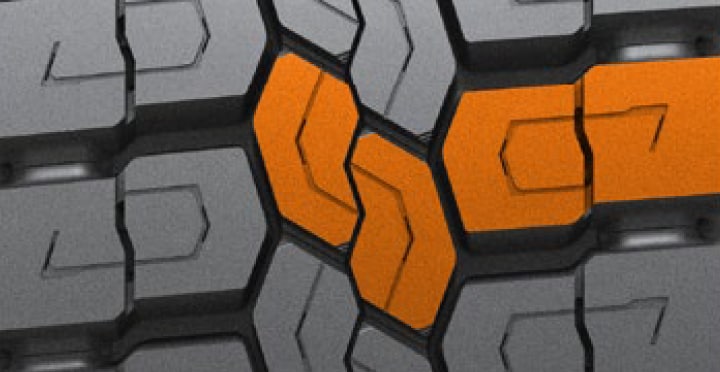

Optimized Block Design

Optimized block design ensures rigidity and low rolling resistance with center blocks shaped for stronger cohesion and 3D kerfs enhancing stiffness.

Hankook Tire & Technology-Tires-smart-dh52-detail-feature-03

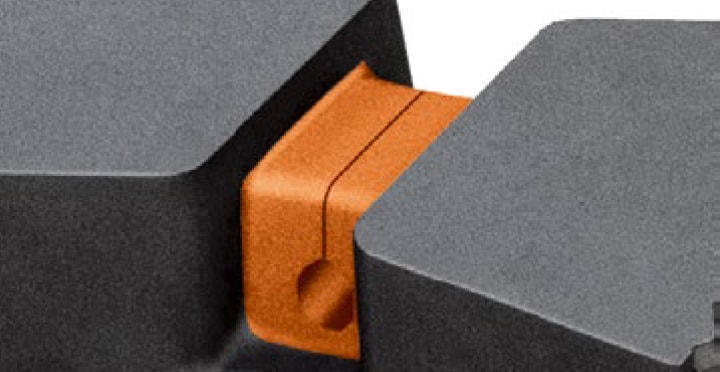

Heel & Toe Stopper

Heel & Toe Stopper in the lateral groove mitigates irregular wear, extending tread life while maintaining excellent traction until end of wear.

Hankook Tire & Technology-Tires-smart-dh52-detail-feature-01

Tread Compound Technology

1. LRR & Mileage Compound
New Tread Compound provides increased fuel efficiency and mileage performance.
2. Optimized Tread Gauge design
Minimizes energy loss and enhances fuel efficiency due to the decrease of heat generation.

Hankook Tire & Technology-Tires-smart-dh52-detail-feature-03

  • Regional Haul Drive tire for Extreme mileage & traction during the tire’s long lifespan

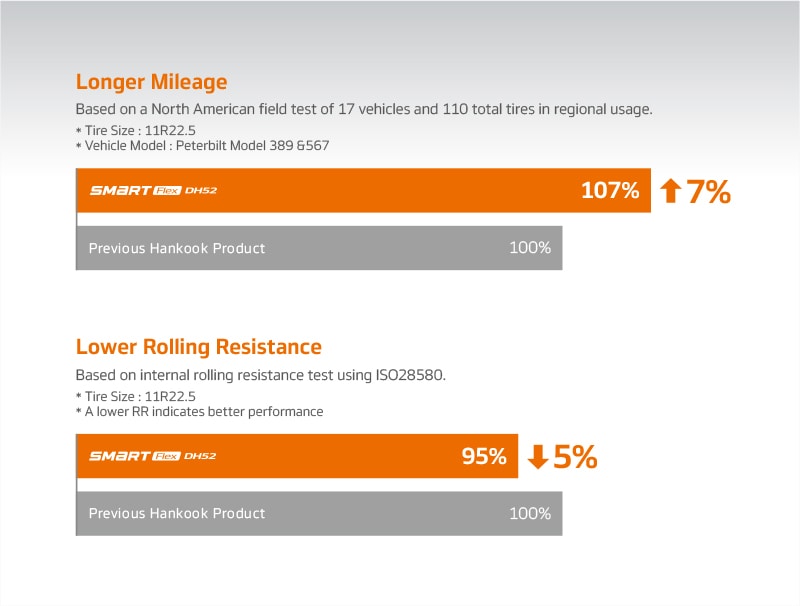

    Hankook Tire & Technology-Tires-smart-al52-image05

Gallery

Hankook Tire & Technology-Tires-smart-dh52-gallery-01

  • Spec

    • 22.5”
    • 24.5”
    • 11R22.5
      • Material Code 3003925
      • TT/TL L
      • Ply Rating 16
      • Measuring Rim 8.25X22.5
      • Section Width(inch) 11.1
      • Tread Width(inch) 8.9
      • Tread Depth(32nds) 27
      • Static Loaded Radius(inch) 19.6
      • Overall Diameter(inch) 41.9
      • Tire Weight(lbs.) 131
      • Revs/MI 497
      • M+S Y
      • 3PMSF Y
    • 11R22.5
      • Material Code 3003924
      • TT/TL L
      • Ply Rating 14
      • Measuring Rim 8.25X22.5
      • Section Width(inch) 11.1
      • Tread Width(inch) 8.9
      • Tread Depth(32nds) 27
      • Static Loaded Radius(inch) 19.6
      • Overall Diameter(inch) 41.9
      • Tire Weight(lbs.) 130
      • Revs/MI 497
      • M+S Y
      • 3PMSF Y
    • 11R24.5
      • Material Code 3004171
      • TT/TL L
      • Ply Rating 14
      • Measuring Rim 8.25X24.5
      • Section Width(inch) 11.2
      • Tread Width(inch) 8.9
      • Tread Depth(32nds) 27
      • Static Loaded Radius(inch) 20.6
      • Overall Diameter(inch) 44.1
      • Tire Weight(lbs.) 133
      • Revs/MI 475
      • M+S Y
      • 3PMSF Y
    • 11R24.5
      • Material Code 3004172
      • TT/TL L
      • Ply Rating 16
      • Measuring Rim 8.25X24.5
      • Section Width(inch) 11.2
      • Tread Width(inch) 8.9
      • Tread Depth(32nds) 27
      • Static Loaded Radius(inch) 20.6
      • Overall Diameter(inch) 44.1
      • Tire Weight(lbs.) 133
      • Revs/MI 475
      • M+S Y
      • 3PMSF Y
    • 255/70R22.5
      • Material Code 3004299
      • TT/TL L
      • Ply Rating 16
      • Measuring Rim 7.5X22.5
      • Section Width(inch) 9.9
      • Tread Width(inch) 8.5
      • Tread Depth(32nds) 24
      • Static Loaded Radius(inch) 0.0
      • Overall Diameter(inch) 37.0
      • Tire Weight(lbs.) 101
      • M+S Y
      • 3PMSF Y
