DL11

Long Haul Drive Tire with High Fuel Efficiency and Superb Traction

M+S Smart Way Extended Warranty

Application
  • Long Haul
Tractor/Trailer Recommended
0Recently viewed products

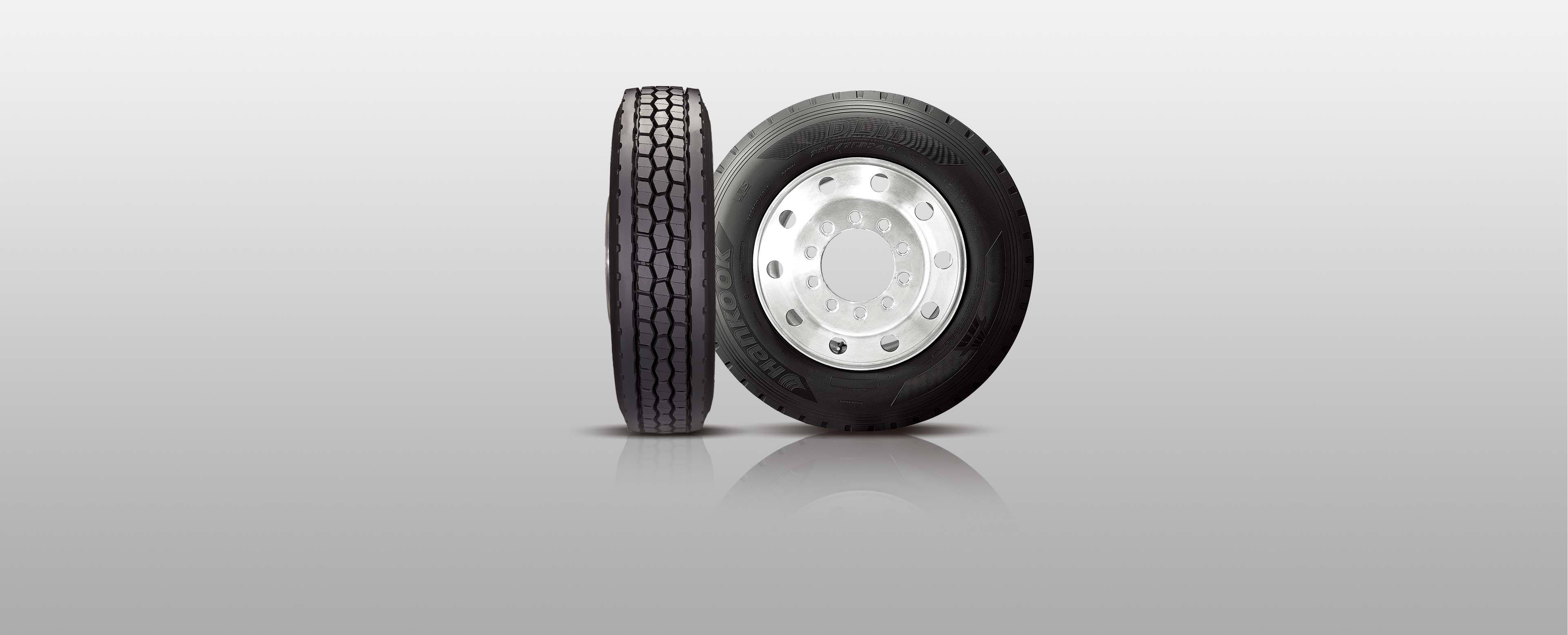

Long haul drive tire with high fuel efficiency and superb traction

Hankook Tire & Technology-Tires-Smart--DL11-Long haul drive tire with high fuel efficiency and superb traction

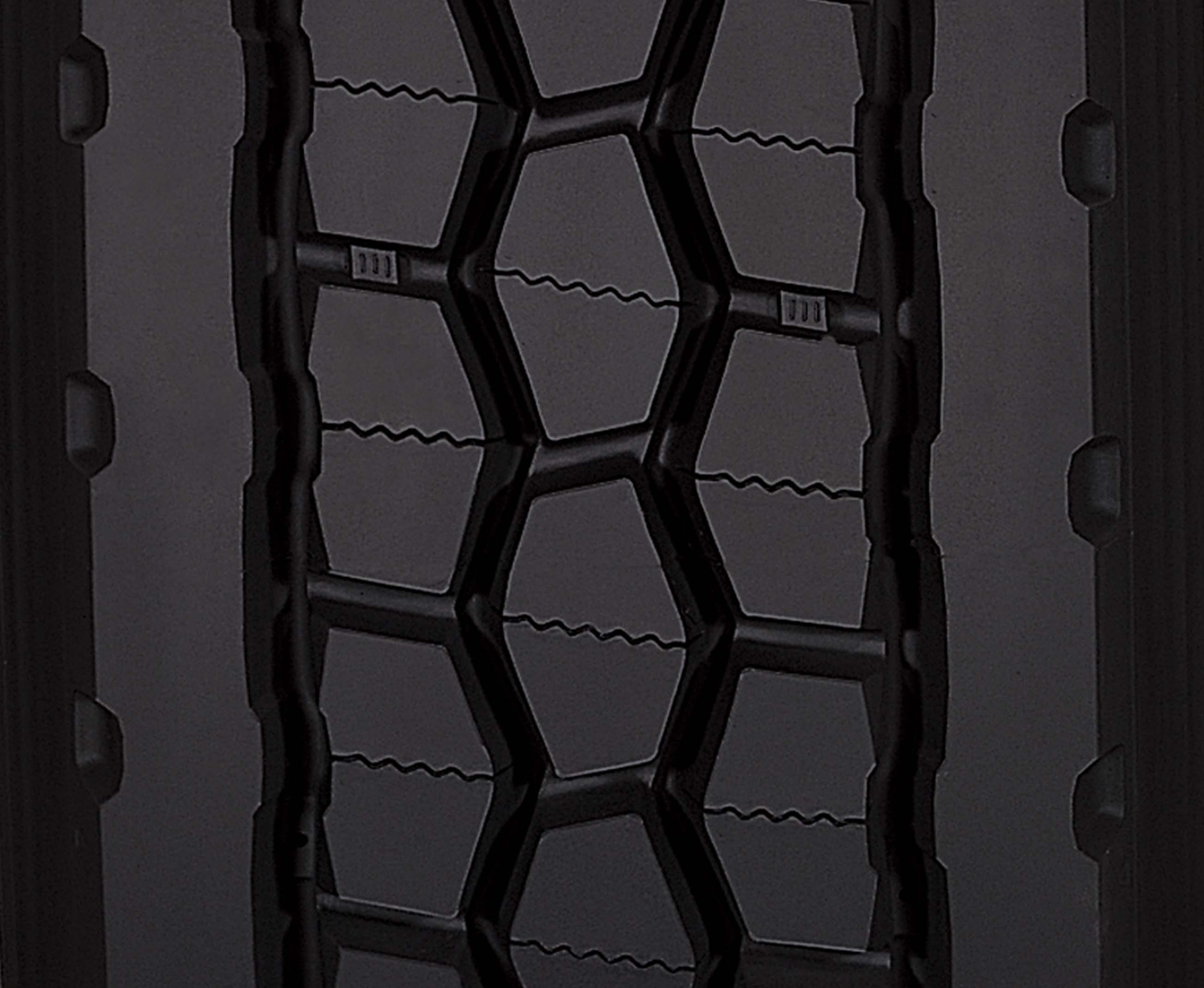

High fuel efficiency, long mileage and excellent traction with optimized pattern design, 3-Dimensional Sipe and compound technology

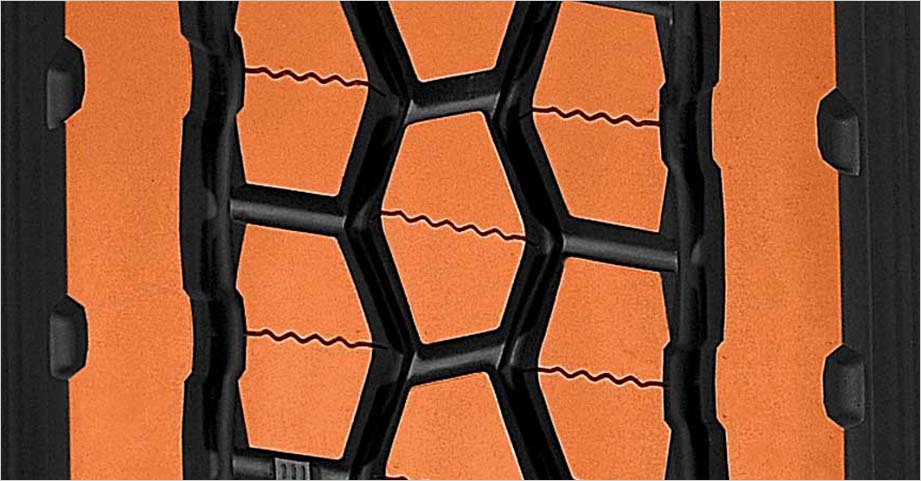

4-groove pattern and straight and zig-zag type grooves

Semi zig-zag and 4-grooves provide better traction for dry and wet conditions.

Closed shoulder rib

Extra wide shoulders help provide a stability and better performance for even wear.

Optimized tread design

Provide a longer tread life and prevent holding for improved damage resistance.

High fuel efficiency, long mileage and excellent traction with optimized pattern design, 3-Dimensional Sipe and compound technology

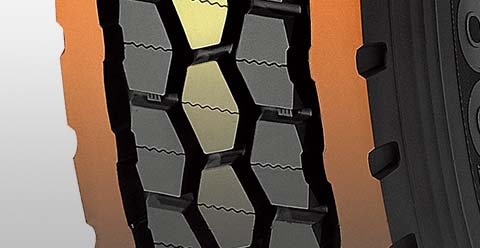

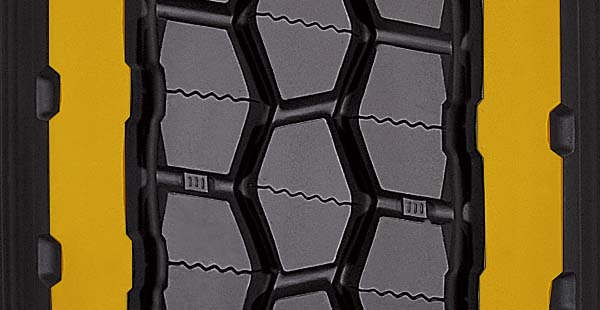

Wide shoulder

Extra wide shoulders help provide a stability and better performance for even wear.

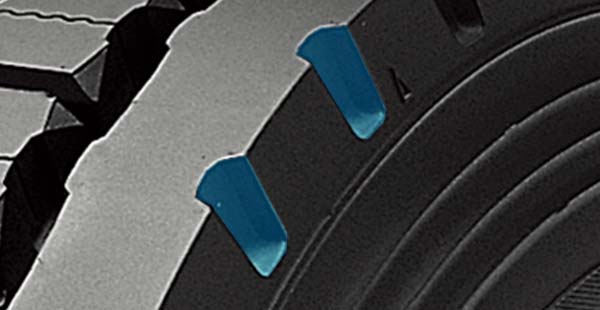

Shoulder lug

Shoulder lugs provide better performance for wandering and help reduce tread temperature.

Applied new technology
3-Dimensional Sipe

Reinforced traction performance enhanced mileage and suppress uneven wear for a uniform of rib’s stiffness

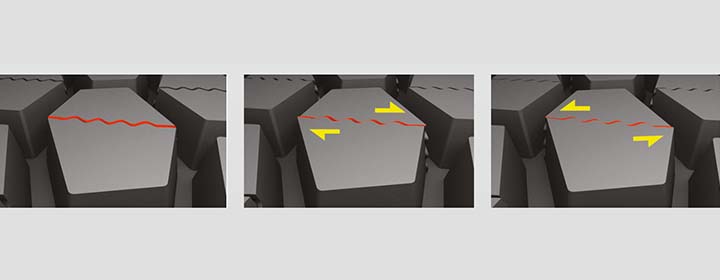

3-Dimensional Sipe

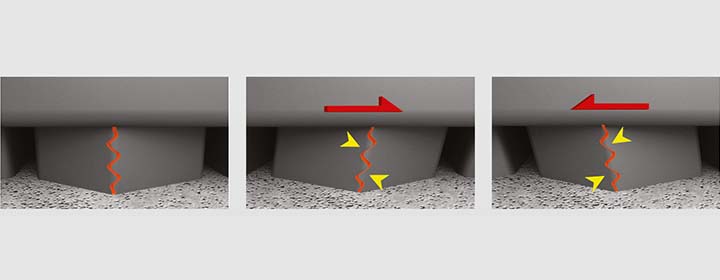

In case of general sipe, block is collapsed due to no binding force between sipe. 3-Dimensional sipe delivers excellent mileage and traction performance with reduced irregular wear which enhances fuel efficiency.

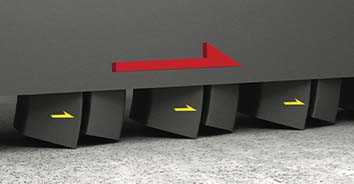

  • General Sipe

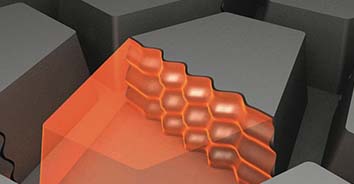

  • 3-Dimensional Sipe

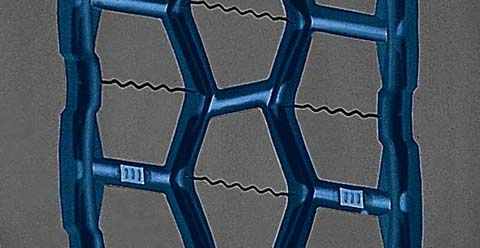

Control tearing and wearing improves mileage and deep full depth sipe keeps traction during whole life.

Applying deep full depth sipe keeps traction in the late wear.

All-new tread compound technology

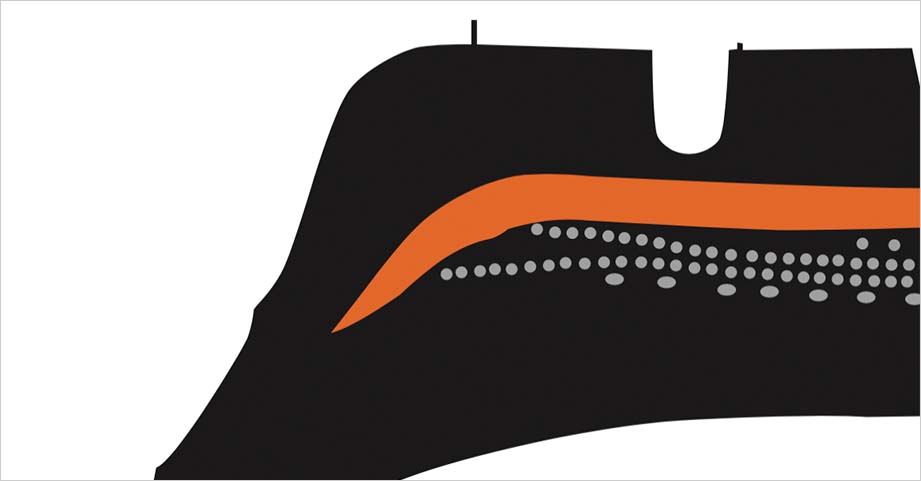

The new sub tread compound

New sub tread compound minimizes energy loss and enhances fuel efficiency due to the decrease of heat generation.

Super mileage compound (SMC)

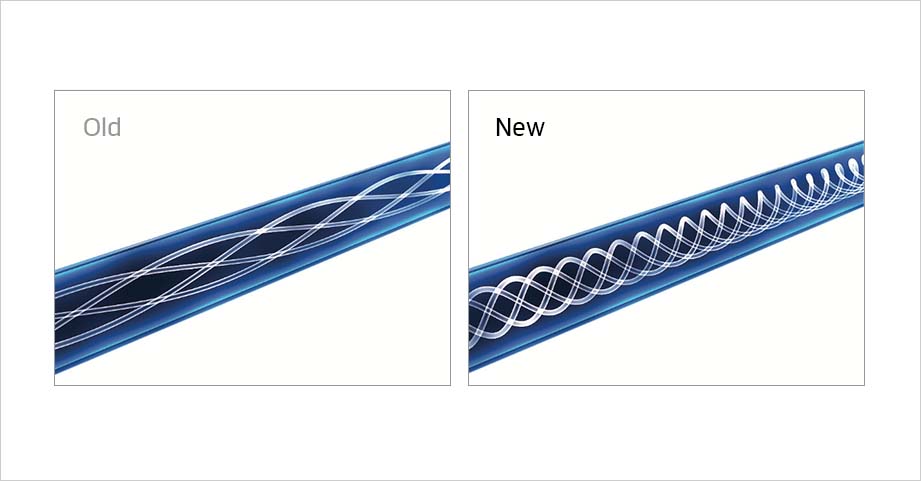

New cap tread compound using a rubber with femer molecule branches has a good dispersion efficiency.

  • Test Result

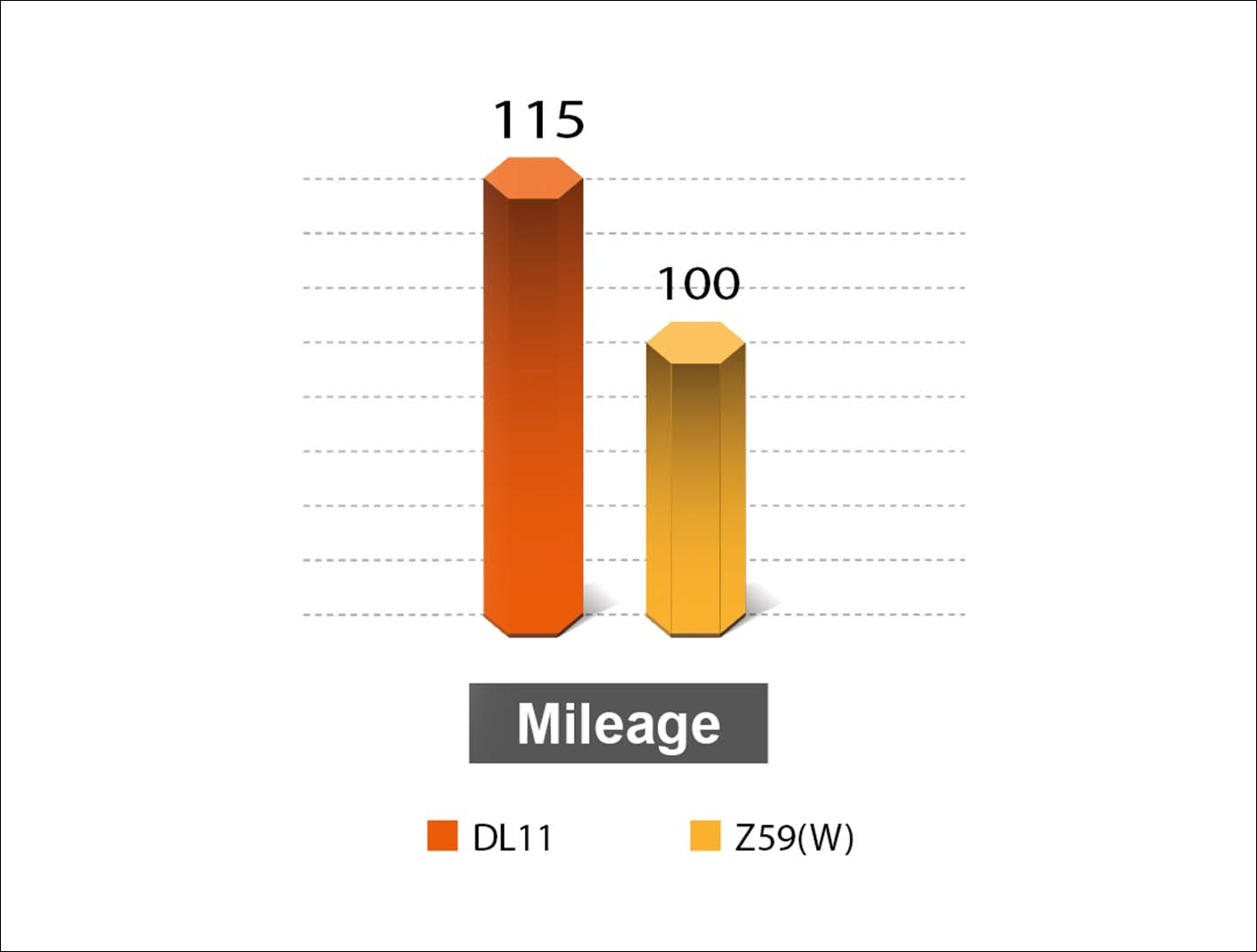

    Mileage

    Mileage improved 15% compared to its predecessor.

    Mileage

    Mileage improved 15% compared to its predecessor.

e3maxal21_video_thumbnail
  • Spec

    • 11R22.5
      • Material Code 3001705
      • TT/TL L
      • Ply Rating 16
      • Measuring Rim 8.25X22.5
      • Section Width(inch) 11.1
      • Tread Width(inch) 8.5
      • Tread Depth(32nds) 26
      • Static Loaded Radius(inch) 19.6
      • Overall Diameter(inch) 41.9
      • Tire Weight(lbs.) 125
      • M+S Y
      • 3PMSF N
      • Max Speed (mph) 75
      • Origin Korea
      • OEM DTNA
    • 11R22.5
      • Material Code 3001706
      • TT/TL L
      • Ply Rating 14
      • Measuring Rim 8.25X22.5
      • Section Width(inch) 11.1
      • Tread Width(inch) 8.5
      • Tread Depth(32nds) 26
      • Static Loaded Radius(inch) 19.5
      • Overall Diameter(inch) 41.9
      • Tire Weight(lbs.) 125
      • M+S Y
      • 3PMSF N
      • Max Speed (mph) 75
      • Origin Korea
      • OEM DTNA, Toyota
    • 11R24.5
      • Material Code 3001707
      • TT/TL L
      • Ply Rating 16
      • Measuring Rim 8.25X24.5
      • Section Width(inch) 11.1
      • Tread Width(inch) 8.5
      • Tread Depth(32nds) 26
      • Static Loaded Radius(inch) 20.6
      • Overall Diameter(inch) 43.9
      • Tire Weight(lbs.) 129
      • M+S Y
      • 3PMSF N
      • Max Speed (mph) 75
      • Origin Korea
      • OEM DTNA
    • 11R24.5
      • Material Code 3001708
      • TT/TL L
      • Ply Rating 14
      • Measuring Rim 8.25X24.5
      • Section Width(inch) 11.1
      • Tread Width(inch) 8.5
      • Tread Depth(32nds) 26
      • Static Loaded Radius(inch) 20.5
      • Overall Diameter(inch) 43.9
      • Tire Weight(lbs.) 128
      • M+S Y
      • 3PMSF N
      • Max Speed (mph) 75
      • Origin Korea
      • OEM DTNA
    • 285/75R24.5
      • Material Code 3001704
      • TT/TL L
      • Ply Rating 14
      • Measuring Rim 8.25×24.5
      • Section Width(inch) 11.3
      • Tread Width(inch) 8.5
      • Tread Depth(32nds) 26
      • Static Loaded Radius(inch) 19.4
      • Overall Diameter(inch) 41.9
      • Tire Weight(lbs.) 123
      • M+S Y
      • 3PMSF N
      • Max Speed (mph) 75
      • Origin Korea
    • 295/75R22.5
      • Material Code 3001592
      • TT/TL L
      • Ply Rating 14
      • Measuring Rim 8.25X22.5
      • Section Width(inch) 11.4
      • Tread Width(inch) 8.5
      • Tread Depth(32nds) 26
      • Static Loaded Radius(inch) 19.1
      • Overall Diameter(inch) 40.7
      • Tire Weight(lbs.) 116
      • M+S Y
      • 3PMSF N
      • Max Speed (mph) 75
      • Origin Korea
      • OEM DTNA
