DH06
Longer mileage and high traction tire for medium haul
- Regional Haul
Longer mileage and high traction tire for medium haul
Pattern design
Pattern design
Tread design

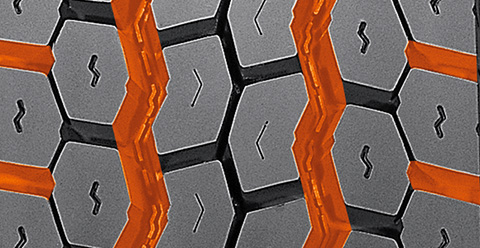

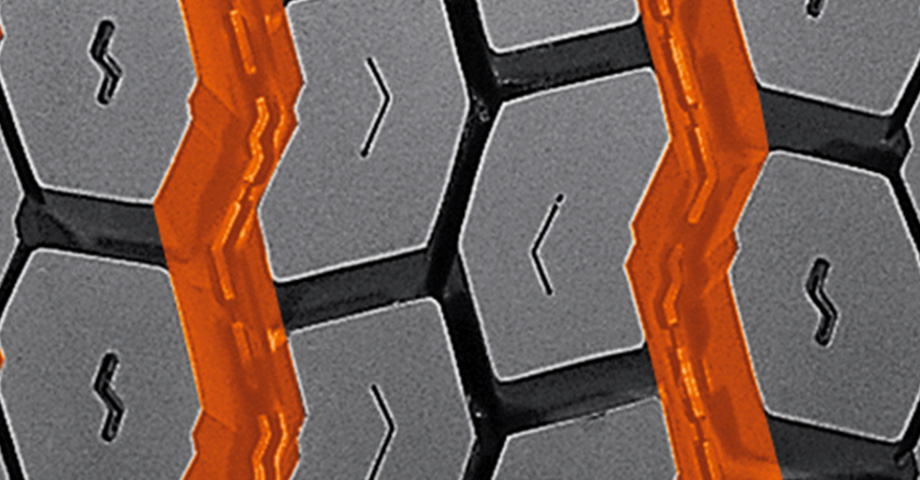

Deeper groove and wide tread

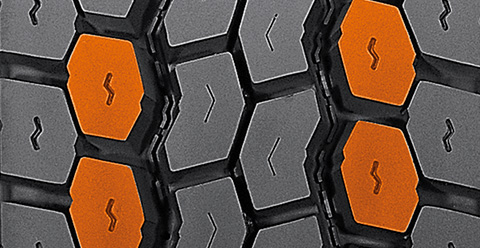

Unique tread design
-
Stiffness Control Contour Theory Technology
(SCCT Technology)SCCT Technology is designed to reduce profile deformation. If the carcass profile is not kept constant, the internal force on the carcass will be concentrated on a specific point, belt edge or carcass turn up edge. In contrast, SCCT Technology controls the dispersion of internal force for better durability.
SCCT Technology is designed to reduce profile deformation. If the carcass profile is not kept constant, the internal force on the carcass will be concentrated on a specific point, belt edge or carcass turn up edge. In contrast, SCCT Technology controls the dispersion of internal force for better durability.
-
Innovative Mixing System (IMS)
Innovative Mixing System (IMS) minimizes the breakdown and oxidation of polymer chains and has a higher dispersion degree of carbon black. The effects of IMS help to strengthen the bonding force between the carbon black and rubber to ensure longer mileage and to lower the heat generation of compounds for improved fuel efficiency.
Innovative Mixing System (IMS) minimizes the breakdown and oxidation of polymer chains and has a higher dispersion degree of carbon black. The effects of IMS help to strengthen the bonding force between the carbon black and rubber to ensure longer mileage and to lower the heat generation of compounds for improved fuel efficiency.
Test Result

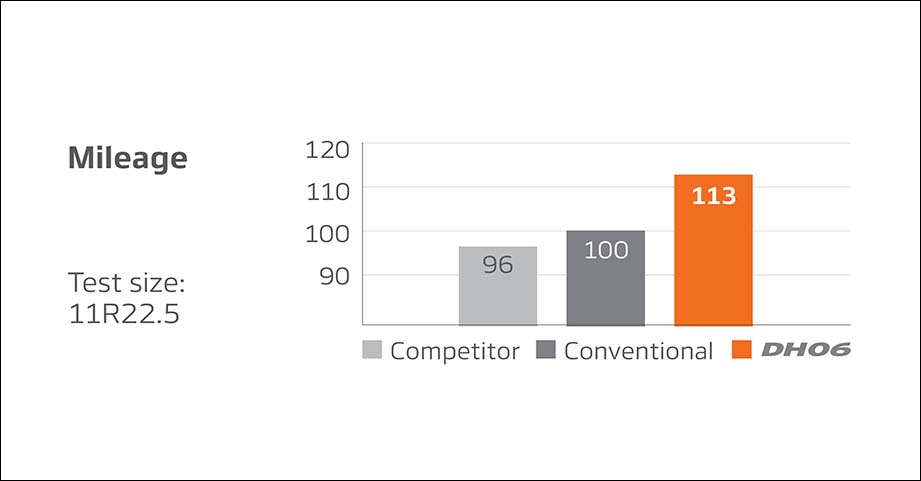

Increased mileage

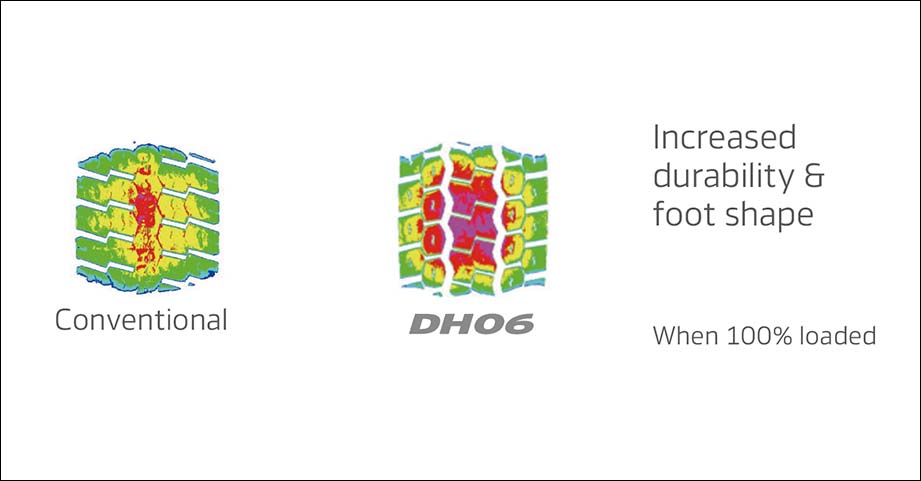

Increased durability & foot shape
-
Spec
- 22.5”
- 24.5”
-
11R22.5
- Material Code 3000844
- TT/TL L
- Ply Rating 14
- Measuring Rim 8.25X22.5
- Section Width(inch) 11.1
- Tread Width(inch) 8.6
- Tread Depth(32nds) 28
- Static Loaded Radius(inch) 19.7
- Overall Diameter(inch) 42.1
- Tire Weight(lbs.) 128
- M+S Y
- 3PMSF N
- Max Speed (mph) 75
- Origin Korea
- OEM DTNA
-
11R22.5
- Material Code 3001546
- TT/TL L
- Ply Rating 16
- Measuring Rim 8.25X22.5
- Section Width(inch) 11.1
- Tread Width(inch) 8.6
- Tread Depth(32nds) 28
- Static Loaded Radius(inch) 19.7
- Overall Diameter(inch) 42.1
- Tire Weight(lbs.) 128
- M+S Y
- 3PMSF N
- Max Speed (mph) 75
- Origin Korea
-
11R24.5
- Material Code 3001489
- TT/TL L
- Ply Rating 14
- Measuring Rim 8.25X24.5
- Section Width(inch) 11.1
- Tread Width(inch) 8.7
- Tread Depth(32nds) 28
- Overall Diameter(inch) 44.1
- Tire Weight(lbs.) 132
- M+S Y
- 3PMSF N
- Max Speed (mph) 75
- Origin Korea
-
295/75R22.5
- Material Code 3001635
- TT/TL L
- Ply Rating 14
- Measuring Rim 8.25X22.5
- Section Width(inch) 11.4
- Tread Width(inch) 9.1
- Tread Depth(32nds) 28
- Static Loaded Radius(inch) 19.1
- Overall Diameter(inch) 40.8
- Tire Weight(lbs.) 122
- M+S Y
- 3PMSF N
- Max Speed (mph) 75
- Origin Korea
- OEM DTNA
