AH32

All position tire for regional haul conditions

Application
  • Regional Haul
Truck Recommended
0Recently viewed products

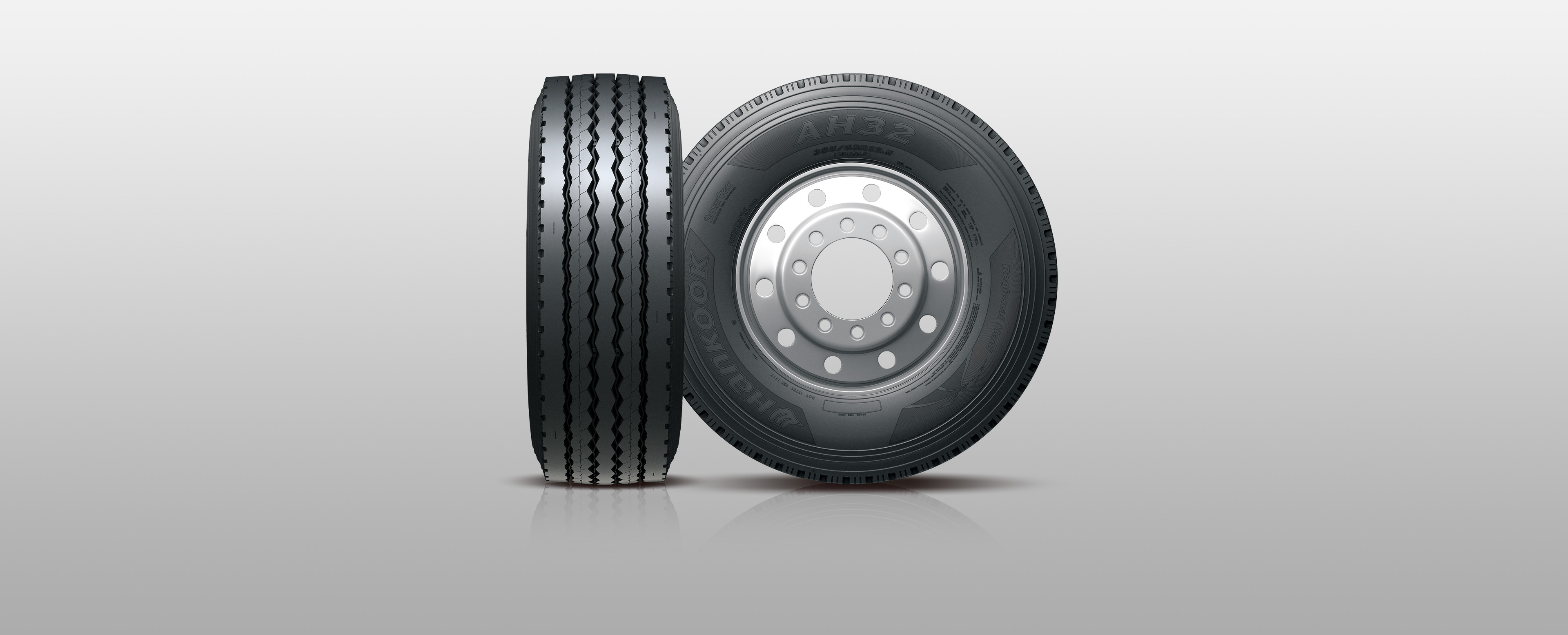

Optimized design for all position/steer regional haul
with high mileage and traction

Hankook Tire & Technology-Tires-Smart--AH32-Optimized design for all position/steer regional haul with high mileage and traction

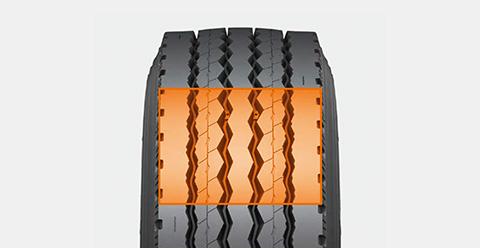

Pattern design

Optimized pattern for all position/steer regional haul. Pattern design for better fuel efficiency and maximum wear resistance

Multi-purpose performance

The pattern is built to be extra tough against uneven wear, chips, cuts, and tearing. The combination of two differently designed zig-zag grooves, along with its wide & deep tread, allows the pattern to provide increased mileage and improved traction performance.

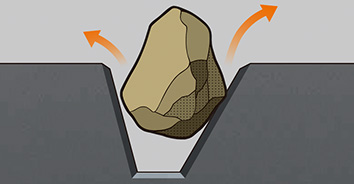

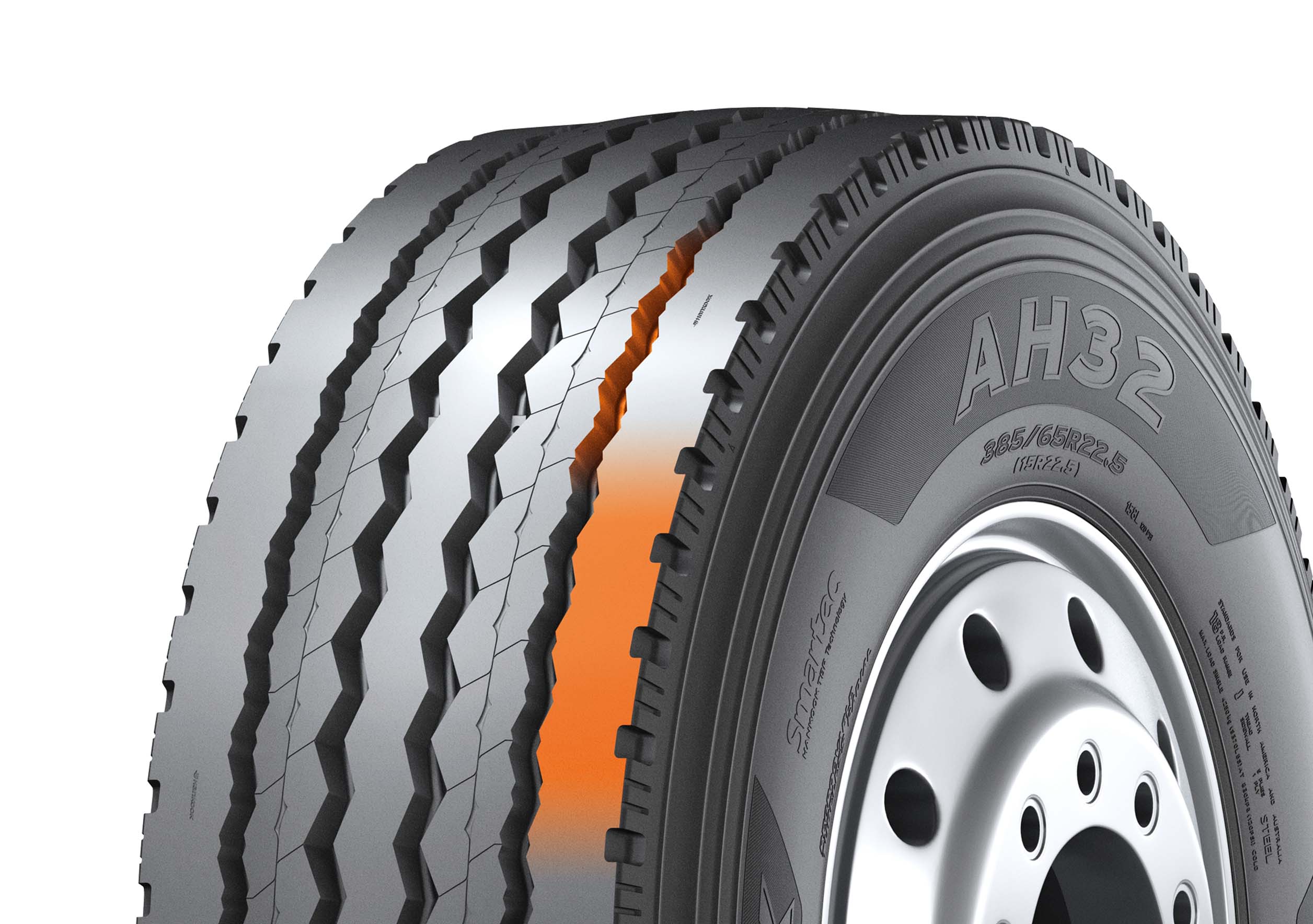

Technology of ejecting stone

Asymmetric groove helps eject stones.

Pattern design

Optimized pattern for all position/steer regional haul. Pattern design for better fuel efficiency and maximum wear resistance

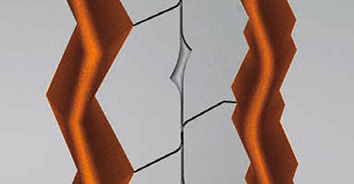

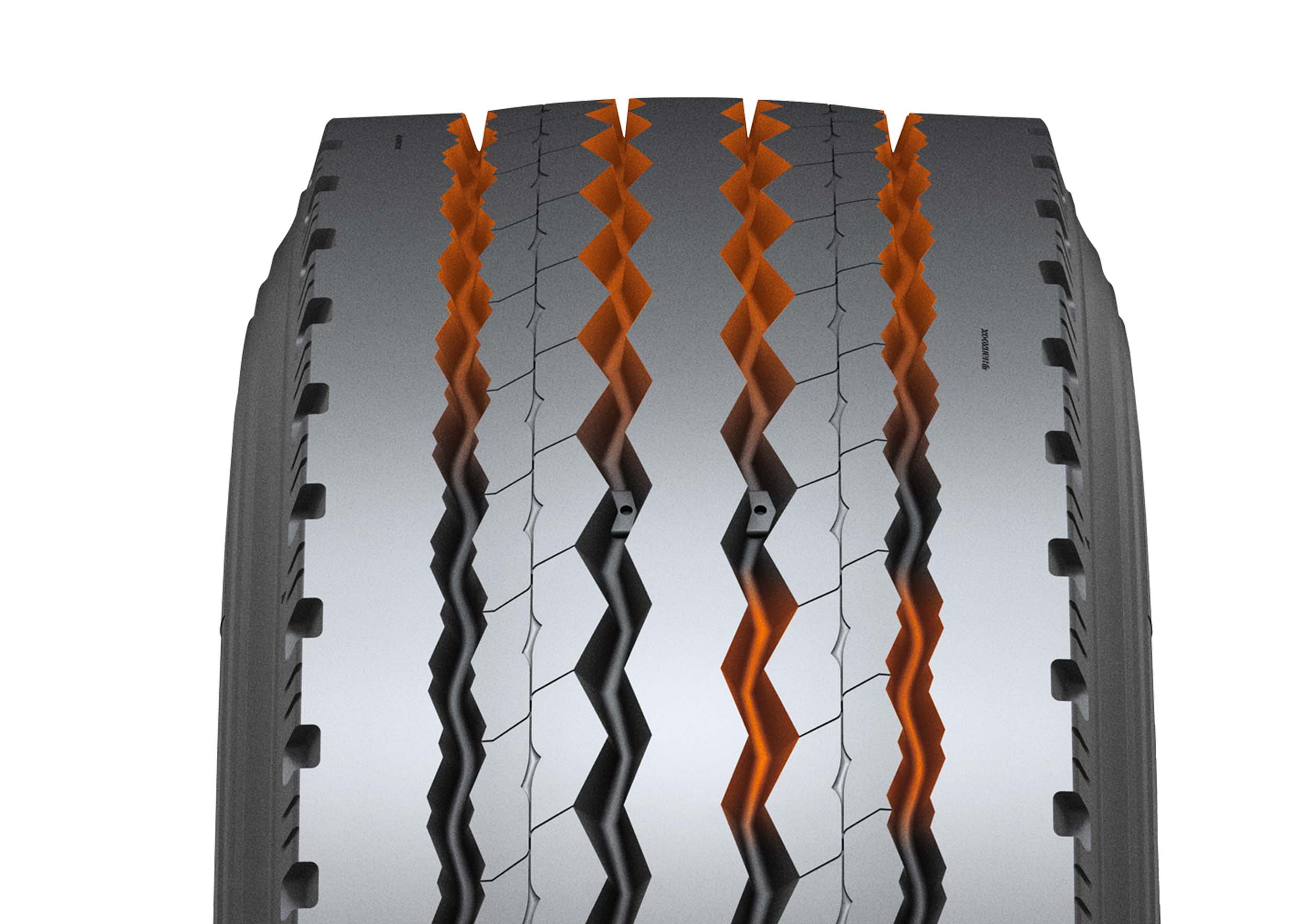

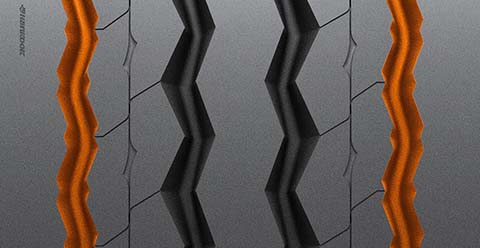

Zigzag traction groove

Excellent traction and braking.

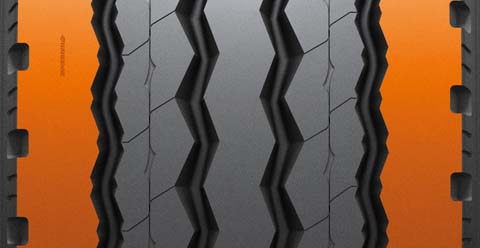

Optimized shoulder design

Optimized shoulder profile and unique shoulder wall grooves help deliver excellent resistance to uneven rib wear.

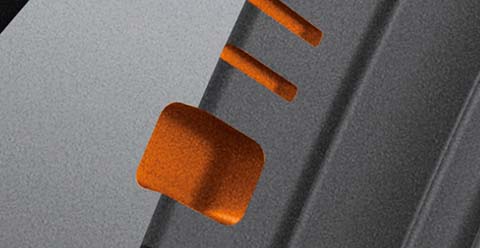

Shoulder lug

Improved chip-cut performance at shoulder.

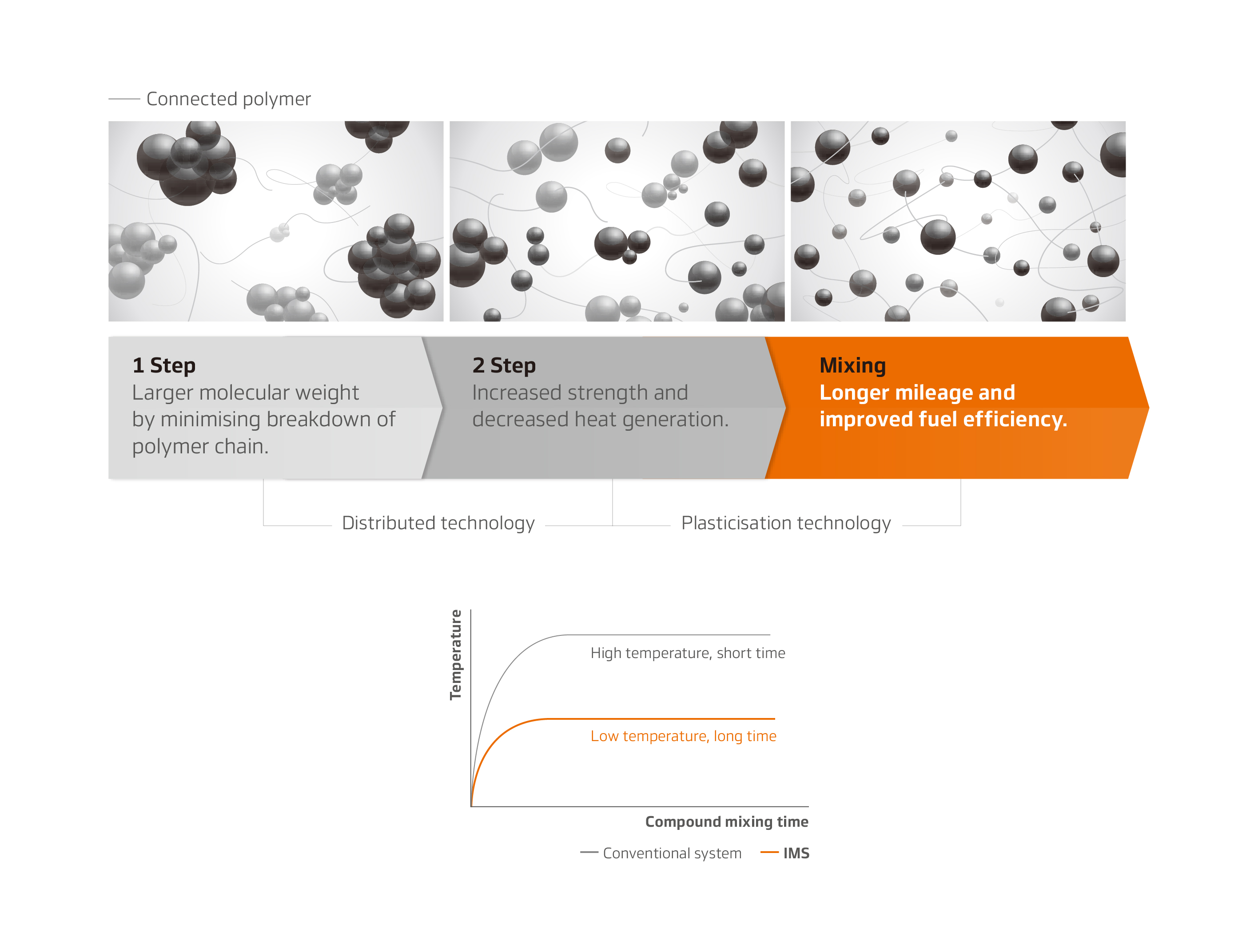

  • Innovative Mixing System (IMS)

    Innovative Mixing System (IMS) minimizes the breakdown and oxidation of polymer chains and has a higher dispersion degree of carbon black. The effects of IMS help to strengthen the bonding force between the carbon black and rubber to ensure longer mileage and to lower the heat generation of compounds for improved fuel efficiency.

    Innovative Mixing System (IMS) minimizes the breakdown and oxidation of polymer chains and has a higher dispersion degree of carbon black. The effects of IMS help to strengthen the bonding force between the carbon black and rubber to ensure longer mileage and to lower the heat generation of compounds for improved fuel efficiency.

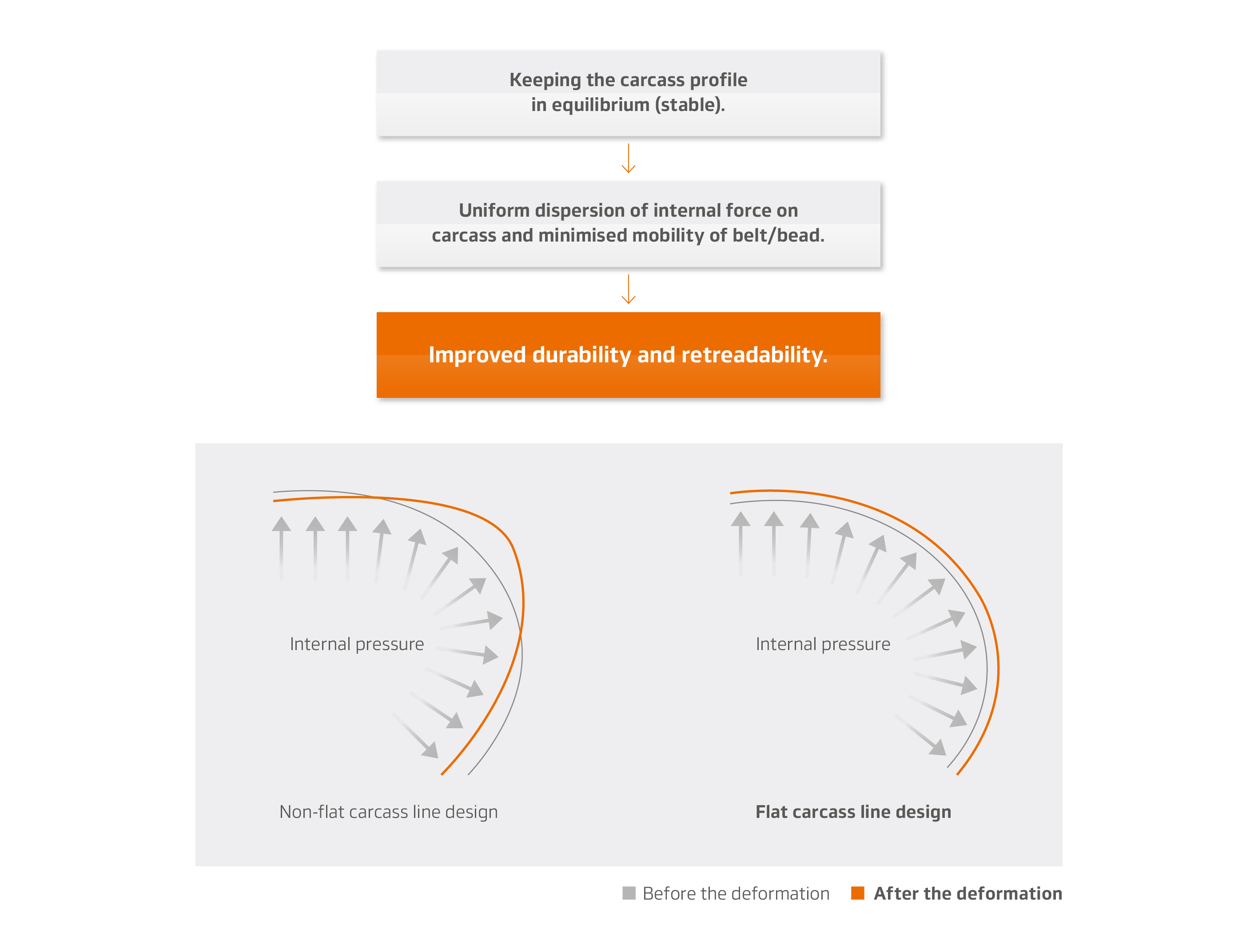

  • Stiffness Control Contour Theory Technology
    (SCCT Technology)

    SCCT Technology is designed to reduce profile deformation. If the carcass profile is not kept constant, the internal force on the carcass will be concentrated on a specific point, belt edge or carcass turn up edge. In contrast, SCCT Technology controls the dispersion of internal force for better durability.

    SCCT Technology is designed to reduce profile deformation. If the carcass profile is not kept constant, the internal force on the carcass will be concentrated on a specific point, belt edge or carcass turn up edge. In contrast, SCCT Technology controls the dispersion of internal force for better durability.

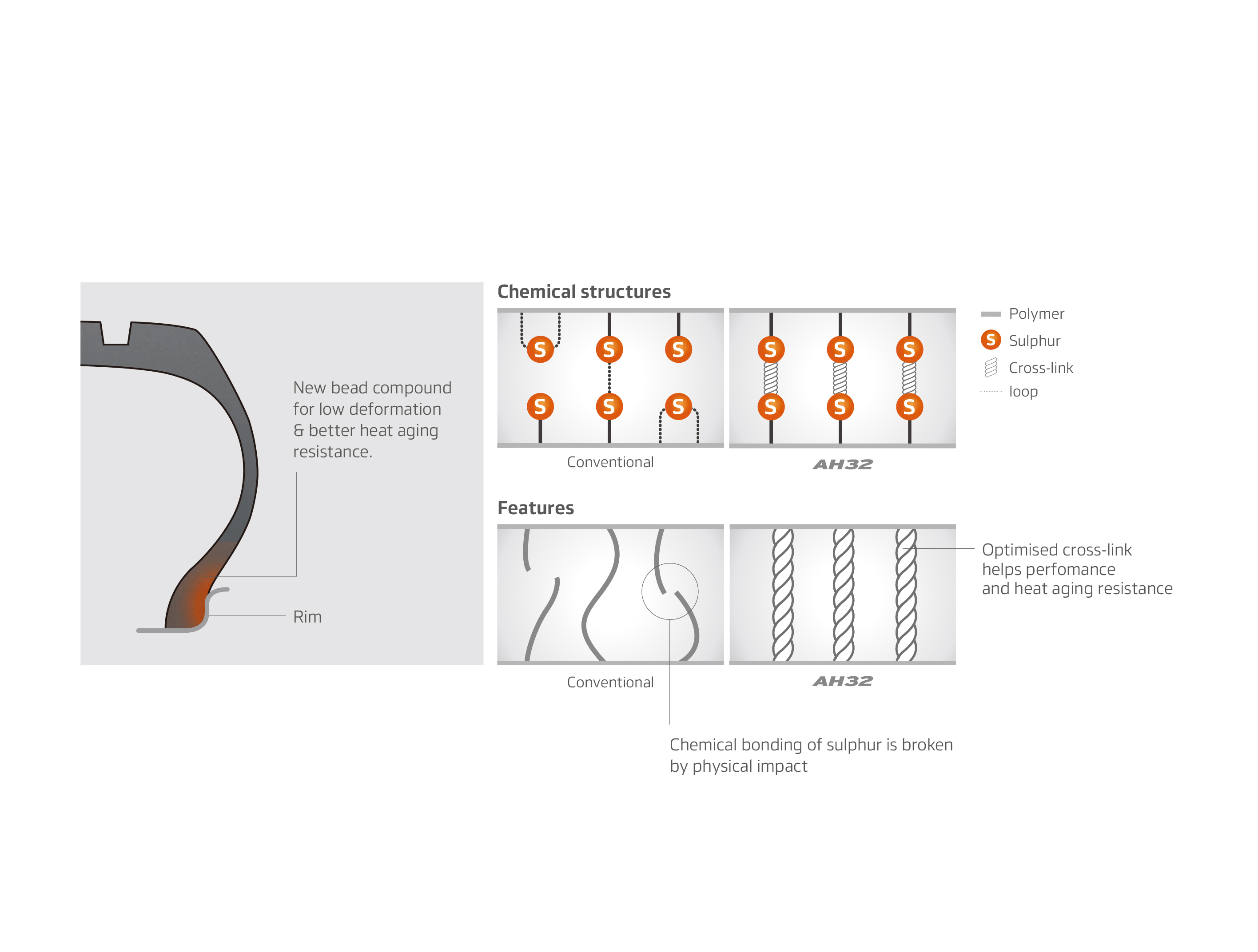

  • New bead compound

    New compound for improved retreadability. Greatly improved creep performance and heat aging resistance → Decreased bead crack.

    New compound for improved retreadability. Greatly improved creep performance and heat aging resistance → Decreased bead crack.

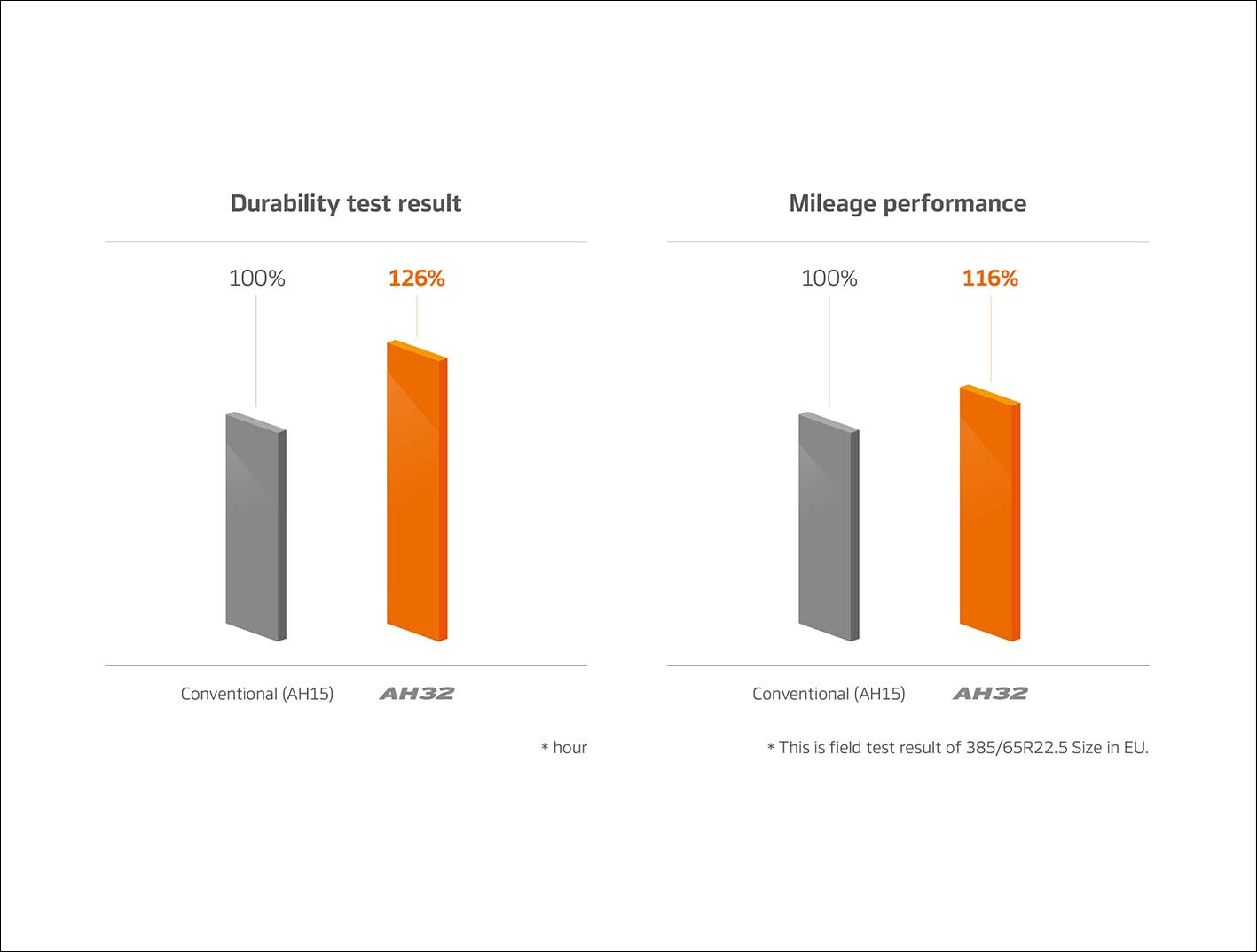

  • Test Result

    Durability & Mileage performance test

    Increased durability & Mileage : AH32 show better durability & mileage performance.

    Durability & Mileage performance test

    Increased durability & Mileage : AH32 show better durability & mileage performance.

e3maxal21_video_thumbnail
  • Spec

    • 385/65R22.5
      • Material Code 3003169
      • TT/TL L
      • Ply Rating 18
      • Measuring Rim 11.75X22.5
      • Section Width(inch) 15.1
      • Tread Width(inch) 12.1
      • Tread Depth(32nds) 21
      • Static Loaded Radius(inch) 19.8
      • Overall Diameter(inch) 42.6
      • Tire Weight(lbs.) 171
      • M+S N
      • 3PMSF N
      • Max Speed (mph) 75
      • Origin Korea
    • 425/65R22.5
      • Material Code 3003520
      • TT/TL L
      • Ply Rating 20
      • Measuring Rim 12.25X22.5
      • Section Width(inch) 16.3
      • Tread Width(inch) 12.3
      • Tread Depth(32nds) 20
      • Static Loaded Radius(inch) 20.4
      • Overall Diameter(inch) 44.5
      • Tire Weight(lbs.) 189
      • M+S N
      • 3PMSF N
      • Max Speed (mph) 75
      • Origin Korea
      • OEM NAVISTAR
