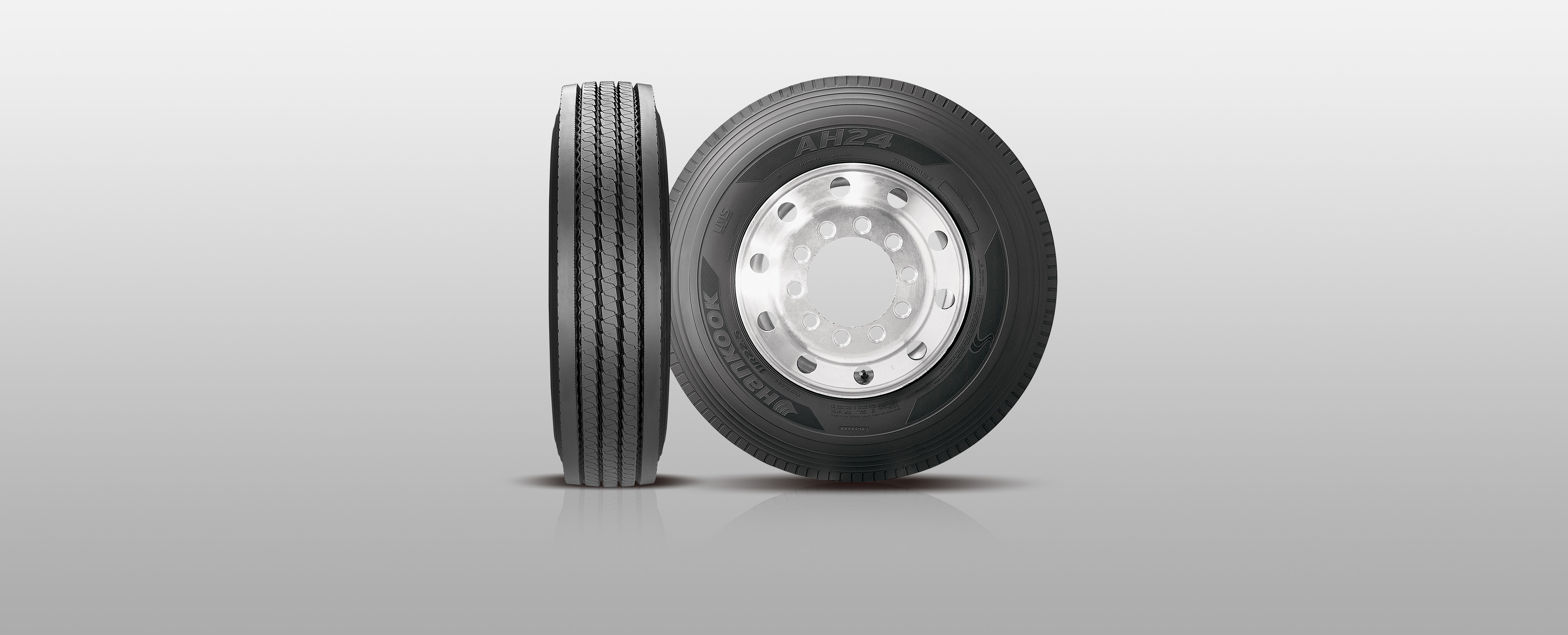

AH24

All position tire for premium regional haul

Smart Way

Application
  • Regional Haul
Truck Recommended
Where to Buy
Where to Buy 0
0Recently viewed products

Longer mileage tire for medium haul

Hankook Tire & Technology-Tires-Smart--AH24-Longer mileage tire for medium haul

Pattern design

Optimized pattern design for medium haul tire

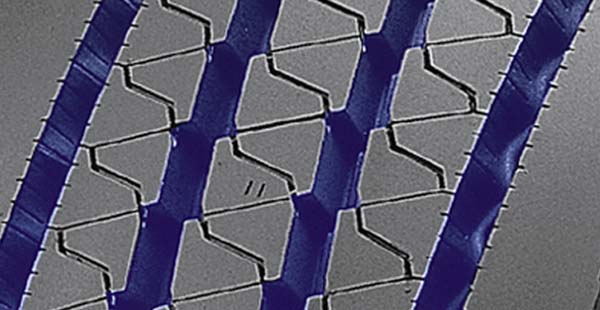

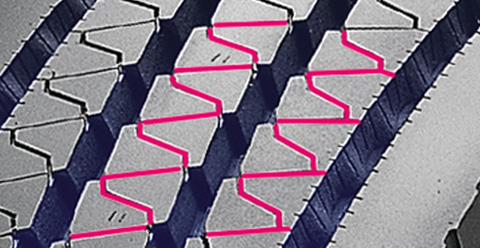

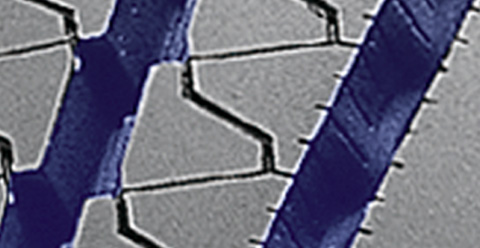

Zigzag grooves

Combination of straight and zigzag grooves provides better performance for traction and driving.

Closed shoulder rib

Closed shoulder rib provides a stability and better performance for even wear.

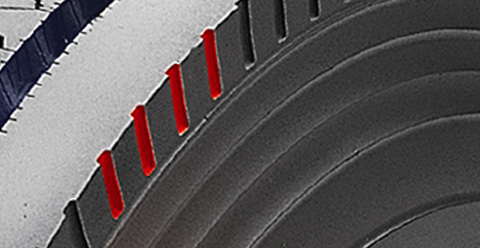

Multi sipes

Multi sipes provide better even wear.

Pattern Design

Optimized Pattern design for medium haul tire

Deeper groove and wider tread provide longer tread life. Unique tread design helps decrease stone retention.

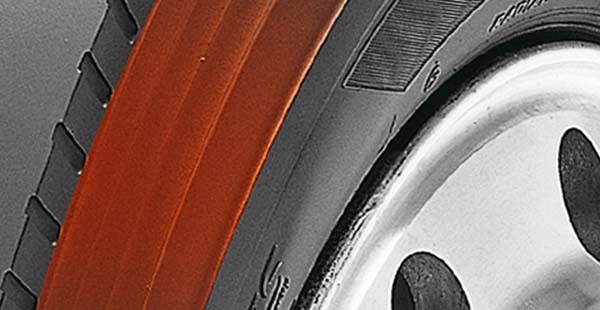

Sidewall protector rib resists cuts and abrasions from curbing and impact.

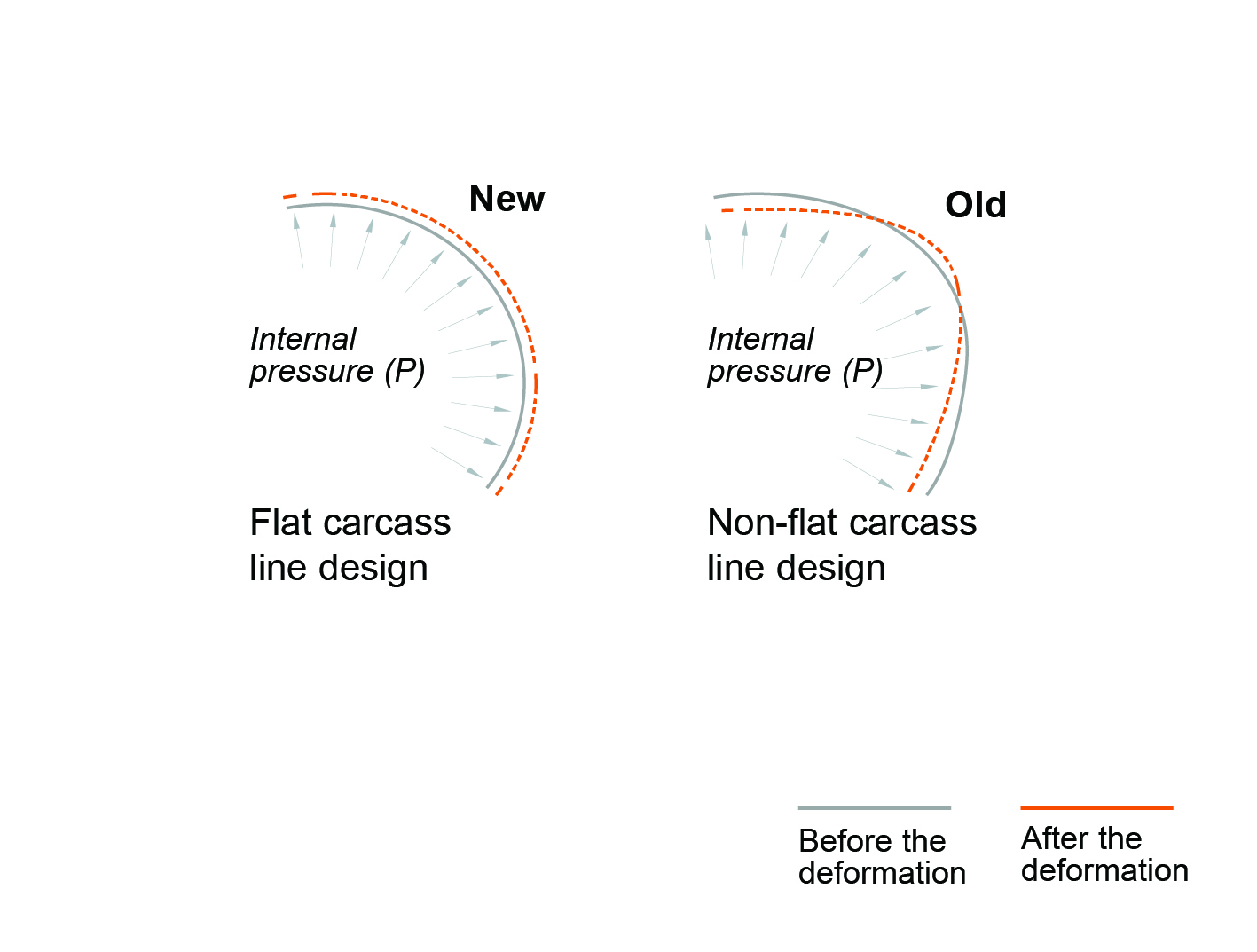

  • Stiffness Control Contour Theory Technology
    (SCCT Technology)

    SCCT Technology is designed to reduce profile deformation. If the carcass profile is not kept constant, the internal force on the carcass will be concentrated on a specific point, belt edge or carcass turn up edge. In contrast, SCCT Technology controls the dispersion of internal force for better durability.

    SCCT Technology is designed to reduce profile deformation. If the carcass profile is not kept constant, the internal force on the carcass will be concentrated on a specific point, belt edge or carcass turn up edge. In contrast, SCCT Technology controls the dispersion of internal force for better durability.

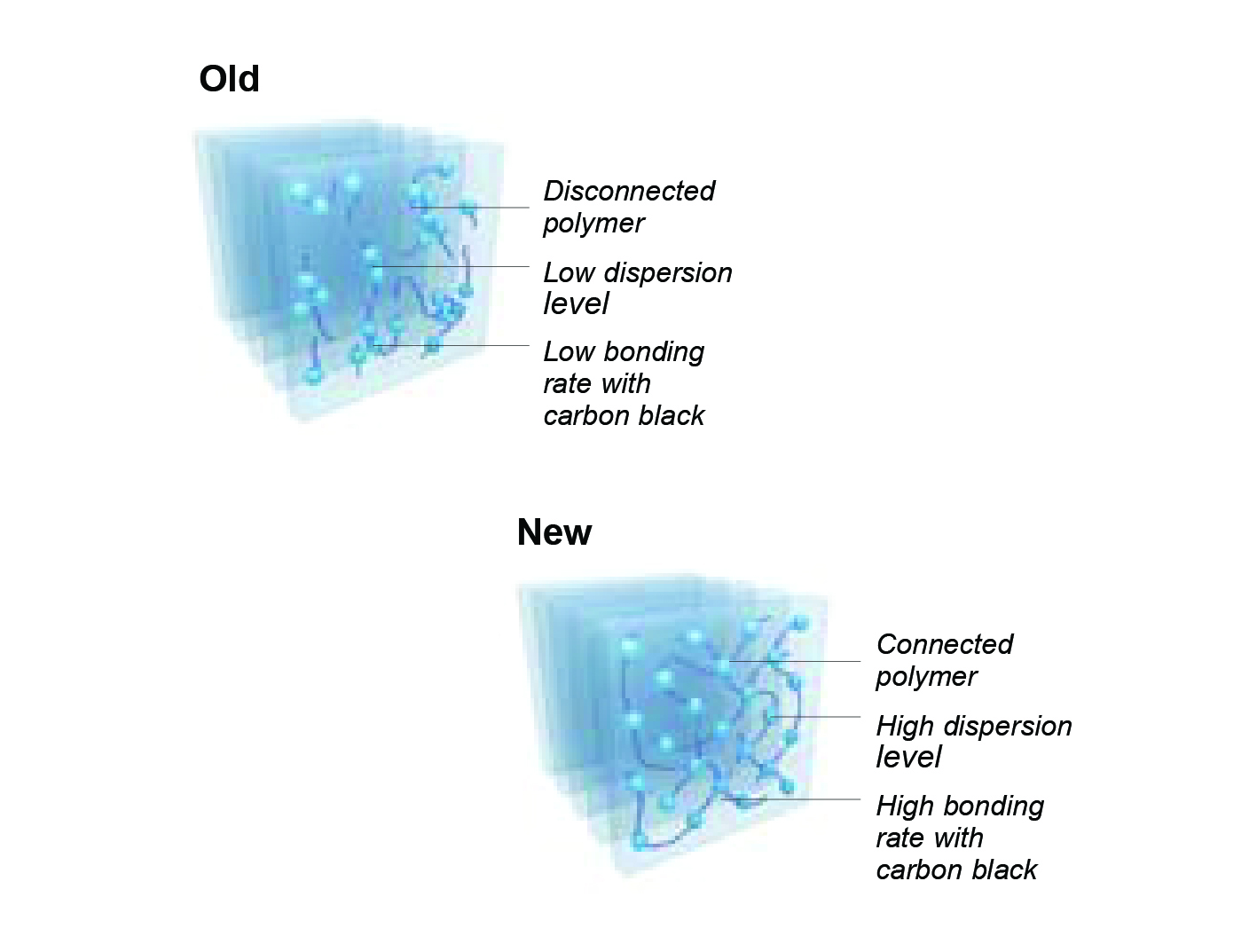

  • Innovative Mixing System (IMS)

    Innovative Mixing System (IMS) minimizes the breakdown and oxidation of polymer chains and has a higher dispersion degree of carbon black. The effects of IMS help to strengthen the bonding force between the carbon black and rubber to ensure longer mileage and to lower the heat generation of compounds for improved fuel efficiency.

    Innovative Mixing System (IMS) minimizes the breakdown and oxidation of polymer chains and has a higher dispersion degree of carbon black. The effects of IMS help to strengthen the bonding force between the carbon black and rubber to ensure longer mileage and to lower the heat generation of compounds for improved fuel efficiency.

e3maxal21_video_thumbnail

  • Spec

    • 11R22.5
      • Material Code 3001472
      • TT/TL L
      • Ply Rating 14
      • Measuring Rim 8.25X22.5
      • Section Width(inch) 11.1
      • Tread Width(inch) 8.8
      • Tread Depth(32nds) 22
      • Static Loaded Radius(inch) 19.5
      • Overall Diameter(inch) 41.7
      • Tire Weight(lbs.) 124
      • M+S N
      • 3PMSF N
      • Max Speed (mph) 75
      • Origin Korea
      • OEM DTNA
    • 11R22.5
      • Material Code 3001786
      • TT/TL L
      • Ply Rating 16
      • Measuring Rim 8.25X22.5
      • Section Width(inch) 11.1
      • Tread Width(inch) 8.8
      • Tread Depth(32nds) 22
      • Static Loaded Radius(inch) 19.5
      • Overall Diameter(inch) 41.7
      • Tire Weight(lbs.) 124
      • M+S N
      • 3PMSF N
      • Max Speed (mph) 75
      • Origin Korea
      • OEM DTNA
    • 11R24.5
      • Material Code 3001788
      • TT/TL L
      • Ply Rating 16
      • Measuring Rim 8.25X24.5
      • Section Width(inch) 11.3
      • Tread Width(inch) 8.8
      • Tread Depth(32nds) 22
      • Static Loaded Radius(inch) 20.3
      • Overall Diameter(inch) 43.7
      • Tire Weight(lbs.) 129
      • M+S N
      • 3PMSF N
      • Max Speed (mph) 75
      • Origin Korea
    • 285/75R24.5
      • Material Code 3001628
      • TT/TL L
      • Ply Rating 14
      • Measuring Rim 8.25X24.5
      • Section Width(inch) 11.3
      • Tread Width(inch) 8.8
      • Tread Depth(32nds) 22
      • Static Loaded Radius(inch) 19.6
      • Overall Diameter(inch) 41.6
      • Tire Weight(lbs.) 123
      • M+S N
      • 3PMSF N
      • Max Speed (mph) 75
      • Origin Korea
    • 295/75R22.5
      • Material Code 3001630
      • TT/TL L
      • Ply Rating 14
      • Measuring Rim 8.25×22.5
      • Section Width(inch) 11.4
      • Tread Width(inch) 8.8
      • Tread Depth(32nds) 22
      • Static Loaded Radius(inch) 18.9
      • Overall Diameter(inch) 40.4
      • Tire Weight(lbs.) 115
      • M+S N
      • 3PMSF N
      • Max Speed (mph) 75
      • Origin Korea
      • OEM DTNA
