iON evo
Evolutionized to perform more
-
Passenger Car
-
Electric Vehicle
-
Summer
-
Foam
-
Dry
-
Performance
-
Noise
-
Wet
-
RR
(Foam) : Acoustic foam inside the tire reduces interior noise
Evolutionized to perform more
.jpg)
-
TÜV SÜD - Tire Test Result
-

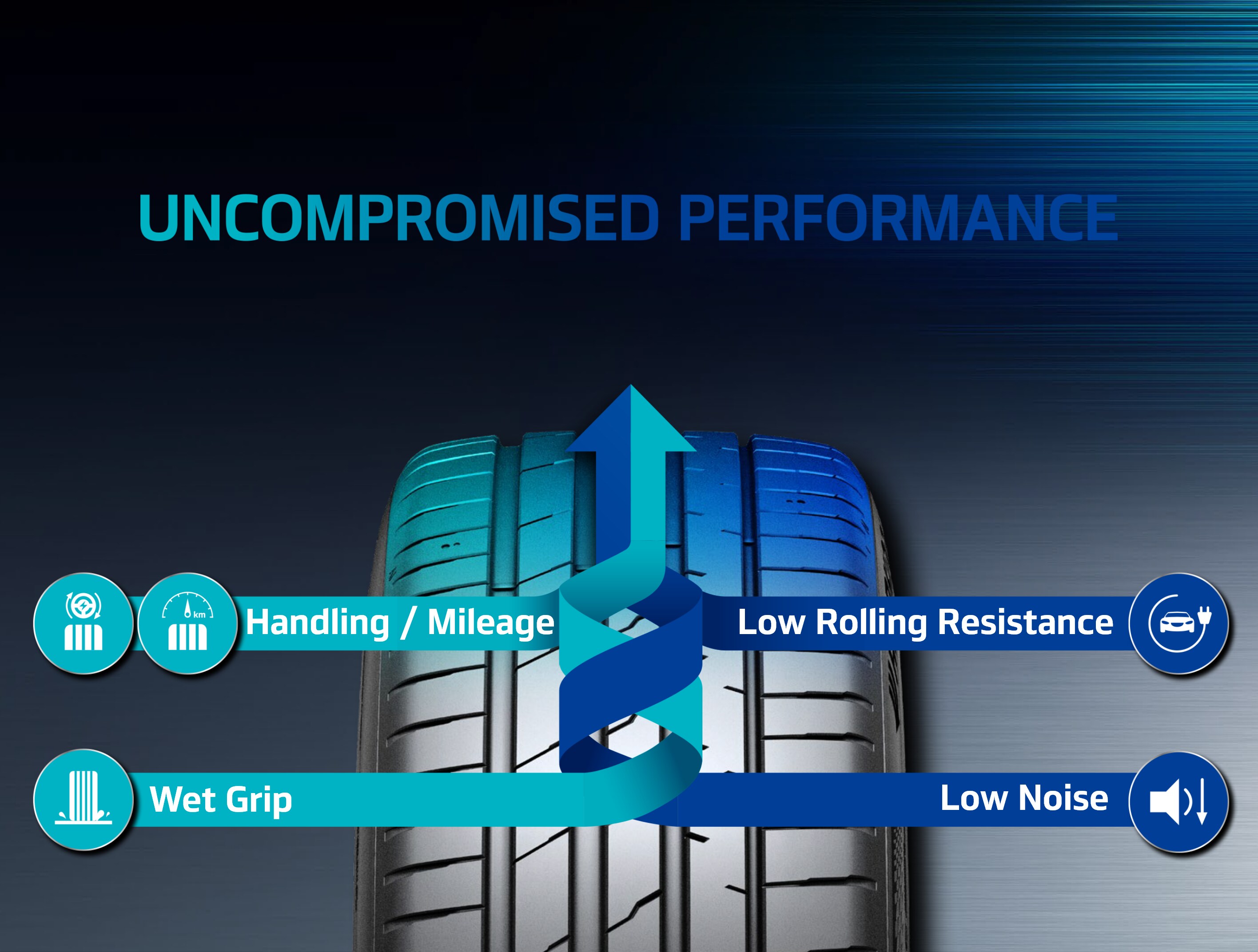

Double the Advantage
The iON evo pushes the limits of trade-offs to reach optimum performance. The iON evo is specifically tailored for electric vehicles, but also equipped with the best of both worlds.
8-4.png)
The iON evo pushes the limits of trade-offs to reach optimum performance. The iON evo is specifically tailored for electric vehicles, but also equipped with the best of both worlds.
-
Aced All Grades
Triple A rated in EU Tire label
The iON evo achieved a hat-trick in the EU Tire label grade which is extremely exceptional in the tire industry, and especially first for an EV exclusive tire.
8-8.png)
Triple A rated in EU Tire label
The iON evo achieved a hat-trick in the EU Tire label grade which is extremely exceptional in the tire industry, and especially first for an EV exclusive tire.
DRIVE IN PEACE
Noise Proof Technology
Electric motors are almost soundless which eventually causes the driver to hear more noise from tires. With the Hankook Sound AbsorberTM, the iON evo offers a quiet and pleasant ride in all speed ranges.
Minimized Tread Pattern Noise
Optimized Multi-Pitch Sequencing
Tire noise can be drastically reduced by optimizing the pitch sequence. The iON evo has optimized the number and size of pitches to listen more to what matters.
-
_4-7.png)
Conventional
-
_4-8.png)
iON evo
Pattern Noise Test Result
_4-6(2)(export).jpg)
_KV-1(export).jpg)
DRIVE IN PEACE
Noise Proof Technology
Electric motors are almost soundless which eventually causes the driver to hear more noise from tires. With the Hankook Sound AbsorberTM, the iON evo offers a quiet and pleasant ride in all speed ranges.
_09300.jpg)
GO FURTHER FOR MORE EXPERIENCE
Even Tread Wear And Enhanced Mileage
Battery weight makes electric vehicles up to 30% heavier than ICE vehicles, which frequently causes uneven wear on tires. The iON evo is made of a compound specifically made for electric vehicles to evenly spread road pressure and extend tire life in a healthier condition.
Extended Tread Life
EVolution Compound
Compozed with high-concentration silica and eco-friendly materials, the EVolution compound provides satisfactory mileage andfurther reduced rolling resistance.
(export).png)
Even Tread Wear
Optimized Ground Pressure Distribution
Tires equipped on electric vehicles wear out approximately 20% faster with uneven wear than on ICE vehicles. Designed to spread the ground pressure evenly, the iON evo provides longer usage and less replacement.
CHARGE LESS, CRUISE MORE
Extended Range
Hankook understands the concerns of loosing energy
while driving Electric Vehicles. By reducing the rolling resistance,
the battery lasts longer to drive a longer distance.
A few miles can be crucial during an emergency.
Further Reduced Rolling Resistance
Optimized Curing
The iON evo achieved the highest grade of LRR performance by applying an advanced compound and Hankook tire’s optimized curing technology which improves all parts of the tire equally.
* EU label grade varies by size. Please refer to specification details below.
_KV-1(export).jpg)
CHARGE LESS, CRUISE MORE
Extended Range
Hankook understands the concerns of loosing energy while driving Electric Vehicles. By reducing the rolling resistance, the battery lasts longer to drive a longer distance. A few miles can be crucial during an emergency.
3-1_0930.jpg)
BE IN COMPLETE CONTROL
Advanced Handling
Designed to bear the initial torque power of electric vehicle motors, the iON evo offers excellent handling and grip performance for premium electric vehicles.
Enhanced Cornering Stability
EV Contour Technology
Tire stiffness is essential to be improved to bear the weight of electric vehicles. Hankook’s EV Contour Technology increases cornering stiffness by 10% to advance electric vehicle handling performance.
new.png)
Improved Steering at High Speeds
Aramid Hybrid Reinforcement Belt
A reinforcement belt mixed with the most advanced fiber, Aramid, is applied on the iON evo to improve steering performance and maintain an optimized shape during high-speed driving.
(export).png)
Excellent Traction
Extended Shoulder Blocks with Optimized Rigidity
To prevent slippage cauzed by the high torque of electric vehicles, the pattern block rigidity is optimized with extended outside shoulder blocks for maximum road contact.
(export).png)
GRIP MAINTAINED IN THE RAIN
Enhanced Wet Grip
By achieving grade A in the EU tire labelling wet grip item
for all available sizes, the iON evo provides guaranteed wet performance without missing noise reduction to
maximize driving pleasure.
Wet Performance without missing Noise Reduction
Expanding Lateral Grooves
The lateral grooves are designed narrower on the inside to reduce air-pumping noise, and wider on the outside to secure wet performance. This is another double advantage of the iON evo.
_4-6(export)new.png)
Optimized Groove Size
To prevent groove resonance while driving, the iON evo has optimized the size of grooves. Expanding the 2 grooves on the inside wider has also improved drainage performance.
_4-6(2)(export).png)
_KV-1(export).jpg)
GRIP MAINTAINED IN THE RAIN
Enhanced Wet Grip
By achieving grade A in the EU tire labelling wet grip item for all available sizes, the iON evo provides guaranteed wet performance without missing noise reduction to maximize driving pleasure.
Gallery
Test Result
-
Very Good- Magazine
- Auto Bild
- Publication
- 2023
- Size
- 245/45R19
Award
-
Winner- Award
- iF Design Award
- Publication
- 2023
-
Winner- Award
- Red Dot Design Award
- Publication
- 2023
-
Spec
-
235/35ZR20 XL
- Material Code 1033439
- Ply Rating 4
- Load Index 92
- Max Load(lbs.) 1389
- Speed Symbol Y
- UTQG - Tread Wear 320
- UTQG - Traction AA
- UTQG - Temperature A
- Sidewall Color B
- Tread Depth(32nds) 8.5
- Tire Weight(lbs.) 23
- Revs/MI 789
- M+S N
- 3PMSF N
- Foam Y
- Run Flat N
- Sealant N
- Studded N
- Origin Hungary
-
235/45ZR18 XL
- Material Code 1033445
- Ply Rating 4
- Load Index 98
- Max Load(lbs.) 1653
- Speed Symbol W
- UTQG - Tread Wear 320
- UTQG - Traction AA
- UTQG - Temperature A
- Sidewall Color B
- Tread Depth(32nds) 8.5
- Tire Weight(lbs.) 23
- Revs/MI 795
- M+S N
- 3PMSF N
- Foam Y
- Run Flat N
- Sealant N
- Studded N
- Origin Korea
-
245/35ZR21 XL
- Material Code 1033440
- Ply Rating 4
- Load Index 96
- Max Load(lbs.) 1565
- Speed Symbol Y
- UTQG - Tread Wear 320
- UTQG - Traction AA
- UTQG - Temperature A
- Sidewall Color B
- Tread Depth(32nds) 8.5
- Tire Weight(lbs.) 25
- Revs/MI 753
- M+S N
- 3PMSF N
- Foam Y
- Run Flat N
- Sealant N
- Studded N
- Origin Hungary
-
245/45ZR19 XL
- Material Code 1033432
- Ply Rating 4
- Load Index 102
- Max Load(lbs.) 1874
- Speed Symbol Y
- UTQG - Tread Wear 320
- UTQG - Traction AA
- UTQG - Temperature A
- Sidewall Color B
- Tread Depth(32nds) 8.5
- Tire Weight(lbs.) 27
- Revs/MI 754
- M+S N
- 3PMSF N
- Foam Y
- Run Flat N
- Sealant N
- Studded N
- Origin Korea
-
245/45ZR20 XL
- Material Code 1033441
- Ply Rating 4
- Load Index 103
- Max Load(lbs.) 1929
- Speed Symbol Y
- UTQG - Tread Wear 320
- UTQG - Traction AA
- UTQG - Temperature A
- Sidewall Color B
- Tread Depth(32nds) 8.5
- Tire Weight(lbs.) 28
- Revs/MI 730
- M+S N
- 3PMSF N
- Foam Y
- Run Flat N
- Sealant N
- Studded N
- Origin Hungary
-
265/35ZR21 XL
- Material Code 1033454
- Ply Rating 4
- Load Index 101
- Max Load(lbs.) 1819
- Speed Symbol Y
- UTQG - Tread Wear 320
- UTQG - Traction AA
- UTQG - Temperature A
- Sidewall Color B
- Tread Depth(32nds) 8.5
- Tire Weight(lbs.) 28
- Revs/MI 738
- M+S N
- 3PMSF N
- Foam Y
- Run Flat N
- Sealant N
- Studded N
- Origin Hungary
-
285/40ZR20 XL
- Material Code 1033437
- Ply Rating 4
- Load Index 108
- Max Load(lbs.) 2205
- Speed Symbol Y
- UTQG - Tread Wear 320
- UTQG - Traction AA
- UTQG - Temperature A
- Sidewall Color B
- Tread Depth(32nds) 8.5
- Tire Weight(lbs.) 31
- Revs/MI 722
- M+S N
- 3PMSF N
- Foam Y
- Run Flat N
- Sealant N
- Studded N
- Origin Hungary
-
305/30ZR21 XL
- Material Code 1033451
- Ply Rating 4
- Load Index 104
- Max Load(lbs.) 1984
- Speed Symbol Y
- UTQG - Tread Wear 320
- UTQG - Traction AA
- UTQG - Temperature A
- Sidewall Color B
- Tread Depth(32nds) 8.5
- Tire Weight(lbs.) 30
- Revs/MI 740
- M+S N
- 3PMSF N
- Foam Y
- Run Flat N
- Sealant N
- Studded N
- Origin Hungary
-
235/55ZR19 XL
- Material Code 1033452
- Ply Rating 4
- Load Index 105
- Max Load(lbs.) 2039
- Speed Symbol Y
- UTQG - Tread Wear 320
- UTQG - Traction AA
- UTQG - Temperature A
- Sidewall Color B
- Tread Depth(32nds) 8.5
- Tire Weight(lbs.) 29
- Revs/MI 716
- M+S N
- 3PMSF N
- Foam Y
- Run Flat N
- Sealant N
- Studded N
- Origin Hungary
-
235/65R18 XL
- Material Code 1033433
- Ply Rating 4
- Load Index 110
- Max Load(lbs.) 2337
- Speed Symbol V
- UTQG - Tread Wear 320
- UTQG - Traction AA
- UTQG - Temperature A
- Sidewall Color B
- Tread Depth(32nds) 8.5
- Tire Weight(lbs.) 30
- Revs/MI 697
- M+S N
- 3PMSF N
- Foam Y
- Run Flat N
- Sealant N
- Studded N
- Origin Hungary
-
245/50R20 XL
- Material Code 1033446
- Ply Rating 4
- Load Index 105
- Max Load(lbs.) 2039
- Speed Symbol V
- UTQG - Tread Wear 320
- UTQG - Traction AA
- UTQG - Temperature A
- Sidewall Color B
- Tread Depth(32nds) 8.5
- Tire Weight(lbs.) 31
- Revs/MI 704
- M+S N
- 3PMSF N
- Foam Y
- Run Flat N
- Sealant N
- Studded N
- Origin Hungary
-
255/35ZR21 XL
- Material Code 1033450
- Ply Rating 4
- Load Index 98
- Max Load(lbs.) 1653
- Speed Symbol W
- UTQG - Tread Wear 320
- UTQG - Traction AA
- UTQG - Temperature A
- Sidewall Color B
- Tread Depth(32nds) 8.5
- Tire Weight(lbs.) 27
- Revs/MI 746
- M+S N
- 3PMSF N
- Foam Y
- Run Flat N
- Sealant N
- Studded N
- Origin Hungary
-
255/40R22 XL
- Material Code 1033449
- Ply Rating 4
- Load Index 103
- Max Load(lbs.) 1929
- Speed Symbol V
- UTQG - Tread Wear 320
- UTQG - Traction AA
- UTQG - Temperature A
- Sidewall Color B
- Tread Depth(32nds) 8.5
- Tire Weight(lbs.) 30
- Revs/MI 696
- M+S N
- 3PMSF N
- Foam Y
- Run Flat N
- Sealant N
- Studded N
- Origin Hungary
-
255/40ZR20 XL
- Material Code 1033434
- Ply Rating 4
- Load Index 101
- Max Load(lbs.) 1819
- Speed Symbol W
- UTQG - Tread Wear 320
- UTQG - Traction AA
- UTQG - Temperature A
- Sidewall Color B
- Tread Depth(32nds) 8.5
- Tire Weight(lbs.) 27
- Revs/MI 746
- M+S N
- 3PMSF N
- Foam Y
- Run Flat N
- Sealant N
- Studded N
- Origin Hungary
-
255/45ZR20 XL
- Material Code 1033453
- Ply Rating 4
- Load Index 105
- Max Load(lbs.) 2039
- Speed Symbol Y
- UTQG - Tread Wear 320
- UTQG - Traction AA
- UTQG - Temperature A
- Sidewall Color B
- Tread Depth(32nds) 8.5
- Tire Weight(lbs.) 29
- Revs/MI 720
- M+S N
- 3PMSF N
- Foam Y
- Run Flat N
- Sealant N
- Studded N
- Origin Hungary
-
275/35ZR21 XL
- Material Code 1033436
- Ply Rating 4
- Load Index 103
- Max Load(lbs.) 1929
- Speed Symbol Y
- UTQG - Tread Wear 320
- UTQG - Traction AA
- UTQG - Temperature A
- Sidewall Color B
- Tread Depth(32nds) 8.5
- Tire Weight(lbs.) 28
- Revs/MI 732
- M+S N
- 3PMSF N
- Foam Y
- Run Flat N
- Sealant N
- Studded N
- Origin Hungary
-
