Smart Flex AH35

All-season steer axle tyre for variable road conditions

M+S 3PMSF

Application
  • Regional Haul
Truck Recommended Available
0Recently viewed products

Special tread design and multi 3-Dimensional Sipes provide high
mileage and enhanced traction performance in various road conditions.

Hankook Tire & Technology-Tires-Smart--Smart Flex-AH35-Special tread design and multi 3-Dimensional Sipes provide high mileage and enhanced traction performance in various road conditions

Pattern design

Wide tread width

Wide tread width offers high pattern volume which results into a high mileage performance.

  • Conventional
  • AH35

Multi 3-Dimensional Sipes

Multi 3-Dimensional Sipes provide excellent traction leading to an enhanced driving performancce. The rib's reliable stiffness results in significant fuel savings.

Pattern design

Special tread pattern design with semi-sipes

Special tread pattern design with semi-sipes ensures even wear throughout the tyre's lifespan.

4 wavy and straight grooves

A combination of 4 wavy and straight grooves provide outstanding traction and drainage performance on long and regional haul multi-applications.

Stiffness Control Contour Theory Technology
(SCCT Technology)

SCCT Technology is designed to reduce profile deformation. If the carcass profile is not kept constant, the internal force on the carcass will be concentrated on a specific point, belt edge or carcass turn up edge. In contrast, SCCT Technology controls the dispersion of internal force for better durability.

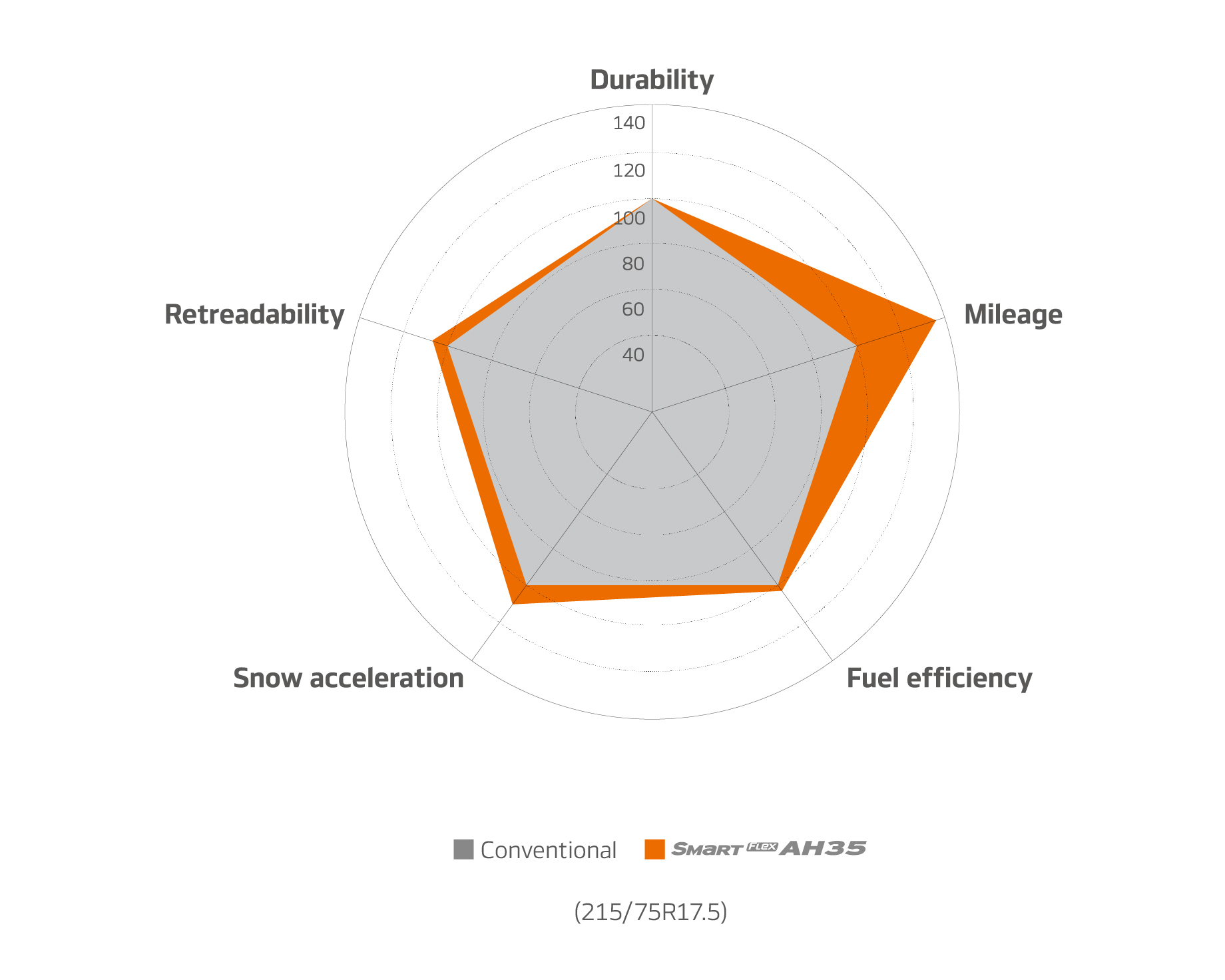

Test Results

Key Performance

Improved performance compared to its predecessor.

Key Performance

Mileage field test result.


Awards

  • Winner
    Source
    Red Dot
    Award
    2016 REDDOT
    Publication
    2016.01
  • Spec

    • 205/75R17.5
      • Tube Type / Tubeless L
      • Measuring Rim 6X17.5
      • Load Index 124/122M
      • Section Width(mm) 205
      • Tread Width(mm) 174
      • Tread Depth(mm) 12.1
      • Static Loaded Radius(mm) 353
      • Overall Diameter(mm) 756
      • M+S Y
      • 3PMSF Y
    • 205/75R17.5
      • Tube Type / Tubeless L
      • Measuring Rim 6.00X17.5
      • Load Index 124/122M
      • Section Width(mm) 205
      • Tread Width(mm) 174
      • Tread Depth(mm) 12.1
      • Static Loaded Radius(mm) 353
      • Overall Diameter(mm) 756
      • M+S Y
      • 3PMSF Y
    • 215/75R17.5
      • Tube Type / Tubeless L
      • Measuring Rim 6X17.5
      • Load Index 128/126M
      • Section Width(mm) 215
      • Tread Width(mm) 188
      • Tread Depth(mm) 12.6
      • Static Loaded Radius(mm) 359
      • Overall Diameter(mm) 774
      • M+S Y
      • 3PMSF Y
    • 215/75R17.5
      • Tube Type / Tubeless L
      • Measuring Rim 6.00X17.5
      • Load Index 126/124M
      • Section Width(mm) 215
      • Tread Width(mm) 188
      • Tread Depth(mm) 12.6
      • Static Loaded Radius(mm) 359
      • Overall Diameter(mm) 774
      • M+S Y
      • 3PMSF Y
    • 215/75R17.5
      • Tube Type / Tubeless L
      • Measuring Rim 6.00X17.5
      • Load Index 128/126M
      • Section Width(mm) 215
      • Tread Width(mm) 188
      • Tread Depth(mm) 12.6
      • Static Loaded Radius(mm) 359
      • Overall Diameter(mm) 774
      • M+S Y
      • 3PMSF Y
    • 215/75R17.5
      • Tube Type / Tubeless L
      • Measuring Rim 6X17.5
      • Load Index 126/124M
      • Section Width(mm) 215
      • Tread Width(mm) 188
      • Tread Depth(mm) 12.6
      • Static Loaded Radius(mm) 359
      • Overall Diameter(mm) 772
      • M+S Y
      • 3PMSF Y
    • 225/75R17.5
      • Tube Type / Tubeless L
      • Measuring Rim 6.75X17.5
      • Load Index 129/127M
      • Section Width(mm) 230
      • Tread Width(mm) 194
      • Tread Depth(mm) 12.1
      • Static Loaded Radius(mm) 366
      • Overall Diameter(mm) 790
      • M+S Y
      • 3PMSF Y
    • 225/75R17.5
      • Fuel Efficiency C
      • Wet Grip C
      • External Rolling Noise 67
      • Tube Type / Tubeless L
      • Measuring Rim 6.75X17.5
      • Load Index 129/127M
      • Section Width(mm) 228
      • Tread Width(mm) 194
      • Tread Depth(mm) 12.1
      • Static Loaded Radius(mm) 366
      • Overall Diameter(mm) 790
      • M+S Y
      • 3PMSF Y
    • 235/75R17.5
      • Tube Type / Tubeless L
      • Measuring Rim 6.75X17.5
      • Load Index 132/130M
      • Section Width(mm) 238
      • Tread Width(mm) 214
      • Tread Depth(mm) 12.1
      • Static Loaded Radius(mm) 370
      • Overall Diameter(mm) 797
      • M+S Y
      • 3PMSF Y
    • 235/75R17.5
      • Tube Type / Tubeless L
      • Measuring Rim 6.75X17.5
      • Load Index 132/130M
      • Section Width(mm) 238
      • Tread Width(mm) 214
      • Tread Depth(mm) 12.1
      • Static Loaded Radius(mm) 370
      • Overall Diameter(mm) 797
      • M+S Y
      • 3PMSF Y
    • 245/70R17.5
      • Fuel Efficiency C
      • Wet Grip C
      • External Rolling Noise 67
      • Tube Type / Tubeless L
      • Measuring Rim 7.5X17.5
      • Load Index 136/134M
      • Section Width(mm) 248
      • Tread Width(mm) 214
      • Tread Depth(mm) 12.1
      • Static Loaded Radius(mm) 370
      • Overall Diameter(mm) 796
      • M+S Y
      • 3PMSF Y
    • 245/70R17.5
      • Fuel Efficiency C
      • Wet Grip C
      • External Rolling Noise 67
      • Tube Type / Tubeless L
      • Measuring Rim 7.5X17.5
      • Load Index 136/134M
      • Section Width(mm) 248
      • Tread Width(mm) 214
      • Tread Depth(mm) 12.1
      • Static Loaded Radius(mm) 370
      • Overall Diameter(mm) 796
      • M+S Y
      • 3PMSF Y
    • 245/70R19.5
      • Tube Type / Tubeless L
      • Measuring Rim 7.5X19.5
      • Load Index 136/134M
      • Section Width(mm) 249
      • Tread Width(mm) 204
      • Tread Depth(mm) 13.6
      • Static Loaded Radius(mm) 394
      • Overall Diameter(mm) 845
      • M+S Y
      • 3PMSF Y
    • 245/70R19.5
      • Fuel Efficiency C
      • Wet Grip C
      • External Rolling Noise 67
      • Tube Type / Tubeless L
      • Measuring Rim 7.5x19.5
      • Load Index 136/134M
      • Section Width(mm) 249
      • Tread Width(mm) 204
      • Tread Depth(mm) 13.6
      • Static Loaded Radius(mm) 394
      • Overall Diameter(mm) 845
      • M+S Y
      • 3PMSF Y
    • 245/70R19.5
      • Fuel Efficiency C
      • Wet Grip C
      • External Rolling Noise 67
      • Tube Type / Tubeless L
      • Measuring Rim 7.50X19.5
      • Load Index 133/132M
      • Section Width(mm) 252
      • Tread Width(mm) 204
      • Tread Depth(mm) 13.6
      • Overall Diameter(mm) 842
      • M+S Y
      • 3PMSF Y
    • 245/70R19.5
      • Tube Type / Tubeless L
      • Measuring Rim 7.5x19.5
      • Load Index 133/132M
      • Section Width(mm) 249
      • Tread Width(mm) 204
      • Tread Depth(mm) 13.6
      • Static Loaded Radius(mm) 394
      • Overall Diameter(mm) 845
      • M+S Y
      • 3PMSF Y
    • 265/70R17.5
      • Fuel Efficiency C
      • Wet Grip C
      • External Rolling Noise 67
      • Tube Type / Tubeless L
      • Measuring Rim 7.5X17.5
      • Load Index 140/138M
      • Section Width(mm) 259
      • Tread Width(mm) 220
      • Tread Depth(mm) 12.6
      • Static Loaded Radius(mm) 376
      • Overall Diameter(mm) 817
      • M+S Y
      • 3PMSF Y
    • 265/70R17.5
      • Fuel Efficiency C
      • Wet Grip C
      • External Rolling Noise 67
      • Tube Type / Tubeless L
      • Measuring Rim 7.5X17.5
      • Load Index 140/138M
      • Section Width(mm) 259
      • Tread Width(mm) 220
      • Tread Depth(mm) 12.6
      • Static Loaded Radius(mm) 376
      • Overall Diameter(mm) 817
      • M+S Y
      • 3PMSF Y
    • 265/70R19.5
      • Tube Type / Tubeless L
      • Measuring Rim 7.5X19.5
      • Load Index 140/138M
      • Section Width(mm) 257
      • Tread Width(mm) 220
      • Tread Depth(mm) 13.1
      • Static Loaded Radius(mm) 402
      • Overall Diameter(mm) 871
      • M+S Y
      • 3PMSF Y
    • 265/70R19.5
      • Fuel Efficiency C
      • Wet Grip C
      • External Rolling Noise 67
      • Tube Type / Tubeless L
      • Measuring Rim 7.50X19.5
      • Load Index 140/138M
      • Section Width(mm) 257
      • Tread Width(mm) 220
      • Tread Depth(mm) 13.1
      • Static Loaded Radius(mm) 402
      • Overall Diameter(mm) 871
      • M+S Y
      • 3PMSF Y
    • 285/70R19.5
      • Tube Type / Tubeless L
      • Measuring Rim 8.25X19.5
      • Load Index 146/144M
      • Section Width(mm) 280
      • Tread Width(mm) 230
      • Tread Depth(mm) 13.1
      • Static Loaded Radius(mm) 412
      • Overall Diameter(mm) 894
      • M+S Y
      • 3PMSF Y
    • 285/70R19.5
      • Tube Type / Tubeless L
      • Measuring Rim 8.25X19.5
      • Load Index 146/144M
      • Section Width(mm) 280
      • Tread Width(mm) 230
      • Tread Depth(mm) 13.1
      • Static Loaded Radius(mm) 412
      • Overall Diameter(mm) 894
      • M+S Y
      • 3PMSF Y
    • 305/70R19.5
      • Fuel Efficiency C
      • Wet Grip C
      • External Rolling Noise 71
      • Tube Type / Tubeless L
      • Measuring Rim 9X19.5
      • Load Index 148/145M
      • Section Width(mm) 304
      • Tread Width(mm) 248
      • Tread Depth(mm) 14.5
      • Static Loaded Radius(mm) 424
      • Overall Diameter(mm) 919
      • M+S Y
      • 3PMSF Y
    • 305/70R19.5
      • Tube Type / Tubeless L
      • Measuring Rim 9X19.5
      • Load Index 148/145M
      • Section Width(mm) 304
      • Tread Width(mm) 248
      • Tread Depth(mm) 14.5
      • Static Loaded Radius(mm) 424
      • Overall Diameter(mm) 919
      • M+S Y
      • 3PMSF Y
    • 750R16
      • Tube Type / Tubeless T
      • Measuring Rim 6.0X16
      • Load Index 122/118L
      • Section Width(mm) 214
      • Tread Width(mm) 144
      • Tread Depth(mm) 11.2
      • Overall Diameter(mm) 809
      • M+S N
      • 3PMSF N
    • 750R16
      • Fuel Efficiency D
      • Wet Grip C
      • External Rolling Noise 70
      • Tube Type / Tubeless T
      • Measuring Rim 6.00X16
      • Load Index 126/122L
      • Section Width(mm) 213
      • Tread Width(mm) 149/1
      • Tread Depth(mm) 13.1
      • Static Loaded Radius(mm) 376
      • Overall Diameter(mm) 806
      • M+S N
      • 3PMSF N
    • 8.5R17.5
      • Tube Type / Tubeless L
      • Measuring Rim 6.00X17.5
      • Load Index 121/120L
      • Section Width(mm) 211
      • Tread Width(mm) 146
      • Tread Depth(mm) 12.0
      • Static Loaded Radius(mm) 373
      • Overall Diameter(mm) 802
      • M+S Y
      • 3PMSF Y
    • 8.5R17.5
      • Tube Type / Tubeless L
      • Measuring Rim 6.00X17.5
      • Load Index 121/120L
      • Section Width(mm) 211
      • Tread Width(mm) 146
      • Tread Depth(mm) 12.0
      • Static Loaded Radius(mm) 373
      • Overall Diameter(mm) 802
      • M+S Y
      • 3PMSF Y
    • 8R17.5
      • Fuel Efficiency D
      • Wet Grip C
      • External Rolling Noise 71
      • Tube Type / Tubeless L
      • Measuring Rim 6.0X17.5
      • Load Index 117/116L
      • Section Width(mm) 200
      • Tread Width(mm) 136
      • Tread Depth(mm) 11.0
      • Static Loaded Radius(mm) 364
      • Overall Diameter(mm) 783
      • M+S Y
      • 3PMSF Y
    • 9.5R17.5
      • Tube Type / Tubeless L
      • Measuring Rim 6.75X17.5
      • Load Index 129/127L
      • Section Width(mm) 235
      • Tread Width(mm) 178
      • Tread Depth(mm) 13.6
      • Static Loaded Radius(mm) 392
      • Overall Diameter(mm) 841
      • M+S Y
      • 3PMSF Y
    • 9.5R17.5
      • Tube Type / Tubeless L
      • Measuring Rim 6.75X17.5
      • Load Index 129/127L
      • Section Width(mm) 235
      • Tread Width(mm) 178
      • Tread Depth(mm) 13.6
      • Static Loaded Radius(mm) 392
      • Overall Diameter(mm) 841
      • M+S Y
      • 3PMSF Y
