Smart Work DM09

Drive axle tyre for mixed usage and enhanced on and off-road performance.


  • On & Off Road
Dump Recommended
0Recently viewed products

Tough on site, safe on the road

Hankook Tire & Technology-Tires-Smart-Smart Work-DM09-Tough on site, safe on the road

Pattern design

Directional pattern

The directional pattern is adopted for excellent handling meaning better traction performance is provided even in wet and muddy conditions.

Interblock tie-bar

The interblock tie-bar at the centre guarantees outstanding straight driving performance and impact dispersion for blocks, thereby improving durability.

Pattern design

Tapered block and open shoulder design

The improved groove shape design ensures tyre reliabilty by effectively discharging stone chips. The tapered block design ensures a flexible response to lateral impact.

Lateral asymmetrical grooves

Regularly misalined lateral grooves help to prevent impact burst.

TBR Technology

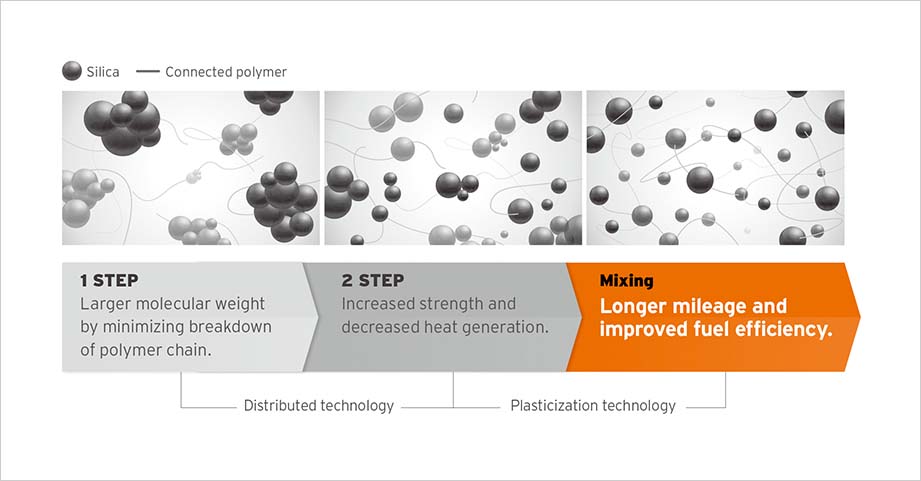

Innovative Mixing System(IMS)

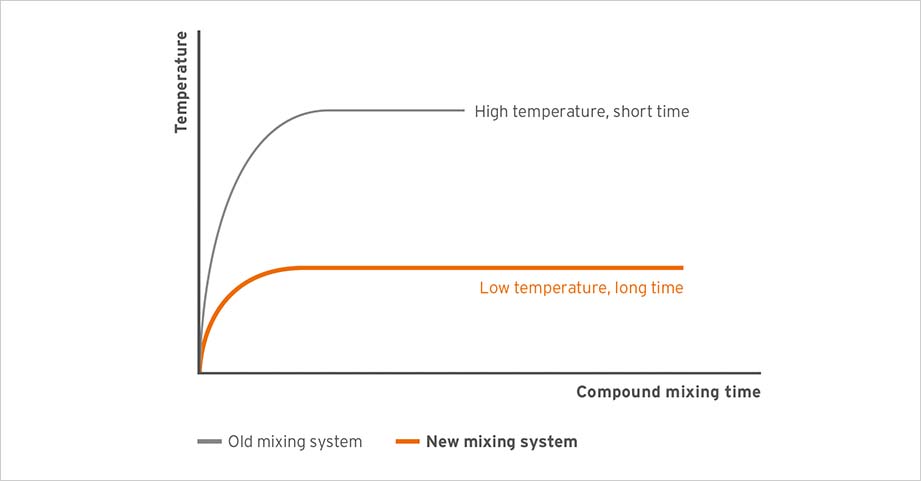

Innovative Mixing System (IMS) minimises the breakdown and oxidation of polymer chains and has a higher dispersion degree of carbon black. The effects of IMS help to strengthen the bonding force between the carbon black and rubber to ensure longer mileage and to lower the heat generation of compounds for improved fuel efficiency.

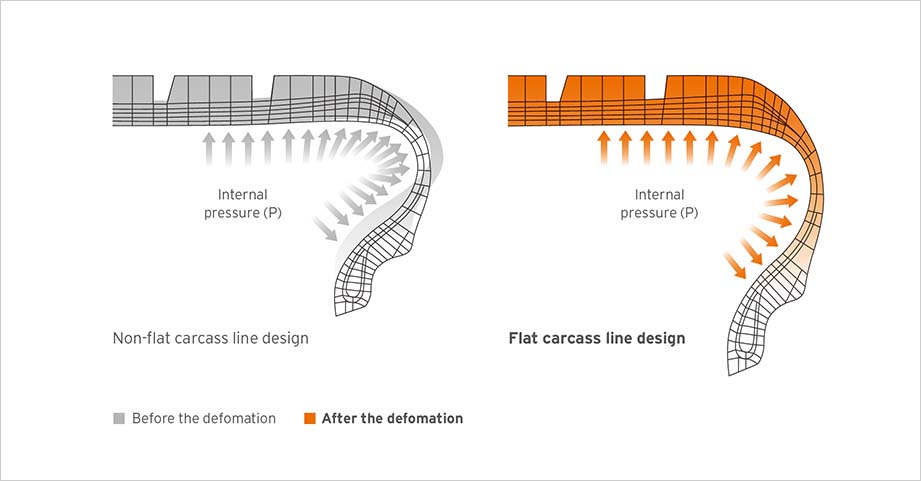

Stiffness Control Contour Theory Technology(SCCT Technology)

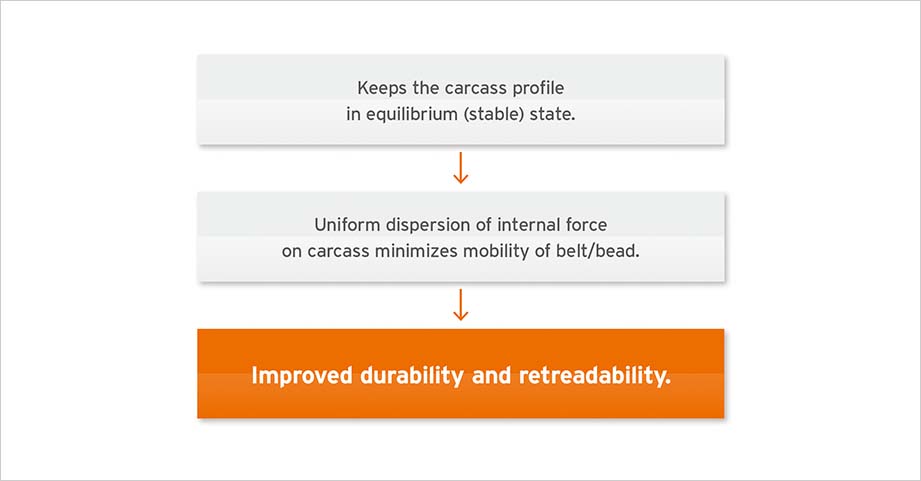

SCCT Technology is designed to reduce profile deformation. If the carcass profile is not kept constant, the internal force on the carcass will be concentrated on a specific point, belt edge or carcass turn up edge. In contrast, SCCT Technology controls the dispersion of internal force for better durability.

Tyre Structure

Test Result

Improved performance compared to predecessor tyre

Mileage field test result

  • Spec

    • 11R22.5
      • Fuel Efficiency E
      • Wet Grip C
      • External Rolling Noise 70
      • Tube Type / Tubeless L
      • Ply Rating 16
      • Measuring Rim 8.25X22.5
      • Load Index 148/145K
      • Section Width(mm) 286
      • Tread Width(mm) 244
      • Tread Depth(mm) 23.5
      • Static Loaded Radius(mm) 504
      • Overall Diameter(mm) 1071
      • M+S Y
      • 3PMSF Y
      • Origin China
    • 315/80R22.5
      • Fuel Efficiency D
      • Wet Grip C
      • External Rolling Noise 70
      • Tube Type / Tubeless L
      • Ply Rating 18
      • Measuring Rim 9.0X22.5
      • Load Index 156/150K
      • Section Width(mm) 320
      • Tread Width(mm) 272
      • Tread Depth(mm) 21.8
      • Static Loaded Radius(mm) 505
      • Overall Diameter(mm) 1093
      • M+S Y
      • 3PMSF Y
      • Origin China
