Smart Work AM15+
All-position tyre with high mileage for on and off-road conditions
M+S
3PMSF
Application
-

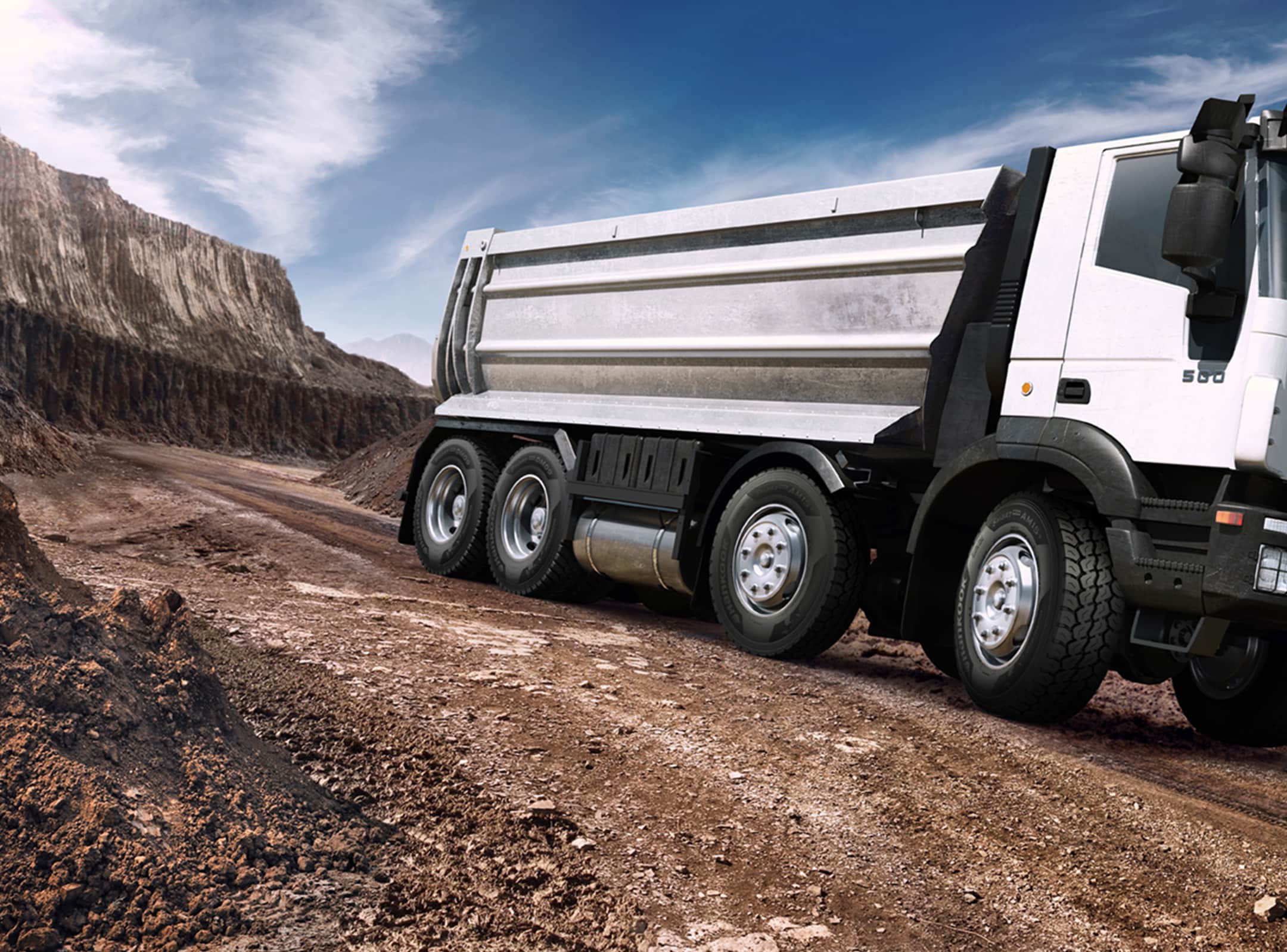

On & Off Road
Dump
Recommended
Available
/dp/steer(all)-dump-1.svg){kind=icon}
/dp/steer(all)-dump-2.svg){kind=icon}
/dp/steer(all)-dump-3.svg){kind=icon}

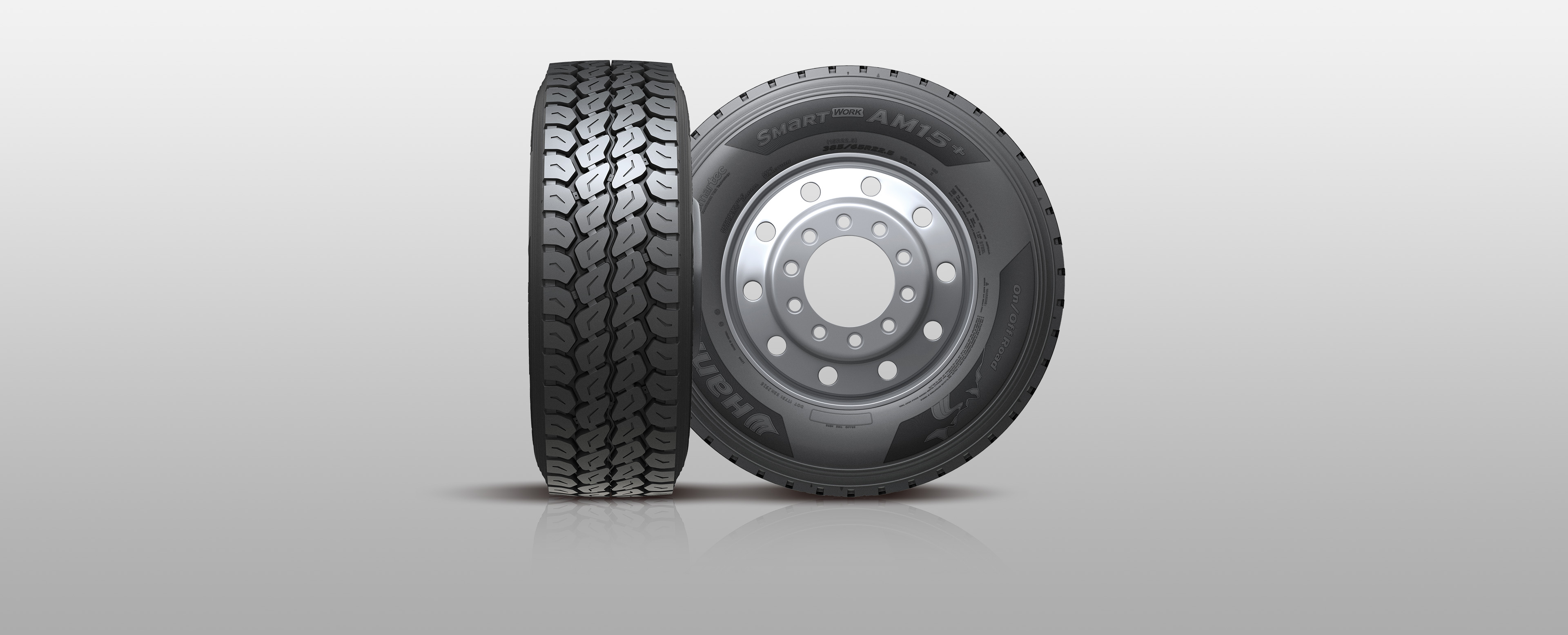

All position radial tyre for on and off road
.jpg)
.jpg)
Design features

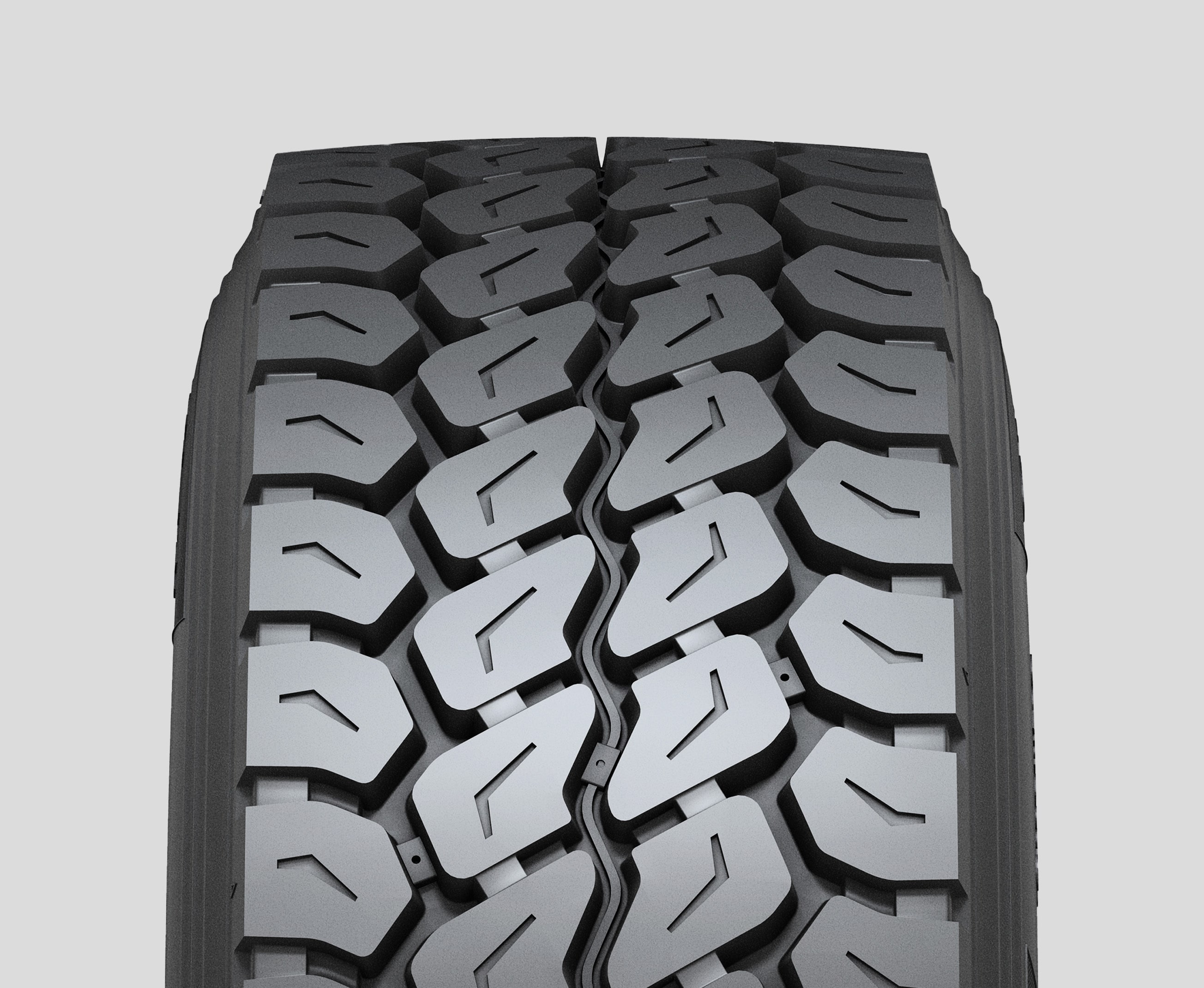

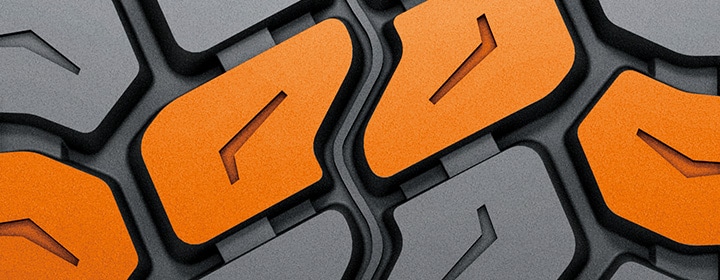

Extra-wide tread blocks and deep grooves
Extra-wide tread blocks and deep grooves ensure ultra-high mileage.
.jpg)

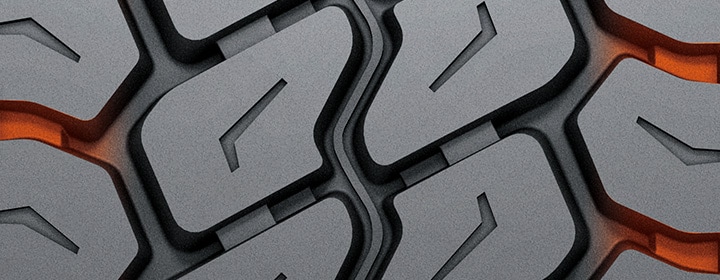

Optimised tie-bar
Open shoulder blocks with optimised tie-bars prevent irregular wear and provide excellent traction performance for off-road conditions.
.jpg)

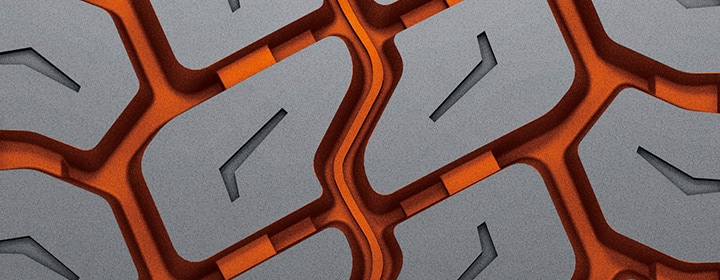

Extra-wide grooves
Extra-wide grooves are designed for excellent stone rejection and improved traction.
.jpg)
-
Spec
- 22.5”
-
385/65R22.5
- Fuel Efficiency C
- Wet Grip B
- External Rolling Noise A
- Tube Type / Tubeless L
- Ply Rating 24
- Measuring Rim 11.75×22.5
- Load Index 164K
- Section Width(mm) 380
- Tread Width(mm) 304
- Tread Depth(mm) 17.9
- Static Loaded Radius(mm) 498
- Overall Diameter(mm) 1080
- M+S Y
- 3PMSF Y
- 19.5”
- 22.5”
-
265/70R19.5
- Fuel Efficiency D
- Wet Grip B
- External Rolling Noise A
- Tube Type / Tubeless L
- Ply Rating 18
- Measuring Rim 7.5X19.5
- Load Index 143/141J
- Section Width(mm) 259
- Tread Width(mm) 220
- Tread Depth(mm) 16.0
- Static Loaded Radius(mm) 405
- Overall Diameter(mm) 876
- M+S Y
- 3PMSF Y
-
275/70R22.5
- Fuel Efficiency D
- Wet Grip B
- External Rolling Noise A
- Tube Type / Tubeless L
- Ply Rating 16
- Measuring Rim 8.25X22.5
- Load Index 148/145K
- Section Width(mm) 275
- Tread Width(mm) 240
- Tread Depth(mm) 18.0
- Static Loaded Radius(mm) 451
- Overall Diameter(mm) 970
- M+S Y
- 3PMSF Y
