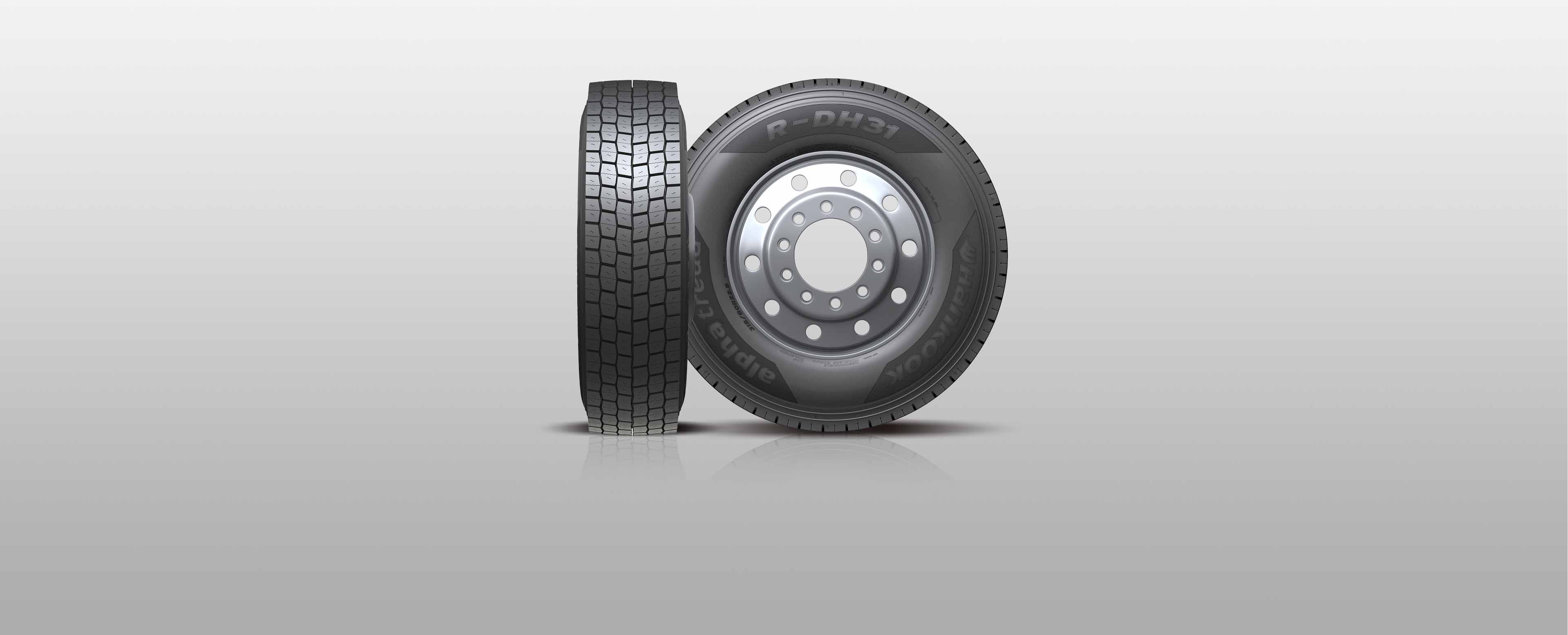

Smart Flex DH31

Drive axle tyre designed for multi purpose application

M+S 3PMSF

Application
  • Regional Haul
Tractor/Trailer Recommended Available
0

Hybrid segment tyres for multi-purpose application

  • Product Concept

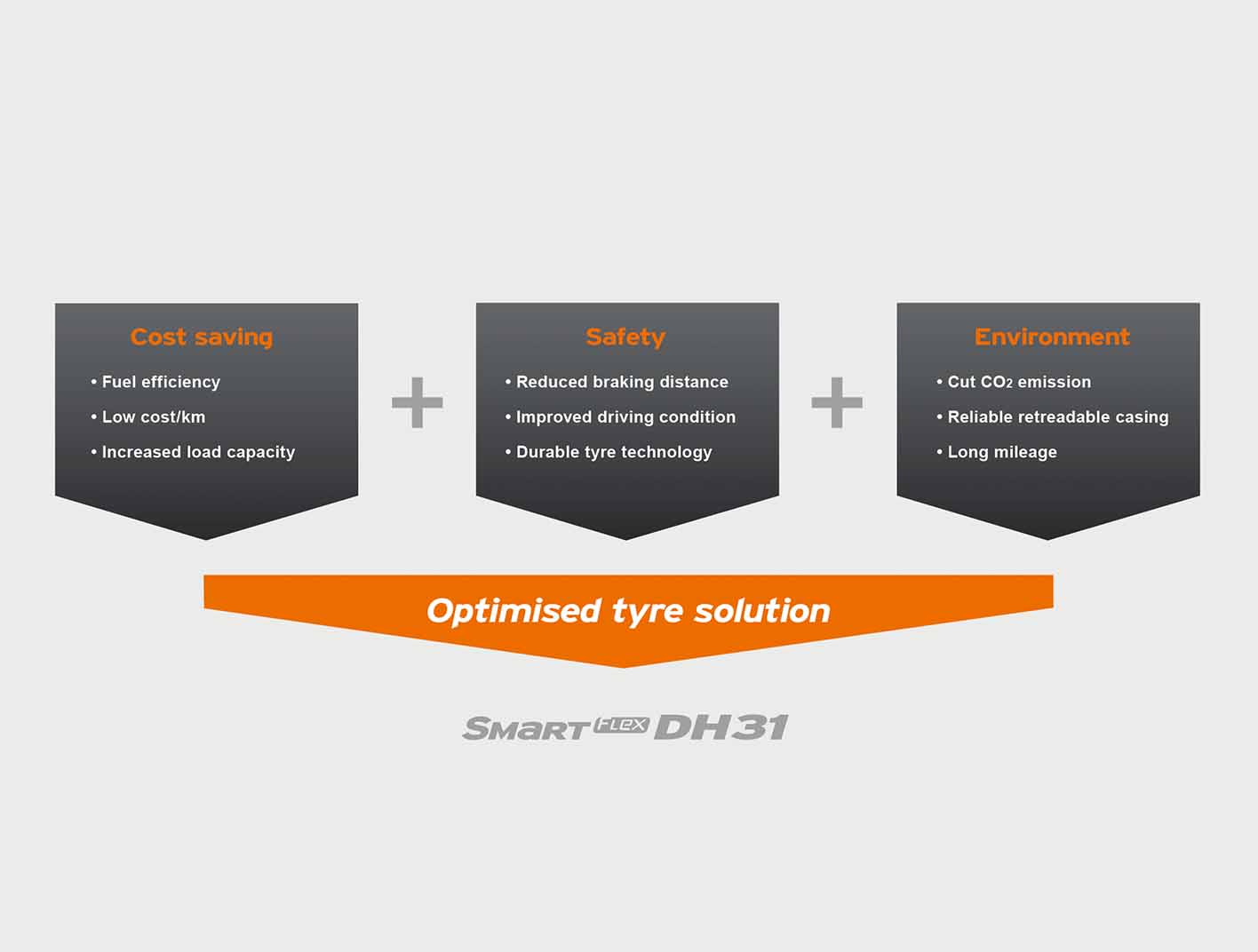

    Optimised tyre solution

    Optimised tyre solution

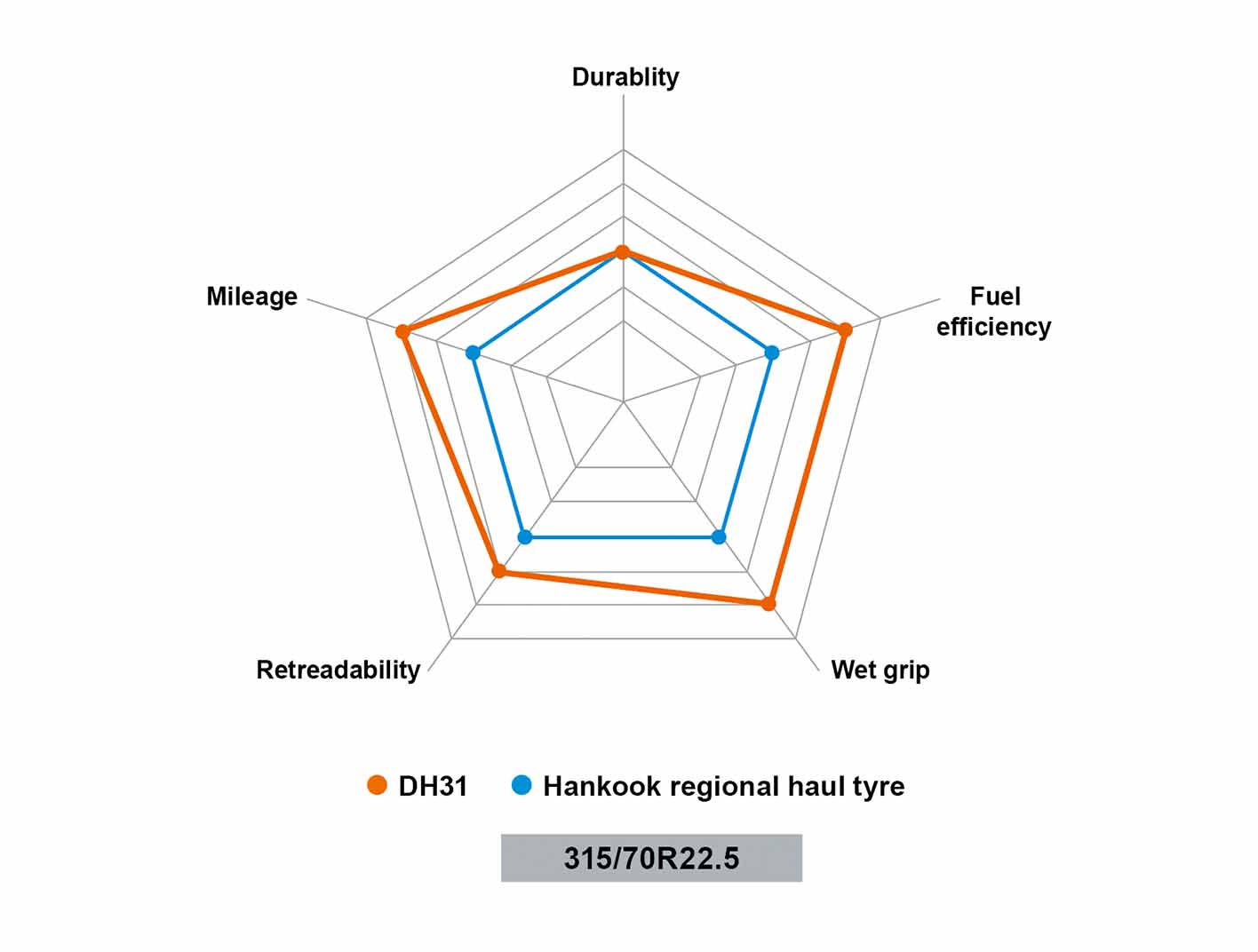

Performance Test

Cost Saving

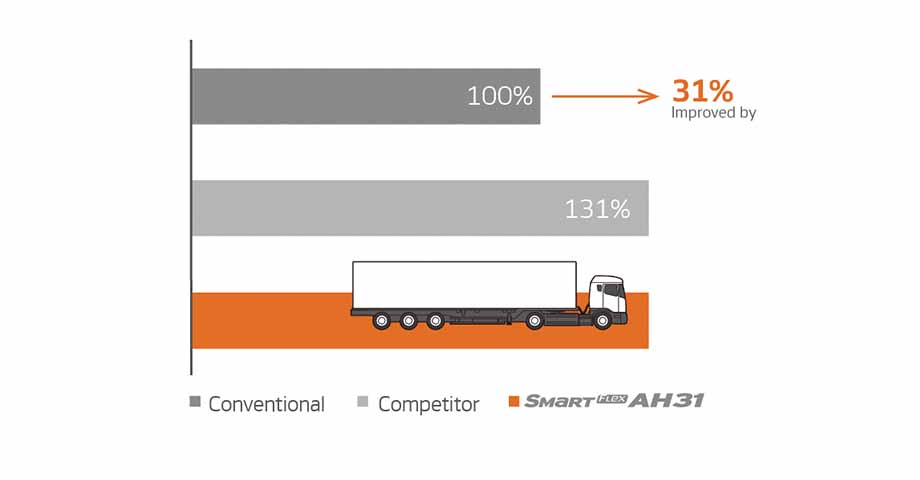

Fuel efficiency / rolling resistance

Safety

Durability - Result based on indoor test at Hankook's R&D Center

Environment

Mileage

Pattern Design

Adopted new technology and design provide increased safety with an economic advantage to the customer

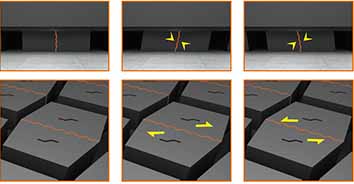

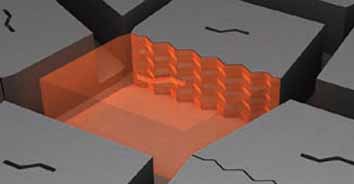

3-Dimensional Sipe

Deliver excellent mileage and traction performance with reduced irregular wear which enhances fuel efficiency.

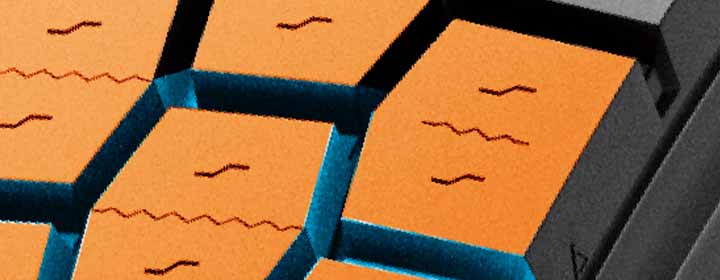

Combination structure of rib and 6 angle block pattern

Improved grip, increased mileage and enhanced handling performance.

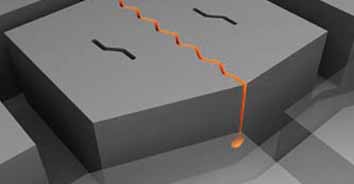

Self-regenerating sipes (S.R Sipe)

Controls tearing and wearing of tread with hidden grooves whilst maintaining traction at the end of the groove wear.

Pattern Design

Adopted new technology and design provide increased safety with an economic advantage to the customer

  • Test Result

  • Spec

    • 275/70R22.5
      • Fuel Efficiency D
      • Wet Grip C
      • External Rolling Noise 73
      • Tube Type / Tubeless L
      • Ply Rating 16
      • Measuring Rim 8.25X22.5
      • Load Index 148/145M
      • Section Width(mm) 276
      • Tread Width(mm) 240
      • Tread Depth(mm) 17.7
      • Static Loaded Radius(mm) 451
      • Overall Diameter(mm) 967
      • M+S Y
      • 3PMSF Y
