DM04

Strong driving power in the mud and construction sites

M+S

Application
  • On & Off Road
Dump Recommended
0Recently viewed products

Strong driving power in the mud and constrution sites

Hankook Tire & Technology-Tires-Smart-DM04-Strong driving power in the mud and constrution sites

Pattern design

Aggressive tread pattern

Aggressive lug tread pattern with open shoulder enhances powerful grip and improves self-cleaning capability.

Tread blocks

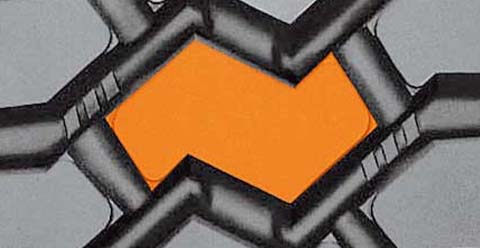

Massive tread blocks and specific tread compound offer superb resistance against cuts and penetrations.

Pattern design

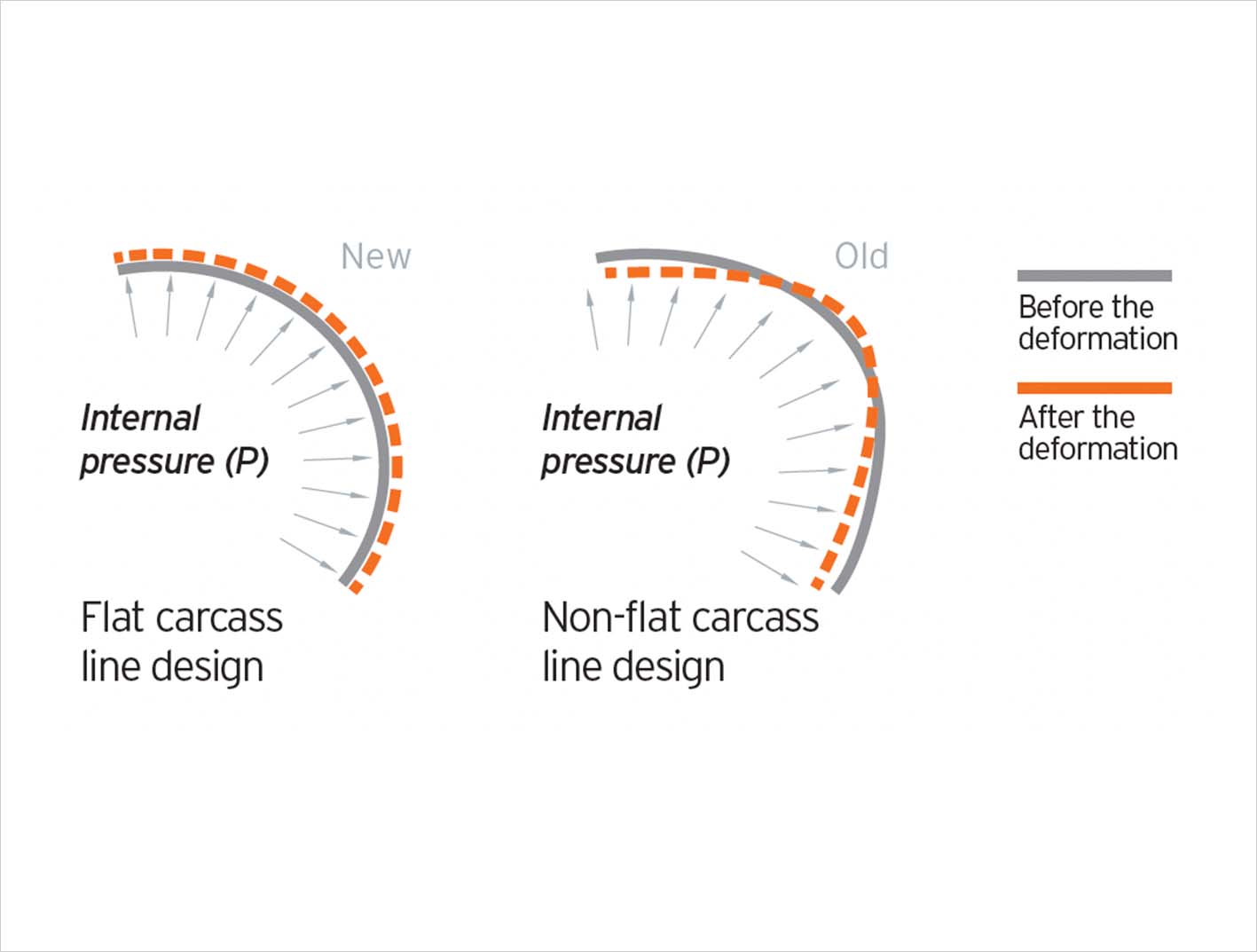

  • New Profile Design Technology

    Flat carcass line keeps the uniform dispersion of internal force.

    Flat carcass line keeps the uniform dispersion of internal force.

  • New Compound Technology

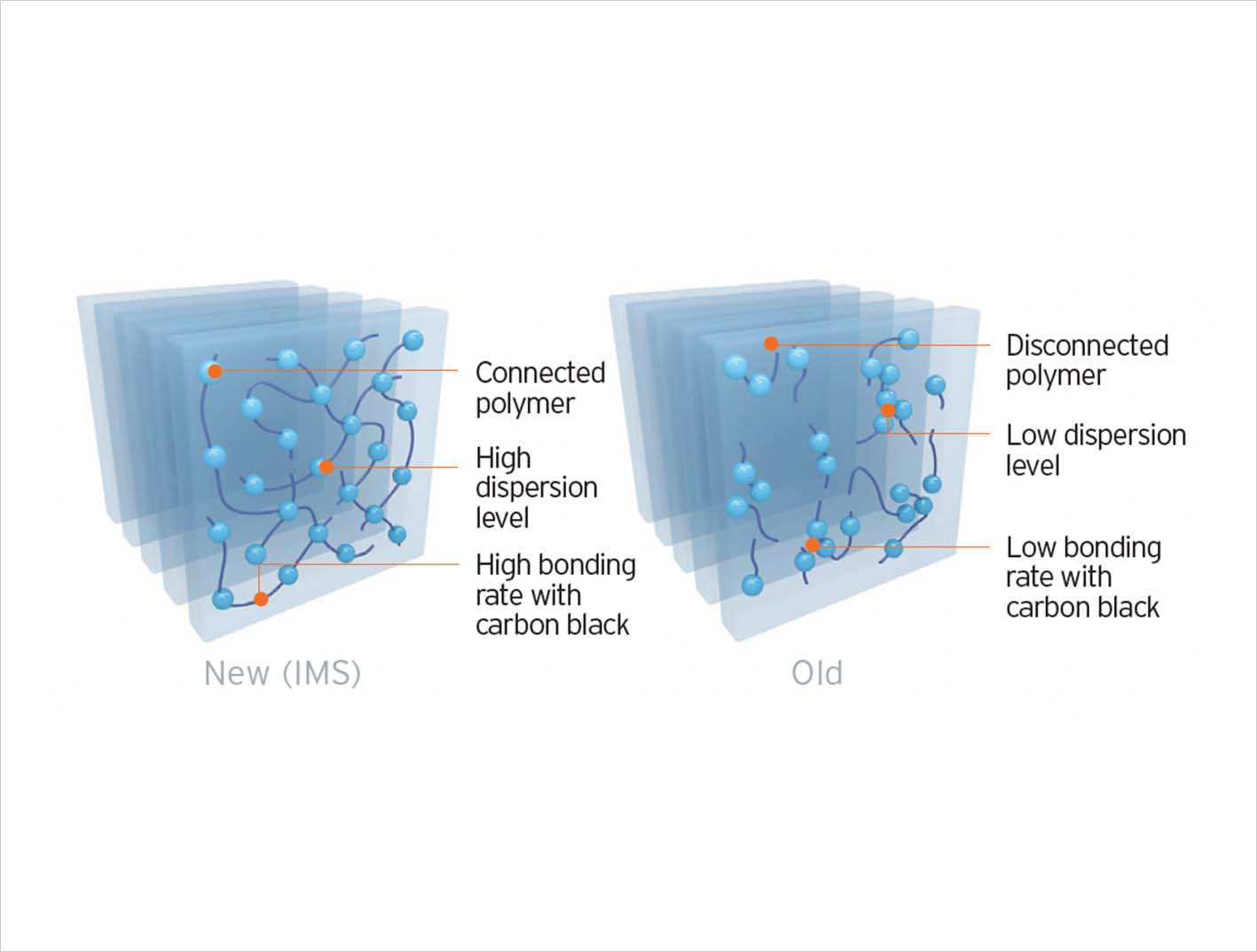

    New mixing system(IMS : Innovative Mixing System)

    Innovative Mixing System (IMS) minimises the breakdown and oxidation of polymer chains and has a higher dispersion degree of carbon black. The effects of IMS help to strengthen the bonding force between the carbon black and rubber to ensure longer mileage and to lower the heat generation of compounds for improved fuel efficiency.

    New mixing system(IMS : Innovative Mixing System)

    Innovative Mixing System (IMS) minimises the breakdown and oxidation of polymer chains and has a higher dispersion degree of carbon black. The effects of IMS help to strengthen the bonding force between the carbon black and rubber to ensure longer mileage and to lower the heat generation of compounds for improved fuel efficiency.

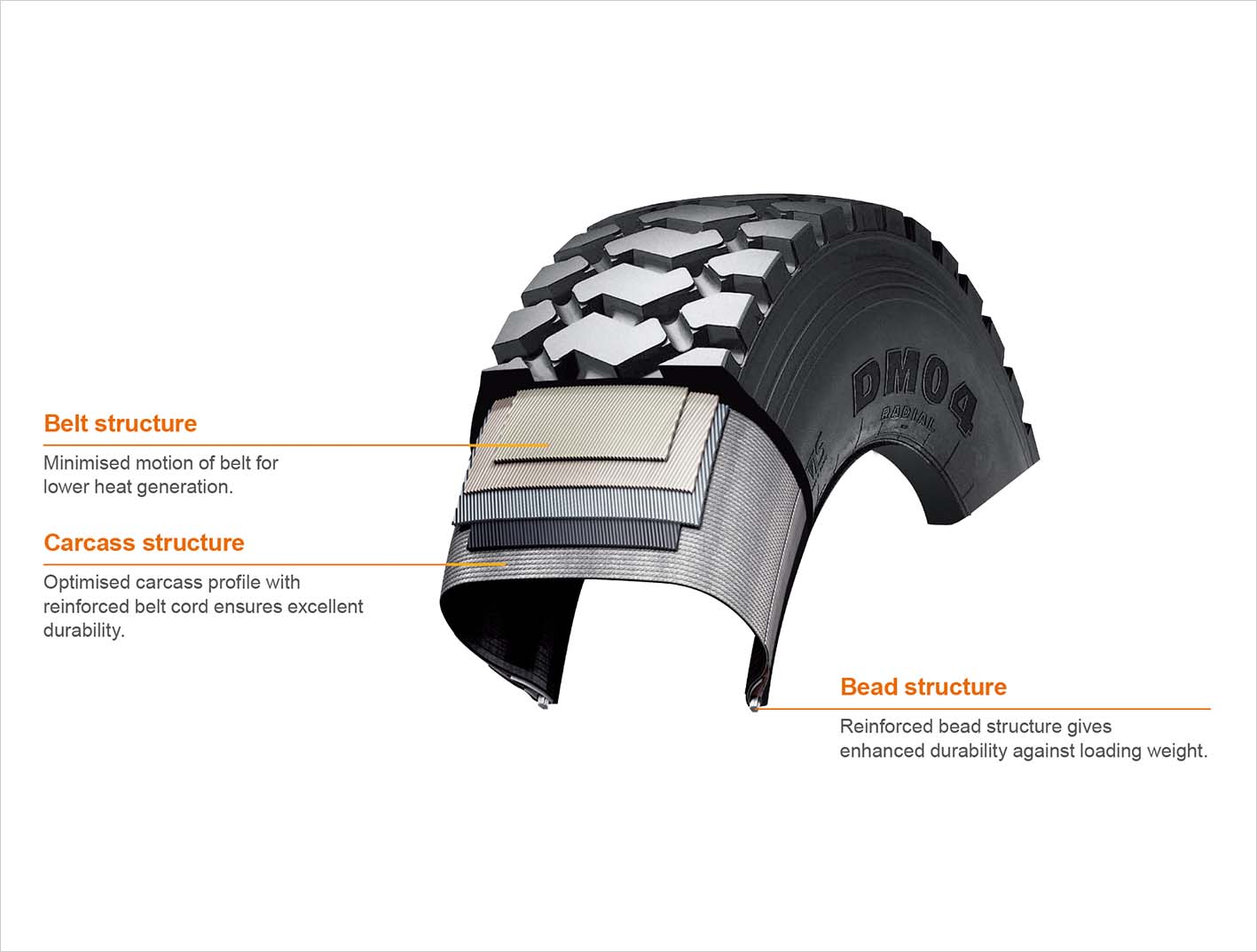

  • Tyre Structure

  • Spec

    • 11R22.5
      • Fuel Efficiency X
      • Wet Grip X
      • External Rolling Noise X
      • Tube Type / Tubeless L
      • Ply Rating 16
      • Measuring Rim 8.25X22.5
      • Load Index 148/145K
      • Section Width(mm) 282
      • Tread Width(mm) 220
      • Tread Depth(mm) 24.7
      • Static Loaded Radius(mm) 502
      • Overall Diameter(mm) 1075
      • M+S Y
      • 3PMSF N
      • Origin Korea
      • OEM DTNA
