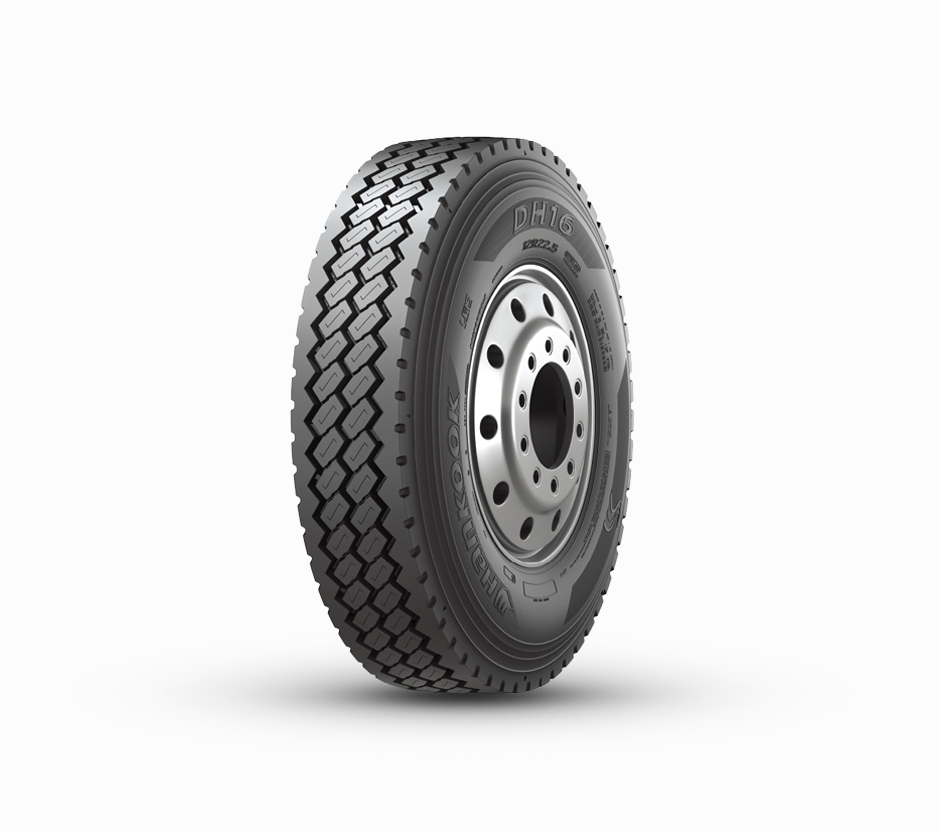

DH16

Drive axle radial tyre for regional haul

M+S 3PMSF

Application
  • Regional Haul
Bus Recommended Available
0Recently viewed products

Premium drive axle coach tyre with high driving comfort

Pattern Design

Regional drive position tyre for exceptional traction and
mileage performance

Enlarged hexagon block

The enlarged hexagon block
with rounded block edge reduces
irregular wear by evenly distributing
the load across the surface area.

Deeper tread depth

Deeper tread depth helps
provide long original tread life with
excellent retreadability

Pattern Design

Regional drive position tire for exceptional traction and
mileage performance

ZigZag Groove

Improves traction and braking
performance by expanding the
point of intersection through
aggressive 3 zig-zag main grooves.

Shoulder lug

Unique shoulder lug design
protects against cracking from
external shocks

  • Tyre Structure

    Innovative Mixing System (IMS) minimises the breakdown and oxidation of polymer chains and has a higher dispersion degree of carbon black. The effects of IMS help to strengthen the bonding force between the carbon black and rubber to ensure longer mileage and to lower the heat generation of compounds for improved fuel efficiency.

    Innovative Mixing System (IMS) minimises the breakdown and oxidation of polymer chains and has a higher dispersion degree of carbon black. The effects of IMS help to strengthen the bonding force between the carbon black and rubber to ensure longer mileage and to lower the heat generation of compounds for improved fuel efficiency.

  • Innovation Mixing System (IMS)

    Innovative Mixing System (IMS) minimises the breakdown and oxidation of polymer chains and has a higher dispersion degree of carbon black. The effects of IMS help to strengthen the bonding force between the carbon black and rubber to ensure longer mileage and to lower the heat generation of compounds for improved fuel efficiency.

    Innovative Mixing System (IMS) minimises the breakdown and oxidation of polymer chains and has a higher dispersion degree of carbon black. The effects of IMS help to strengthen the bonding force between the carbon black and rubber to ensure longer mileage and to lower the heat generation of compounds for improved fuel efficiency.

  • Test Result

  • Spec

    • 11R22.5
      • Tube Type / Tubeless L
      • Ply Rating 16
      • Measuring Rim 8.25X22.5
      • Load Index 148/145M
      • Section Width(mm) 284
      • Tread Width(mm) 216
      • Tread Depth(mm) 20.0
      • Static Loaded Radius(mm) 496
      • Overall Diameter(mm) 1066
      • M+S Y
      • 3PMSF Y
