Smart Work AM15+
All position tire with high mileage for on and off-road conditions
M+S
3PMSF
Application
-
On & Off Road

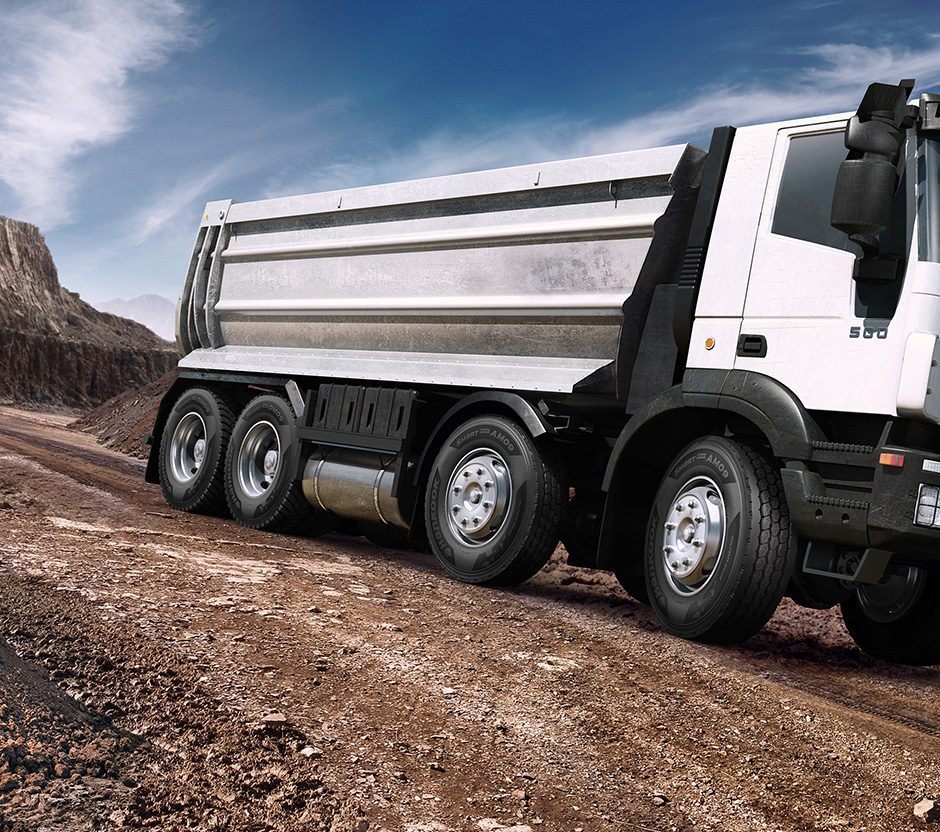

Dump
Recommended
Available
/dp/steer(all)-dump-1.svg){kind=icon}
/dp/steer(all)-dump-2.svg){kind=icon}
/dp/steer(all)-dump-3.svg){kind=icon}
On and off road all position tires, maximized for longer mileage
.jpg)
.jpg)
Design features
Extra-wide tread blocks and deep grooves
Extra-wide tread blocks and deep grooves ensure ultra-high mileage.
.jpg)
Optimized tie-bar
Open shoulder blocks with optimized tie-bars prevent irregular wear and provide excellent traction performance for off-road conditions.
.jpg)
Extra-wide grooves
Extra-wide grooves are designed for excellent stone rejection and improved traction.
.jpg)
-
Spec
- 22.5”
-
385/65R22.5
- Fuel Efficiency C
- Wet Grip B
- External Rolling Noise A
- Tube Type / Tubeless L
- Ply Rating 24
- Measuring Rim 11.75×22.5
- Load Index 164K
- Section Width(mm) 380
- Static Loaded Radius(mm) 498
- Overall Diameter(mm) 1080
- M+S Y
- 3PMSF Y
- 19.5”
- 22.5”
-
265/70R19.5
- Fuel Efficiency D
- Wet Grip B
- External Rolling Noise A
- Tube Type / Tubeless L
- Ply Rating 18
- Measuring Rim 7.5x19.5
- Load Index 143/141J
- Section Width(mm) 259
- Static Loaded Radius(mm) 405
- Overall Diameter(mm) 876
- M+S Y
- 3PMSF Y
-
445/65R22.5
- Fuel Efficiency C
- Wet Grip B
- External Rolling Noise B
- Tube Type / Tubeless L
- Ply Rating 20
- Measuring Rim 14.0X22.5
- Load Index 169K
- Section Width(mm) 445
- Static Loaded Radius(mm) 538
- Overall Diameter(mm) 1165
- M+S Y
- 3PMSF Y
