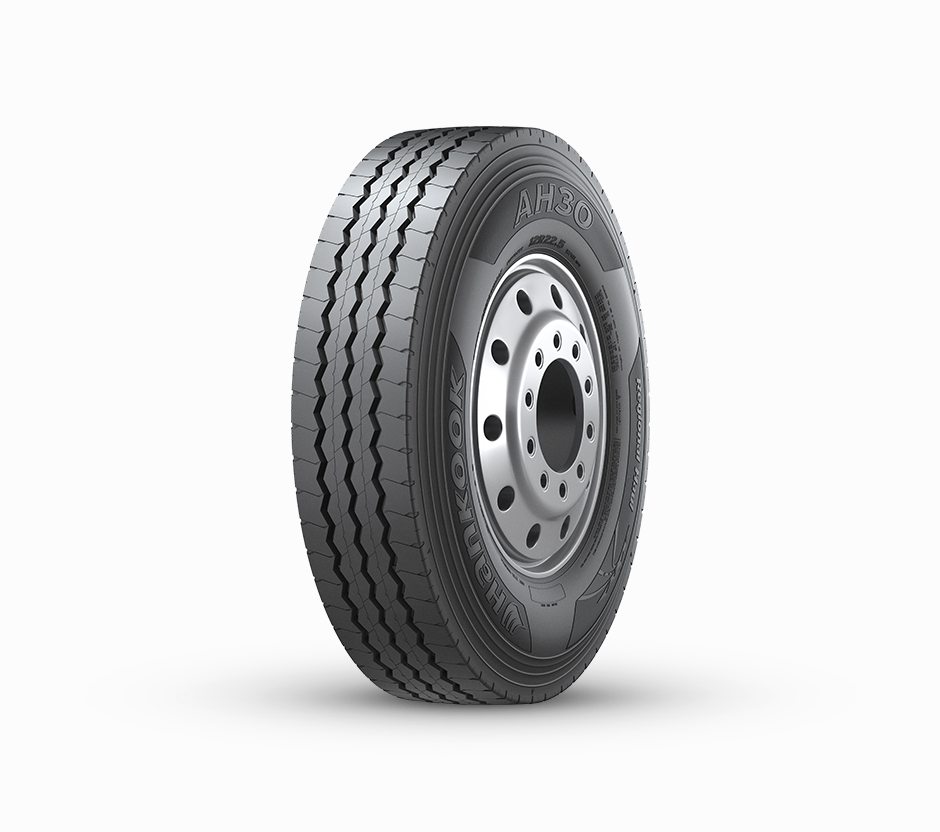

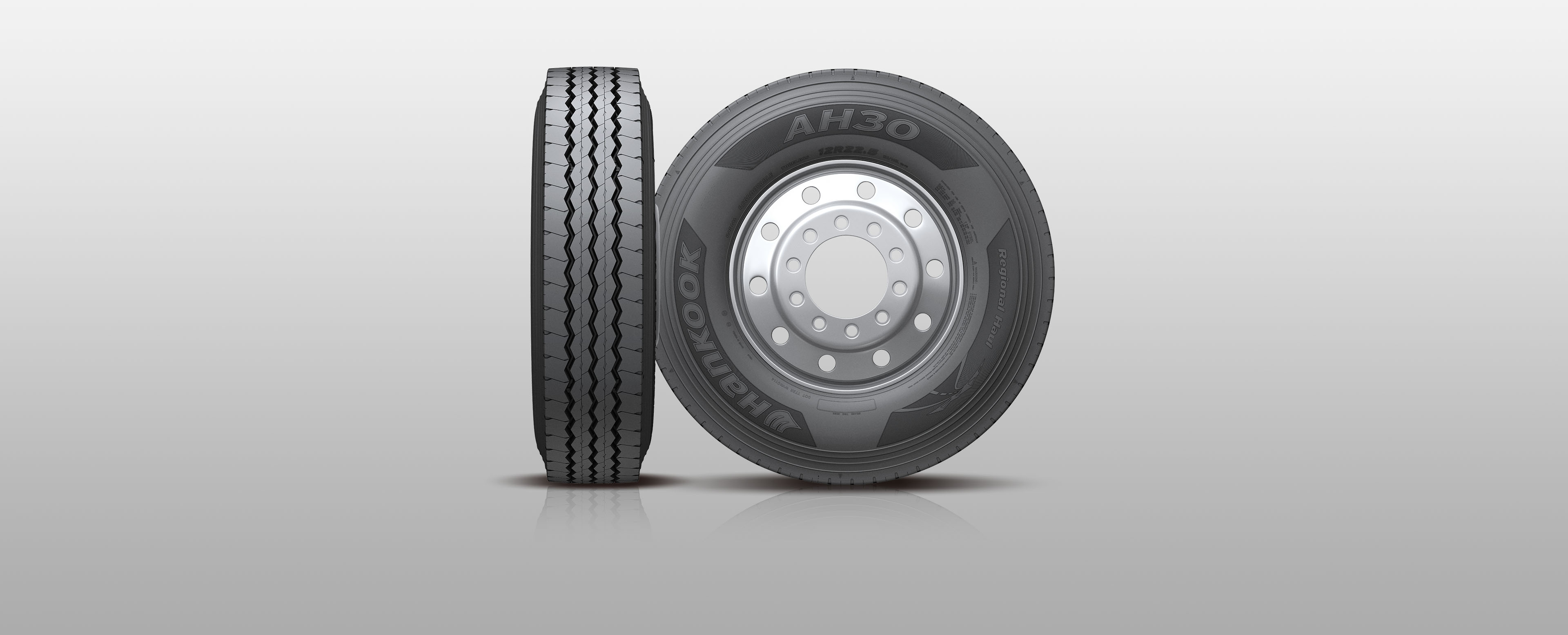

AH30
Regional steer position tire for exceptional traction and mileage performance
-
Regional Haul
Regional steer position tire for exceptional traction and mileage performance
.jpg)

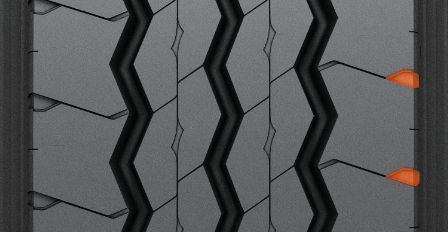

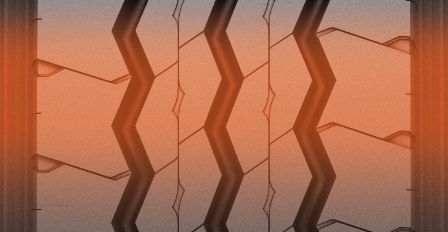

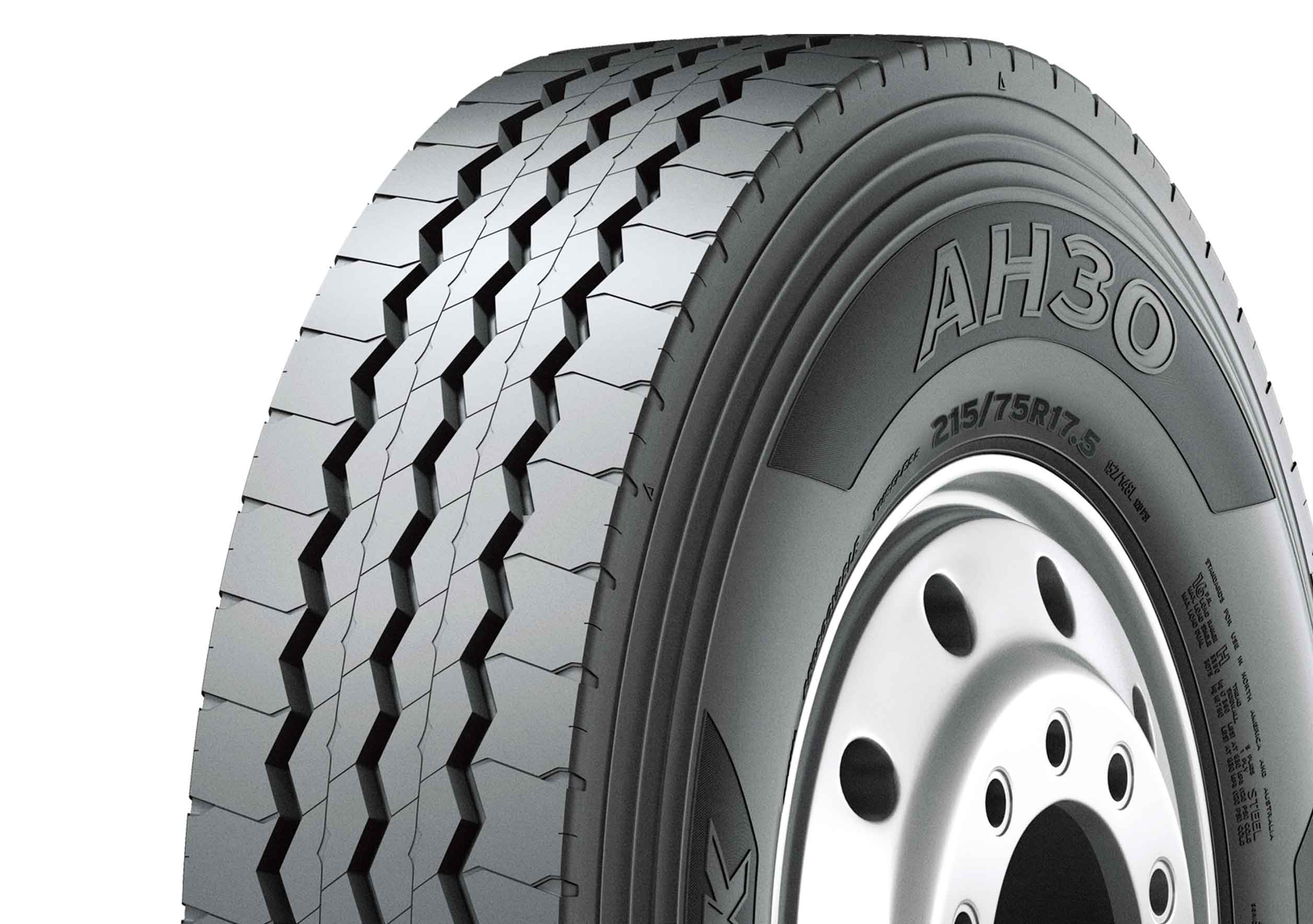

Pattern Design
.jpg)

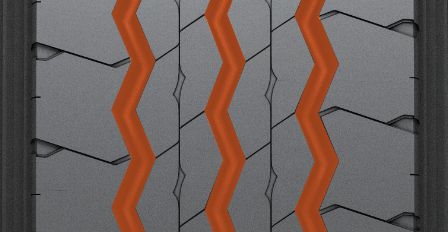

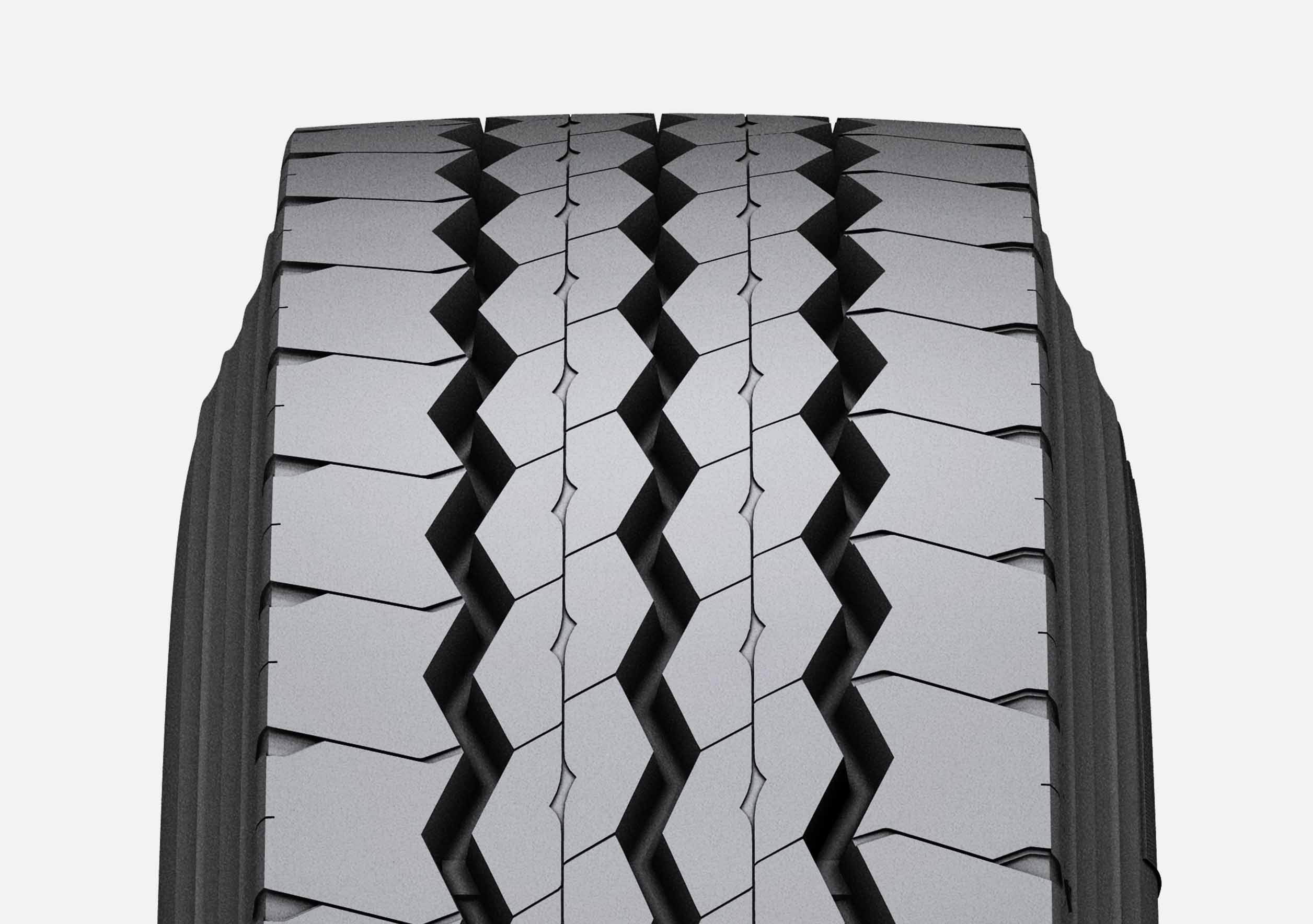

Pattern Design
1.jpg)
HK TBR Technology
_en.jpg)
_en.jpg)

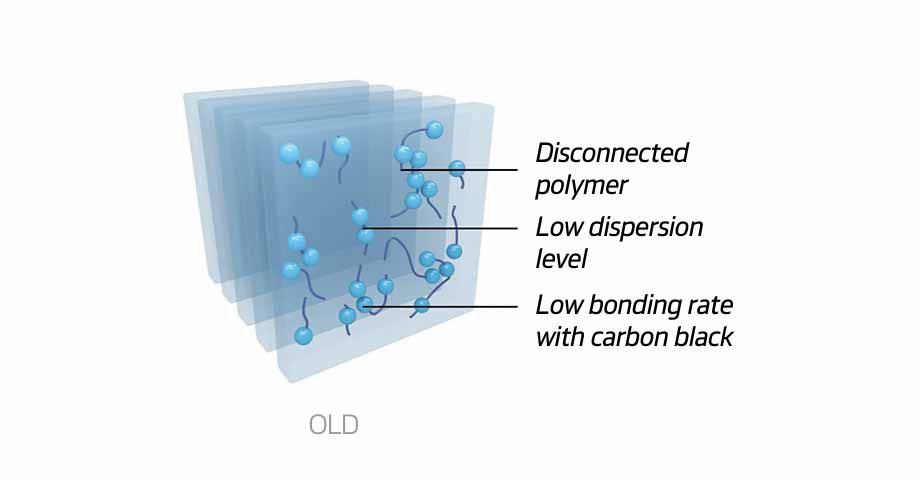

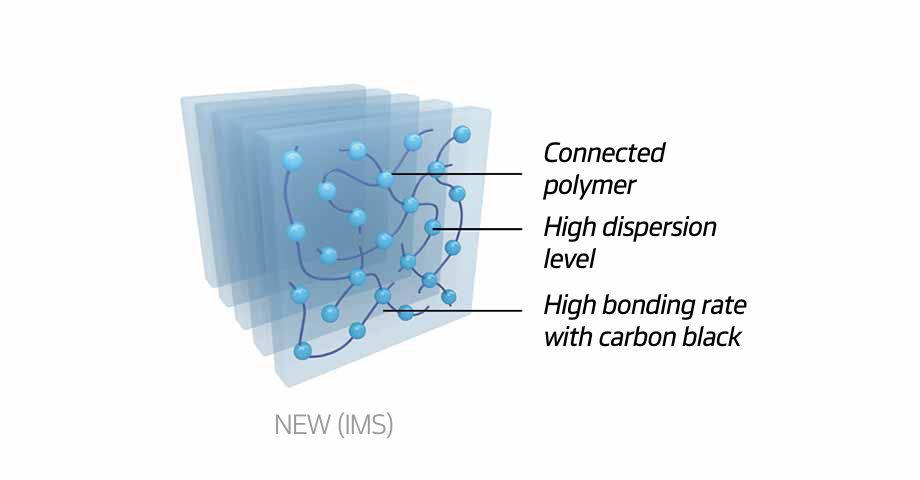

New Compound Mixing System
Innovative Mixing System (IMS) minimizes the breakdown and oxidation of polymer chains and has a higher dispersion degree of carbon black. The effects of IMS help to strengthen the bonding force between the carbon black and rubber to ensure longer mileage and to lower the heat generation of compounds for improved fuel efficiency.
-
Test Result
Endurance and Mileage
Endurance and Mileage
-
Spec
- 20”
- 22.5”
- 24”
-
1100R20
- Fuel Efficiency X
- Wet Grip X
- External Rolling Noise X
- Tube Type / Tubeless T
- Ply Rating 16
- Measuring Rim 8.0 X 20
- Load Index 150/147K
- Section Width(mm) 296
- Tread Width(mm) 216
- Tread Depth(mm) 15.5
- Overall Diameter(mm) 1083
- M+S N
- 3PMSF N
- Origin China
-
1200R24
- Fuel Efficiency X
- Wet Grip X
- External Rolling Noise X
- Tube Type / Tubeless T
- Ply Rating 20
- Measuring Rim 8.5X24
- Load Index 160/156K
- Section Width(mm) 319
- Tread Width(mm) 230
- Tread Depth(mm) 14.0
- Overall Diameter(mm) 1212
- M+S N
- 3PMSF N
- Origin China
-
315/80R22.5
- Fuel Efficiency X
- Wet Grip X
- External Rolling Noise X
- Tube Type / Tubeless L
- Ply Rating 20
- Measuring Rim 9.00X22.5
- Load Index 156/150M
- Section Width(mm) 319
- Tread Width(mm) 248
- Tread Depth(mm) 15.5
- Overall Diameter(mm) 1079
- M+S N
- 3PMSF N
- Origin China
-
325/95R24
- Fuel Efficiency C
- Wet Grip C
- External Rolling Noise 69
- Tube Type / Tubeless L
- Ply Rating 22
- Measuring Rim 9.00X24
- Load Index 162/160K
- Section Width(mm) 321
- Tread Width(mm) 230
- Tread Depth(mm) 14.0
- Overall Diameter(mm) 1213
- M+S N
- 3PMSF N
- Origin China
-
825R20
- Fuel Efficiency X
- Wet Grip X
- External Rolling Noise X
- Tube Type / Tubeless T
- Ply Rating 16
- Measuring Rim 6.5X20
- Load Index 139/137L
- Section Width(mm) 231
- Tread Width(mm) 166
- Tread Depth(mm) 13.5
- Overall Diameter(mm) 971
- M+S N
- 3PMSF N
- Origin China
-
900R20
- Fuel Efficiency X
- Wet Grip X
- External Rolling Noise X
- Tube Type / Tubeless T
- Ply Rating 16
- Measuring Rim 7.0X20
- Load Index 144/142K
- Section Width(mm) 258
- Tread Width(mm) 198
- Tread Depth(mm) 13.5
- Overall Diameter(mm) 1018
- M+S N
- 3PMSF N
- Origin China
