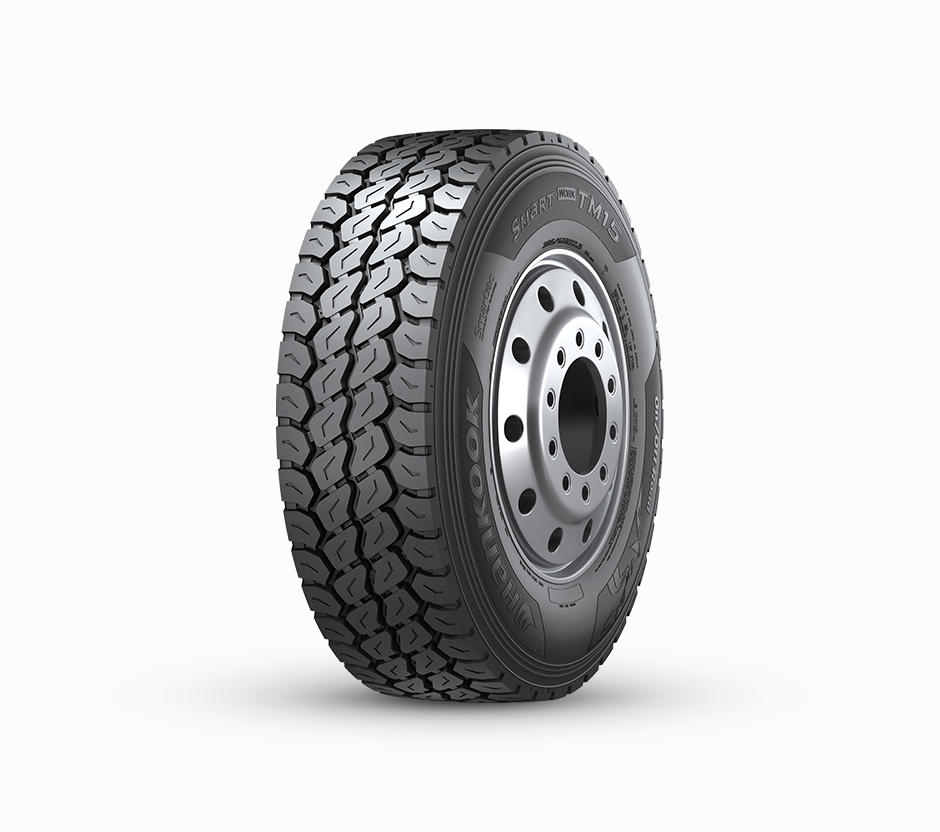

Smart Work TM15

Trailer tire for on and off-road applications and increased mileage

M+S 3PMSF

Application
  • On & Off Road
Dump Recommended Available
Where to buy
Where to buy 0
0Recently viewed products

Trailer tire for on and off-road applications and increased mileage

Hankook Tire & Technology-Tires-Smart-work-detail-concept-01

Design features

Expanded groove

Expanded groove width compared to the predecessor for enhanced traction performance.

Hankook Tire & Technology-Tires-Smart-work-detail-feature-01

Stone ejector

Stone ejector rib in the middle of the grooves prevents stone drilling.

  • Hankook Tire & Technology-Tires-Smart-work-detail-feature-02
  • Hankook Tire & Technology-Tires-Smart-work-detail-feature-02

Tie bar

Adoption of optimal linear grooves for maximum stability and performance with better water dispersal.

Hankook Tire & Technology-Tires-Smart-work-detail-feature-03
Hankook Tire & Technology-Tires-Smart-work-detail-main-01

Design features

  • Stiffness Control Contour Theory (SCCT) technology

    SCCT Technology is designed to reduce profile deformation. If the carcass profile is not kept constant, the internal force on the carcass will be concentrated on a specific point, belt edge or carcass turn up edge. In contrast, SCCT technology controls the dispersion of internal force for better durability.

    Hankook Tire & Technology-Tires-Smart-work-detail-main-01

    SCCT Technology is designed to reduce profile deformation. If the carcass profile is not kept constant, the internal force on the carcass will be concentrated on a specific point, belt edge or carcass turn up edge. In contrast, SCCT technology controls the dispersion of internal force for better durability.

  • Spec

    • 22.5”
    • 385/65R22.5
      • Fuel Efficiency D
      • Wet Grip B
      • External Rolling Noise 69
      • Tube Type / Tubeless L
      • Ply Rating 20
      • Measuring Rim 11.75X22.5
      • Load Index 160K
      • Section Width(mm) 380
      • Tread Width(mm) 308
      • Tread Depth(mm) 17.5
      • Static Loaded Radius(mm) 503
      • Overall Diameter(mm) 1078
      • M+S Y
      • 3PMSF Y
      • Origin China
