Smart Flex DL15

Fuel Efficient and Optimized Traction Performance for Long and Regional Haul

M+S

Application
  • Long Haul
Tractor/Trailer Recommended Available
0Recently viewed products

Fuel Efficient and Optimized Traction Performance
for Long and Regional Haul

Hankook Tire & Technology-Tires-Smart-Smart Flex-DL15-Fuel Efficient and Optimized Traction Performance for Long and Regional Haul

Optimized pattern design for
traction and fuel efficiency

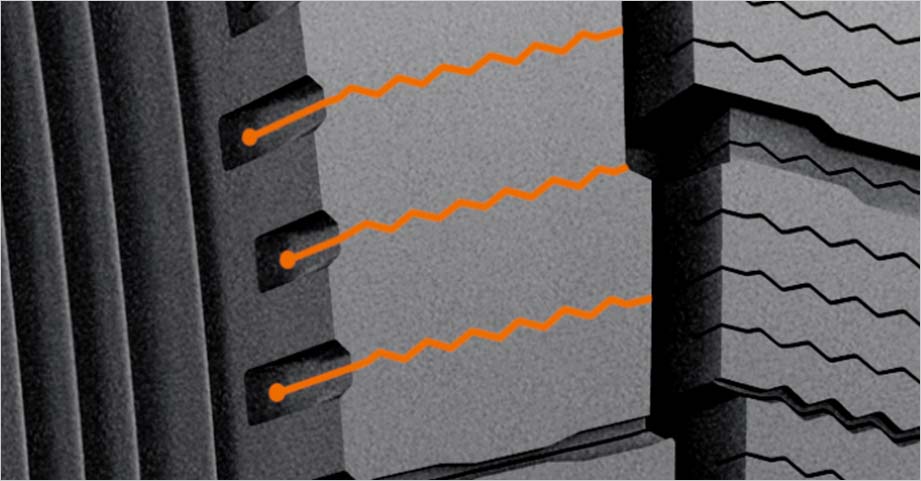

Zigzag groove

Main four zigzag grooves deliver great traction performance.

Rib+semi lug

Combined structure of rib and semi block pattern provides excellent stability, mileage and handling.

Wide closed shoulder

Enhances stability and fuel efficiency allowing smooth wear.

Optimized pattern design for traction and fuel efficiency

3-Dimensional Sipe Technology for traction and robustness

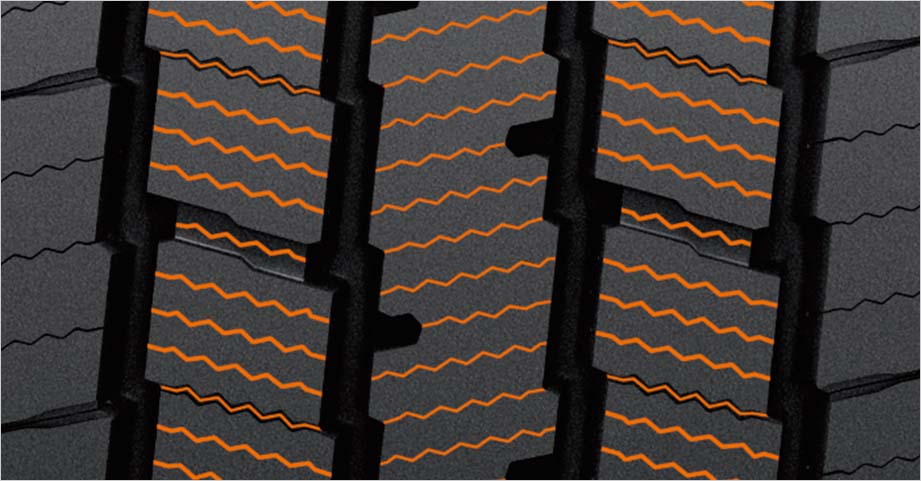

3-Dimensional Sipe

Delivers excellent mileage and traction performance with reduced irregular wear which enhances fuel efficiency.

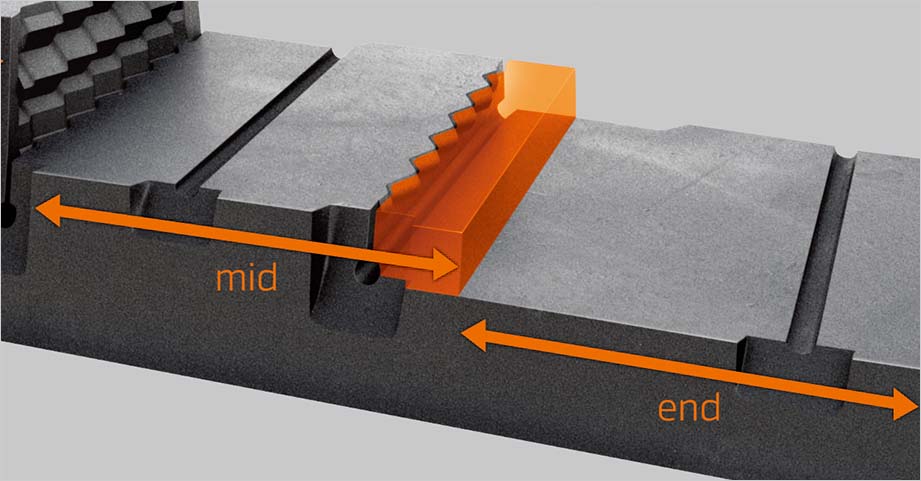

Self-regenerating sipe

Turns out as groove at the mid and latter stage of use and it keeps excellent traction until the end of wear.

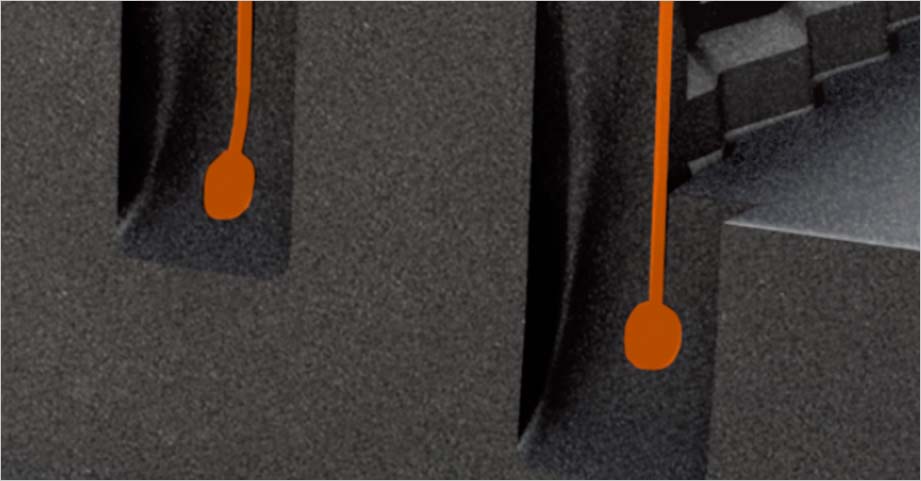

Bottom round edge sipe

Round at the end of sipe prevents crack and tearing.

  • Test Result

    Mileage

    Mileage improved 5% Compared to competitor

    Mileage

    Mileage improved 5% Compared to competitor

  • Spec

    • 11R22.5
      • Material Code 3003141
      • TT/TL L
      • Ply Rating 14
      • Measuring Rim 8.25×22.5
      • Section Width(inch) 11.3
      • Tread Width(inch) 9.6
      • Tread Depth(32nds) 26
      • Static Loaded Radius(inch) 19.5
      • Overall Diameter(inch) 41.8
      • Tire Weight(lbs.) 130
      • M+S Y
      • 3PMSF N
      • Max Speed (mph) 75
    • 11R22.5
      • Material Code 3003142
      • TT/TL L
      • Ply Rating 16
      • Measuring Rim 8.25X 22.5
      • Section Width(inch) 11.3
      • Tread Width(inch) 9.6
      • Tread Depth(32nds) 26
      • Static Loaded Radius(inch) 19.6
      • Overall Diameter(inch) 41.8
      • Tire Weight(lbs.) 130
      • M+S Y
      • 3PMSF N
      • Max Speed (mph) 75
    • 11R24.5
      • Material Code 3003144
      • TT/TL L
      • Ply Rating 16
      • Measuring Rim 8.25X24.5
      • Section Width(inch) 11.3
      • Tread Width(inch) 9.6
      • Tread Depth(32nds) 26
      • Static Loaded Radius(inch) 20.5
      • Overall Diameter(inch) 44.0
      • Tire Weight(lbs.) 139
      • M+S Y
      • 3PMSF N
      • Max Speed (mph) 75
    • 285/75R24.5
      • Material Code 3003145
      • TT/TL L
      • Ply Rating 14
      • Measuring Rim 8.25×24.5
      • Section Width(inch) 11.0
      • Tread Width(inch) 9.6
      • Tread Depth(32nds) 26
      • Static Loaded Radius(inch) 19.6
      • Overall Diameter(inch) 41.9
      • Tire Weight(lbs.) 130
      • M+S Y
      • 3PMSF N
      • Max Speed (mph) 75
    • 295/75R22.5
      • Material Code 3002908
      • TT/TL L
      • Ply Rating 14
      • Measuring Rim 9.0X22.5
      • Section Width(inch) 11.9
      • Tread Width(inch) 9.6
      • Tread Depth(32nds) 26
      • Static Loaded Radius(inch) 19.0
      • Overall Diameter(inch) 40.7
      • Tire Weight(lbs.) 125
      • M+S Y
      • 3PMSF N
      • Max Speed (mph) 75
