DL20w e-cube MAX

Fuel efficient, reliable and high mileage drive axle tyre for long haul applications

M+S 3PMSF

Key features
  • Long Haul
Tractor/Trailer Recommended Available
0

Fuel efficient, reliable and high mileage drive axle tyre for long haul applications

Traction and Fuel Efficiency with Optimised Pattern Design

Centre Zig-Zag groove

The centre zigzag grooves create a binding effect on each tread block contributing to better rolling resistance and traction.

Optimised block size

The wider tread block than the previous product enhances the rigidity and reduces tyre rolling resistance.

Self-Regeneration Sipe & Hidden Groove Technology for wet grip & traction performance.

During whole tyre's life cycle, Hidden Groove & Self-Regeneration Sipe technologies maintain the wet grip & traction performance.

Hidden groove

As hidden grooves appear at the end of wear, it keeps wet and traction performance.

Self-regeneration sipe

As the tyre wears, sipes and grooves are revealed to give improved traction and grip performance.

Self-Regeneration Sipe & Hidden Groove Technology for wet grip & traction performance.

During whole tyre's life cycle, Hidden Groove & Self-Regeneration Sipe technologies maintain the wet grip & traction performance.

3D Sipe Technology for excellent mileage and traction

3-Dimensional Sipe

Full Depth 3D sipes maintain excellent mileage and traction during the whole tyre life by reinforcing interlocking between the blocks.

Controlled trearing and wearing

Controlled trearing and wearing → Improve mileage.
Full depth sipe applied → Keeps good traction during whole tyre life.

3D Sipe Technology for excellent mileage and traction

Test Result

Mileage

Mileage improves 5% compared to DL10+(* 2020 internal test results between DL20w and DL10+ 315/70R22.5)

Rolling resistance and fuel efficiency

RRc improves 20% compared to DL10+, which brings 5% fuel savings.(* 2020 internal test results between DL20w and DL10+ 315/70R22.5)

Traction

Traction improves 20% compared to DL10+(* 2020 internal test results between DL20w and DL10+ 315/70R22.5)

Damage resistance and durability

Durability improves 10% compared to DL10+(* 2020 internal test results between DL20w and DL10+ 315/70R22.5)

  • Innovative Mixing System

    The Innovative Mixing System (IMS) minimises the disconnection of the polymer chain and oxidation. The carbon black reinforcement also has higher dispersion levels. These effects of IMS help strengthen the bonding force between carbon black and rubber for better strength of compound and lower heat generation. IMS ensures long mileage and fuel efficiency.

    The Innovative Mixing System (IMS) minimises the disconnection of the polymer chain and oxidation. The carbon black reinforcement also has higher dispersion levels. These effects of IMS help strengthen the bonding force between carbon black and rubber for better strength of compound and lower heat generation. IMS ensures long mileage and fuel efficiency.

  • Stiffness Control Contour Theory Technology (SCCT Technology)

    SCCT Technology is designed for constant profile deformation. If the carcass profile cannot be kept constant, the internal force on the carcass will be concentrated on a specific point (belt edge or turned up carcass edge). In contrast, SCCT technology controls the dispersion of internal forces for better durability. SCCT allows Hankook Tire to develop tyres by balancing optimum stiffness with contact shape which improves performance, safety, cornering, braking and durability.

    SCCT Technology is designed for constant profile deformation. If the carcass profile cannot be kept constant, the internal force on the carcass will be concentrated on a specific point (belt edge or turned up carcass edge). In contrast, SCCT technology controls the dispersion of internal forces for better durability. SCCT allows Hankook Tire to develop tyres by balancing optimum stiffness with contact shape which improves performance, safety, cornering, braking and durability.

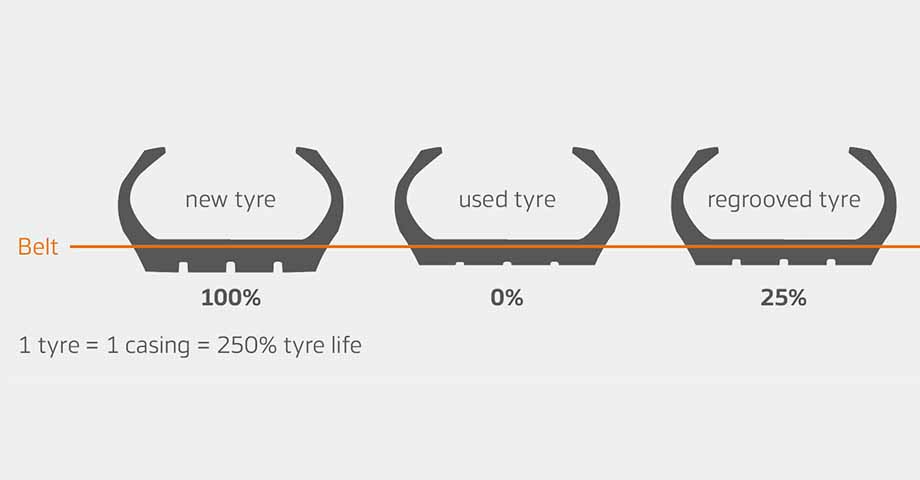

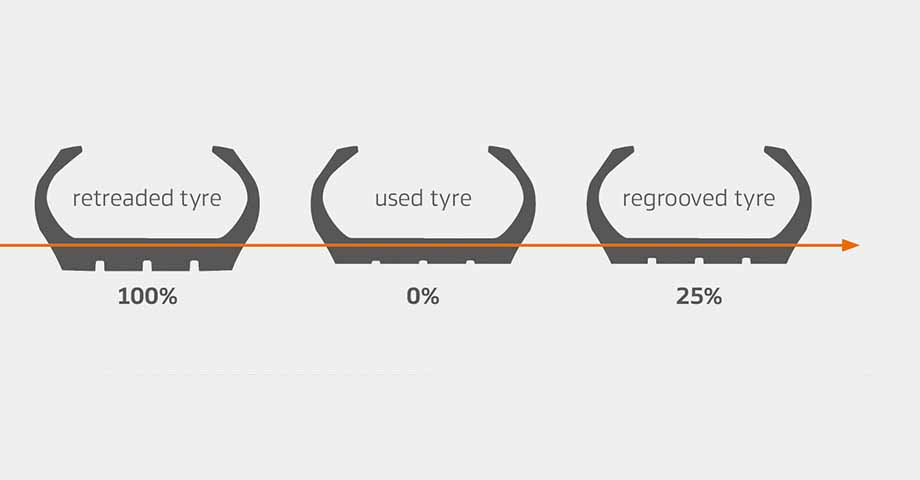

Hankook SmartLife

Premium tyres and casings that deliver up to 250% tyre life

Hankook premium tyres are manufactured with robust carcass design and additional regroove tread rubber to deliver a second regrooved tyre life and a third retread life.

  • Spec

    • 295/60R22.5
      • Fuel Efficiency B
      • Wet Grip C
      • External Rolling Noise 72
      • Tube Type / Tubeless L
      • Measuring Rim 9.0X22.5
      • Load Index 150/147L
      • Section Width(mm) 288
      • Tread Width(mm) 268
      • Tread Depth(mm) 13.0
      • Overall Diameter(mm) 920
      • M+S Y
      • 3PMSF Y
    • 295/60R22.5
      • Fuel Efficiency B
      • Wet Grip C
      • External Rolling Noise 72
      • Tube Type / Tubeless L
      • Measuring Rim 9.0X22.5
      • Load Index 150/147L
      • Section Width(mm) 288
      • Tread Width(mm) 268
      • Tread Depth(mm) 13.0
      • Static Loaded Radius(mm) 425
      • Overall Diameter(mm) 920
      • M+S Y
      • 3PMSF Y
    • 315/60R22.5
      • Fuel Efficiency B
      • Wet Grip C
      • External Rolling Noise 72
      • Tube Type / Tubeless L
      • Measuring Rim 9.75X22.5
      • Load Index 152/148L
      • Section Width(mm) 318
      • Tread Width(mm) 290
      • Tread Depth(mm) 13.4
      • Static Loaded Radius(mm) 442
      • Overall Diameter(mm) 951
      • M+S Y
      • 3PMSF Y
    • 315/70R22.5
      • Fuel Efficiency B
      • Wet Grip C
      • External Rolling Noise 72
      • Tube Type / Tubeless L
      • Measuring Rim 9.0X22.5
      • Load Index 154/150L
      • Section Width(mm) 314
      • Tread Width(mm) 290
      • Tread Depth(mm) 14.6
      • Static Loaded Radius(mm) 470
      • Overall Diameter(mm) 1012
      • M+S Y
      • 3PMSF Y
    • 315/80R22.5
      • Fuel Efficiency B
      • Wet Grip C
      • External Rolling Noise 72
      • Tube Type / Tubeless L
      • Measuring Rim 9.0×22.5
      • Load Index 156/150L
      • Section Width(mm) 318
      • Tread Width(mm) 280
      • Tread Depth(mm) 15.0
      • Static Loaded Radius(mm) 500
      • Overall Diameter(mm) 1079
      • M+S Y
      • 3PMSF Y
