AL20W e-cube MAX

Fuel efficient, reliable and high mileage all-position tyre for long haul applications.

M+S 3PMSF

Application
  • Long Haul
Tractor/Trailer Recommended
Where to buy
0
0Recently viewed products

Fuel efficient, reliable and high mileage all-position tyre for long haul applications

Fuel Efficiency and High Mileage with Optimised Pattern Design

Stepped groove

Groove wall step features prevent block deformation and gives reinforcement between tread blocks.

Irregular wear prevention sipe

Multiple sipes prevent irregular wear by dispersing stress applied to the groove edge.

Optimised block size

The wide tread block enhances the rigidity and improves grip, mileage and reduces the tyre's rolling resistance.

Hidden groove Technology for Wet
Grip and Traction Performance

No Wear

Hankook premium technologies deliver improved grip, mileage and fuel efficiency.

50% Wear

3-Dimensional Sipes maintain tread block stiffness to deliver grip and low rolling resistance when 50% worn.

80% Wear

Hidden grooves appear when the tyre is 80% worn delivering improved wet grip and traction performance.

Hidden groove Technology for Wet Grip and Traction Performance

3-Dimensional Sipe Technology for excellent mileage and traction

3-Dimensional Sipe

Deliver excellent mileage and traction performance with reduced irregular wear which enhances fuel efficiency.

Tearing and wearing

Controlling tearing and wearing improves mileage. Applying full depth sipe keeps good traction during whole tyre life.

3-Dimensional Sipe Technology for excellent mileage and traction

Test Result

Mileage

Mileage improves 10% compared to AL10+(* 2020 internal test results between AL20w and AL10+ 315/70R22.5).

Rolling resistance and fuel efficiency

RRc improves 15% compared to AL10+, which brings 3.8% fuel savings.(* 2020 internal test results between AL20w and AL10+ 315/70R22.5).

Traction

Traction improves 20% compared to AL10+(* 2020 internal test results between AL20w and AL10+ 315/70R22.5).

Damage resistance and durability

Durability improves 5% compared to AL10+(* 2020 internal test results between AL20w and AL10+ 315/70R22.5).

  • Innovative Mixing System(IMS)

    Innovative Mixing System (IMS) minimises the breakdown and oxidation of polymer chains and has a higher dispersion degree of carbon black. The effects of IMS help to strengthen the bonding force between the carbon black and rubber to ensure longer mileage and to lower the heat generation of compounds for improved fuel efficiency.

    Innovative Mixing System (IMS) minimises the breakdown and oxidation of polymer chains and has a higher dispersion degree of carbon black. The effects of IMS help to strengthen the bonding force between the carbon black and rubber to ensure longer mileage and to lower the heat generation of compounds for improved fuel efficiency.

  • Stiffness Control Contour Theory Technology (SCCT Technology)

    SCCT Technology is designed to reduce profile deformation. If the carcass profile is not kept constant, the internal force on the carcass will be concentrated on a specific point, belt edge or carcass turn up edge. In contrast, SCCT Technology controls the dispersion of internal force for better durability.

    SCCT Technology is designed to reduce profile deformation. If the carcass profile is not kept constant, the internal force on the carcass will be concentrated on a specific point, belt edge or carcass turn up edge. In contrast, SCCT Technology controls the dispersion of internal force for better durability.

Hankook SmartLife

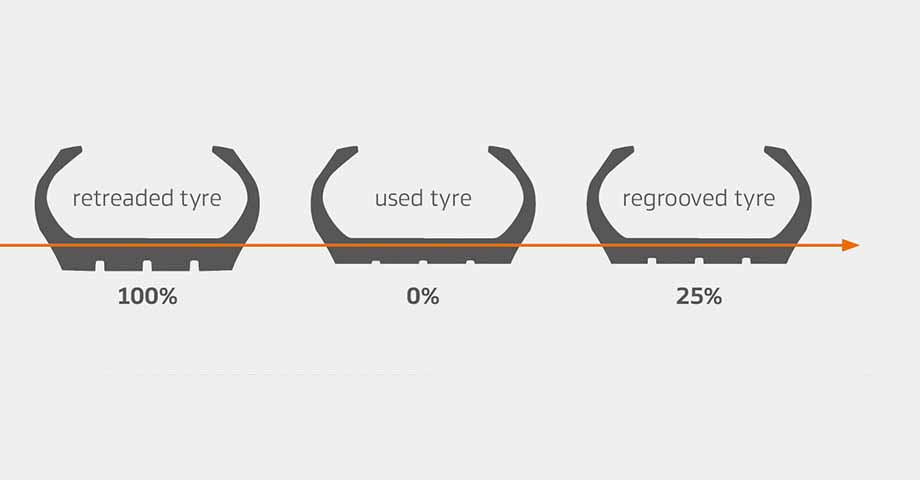

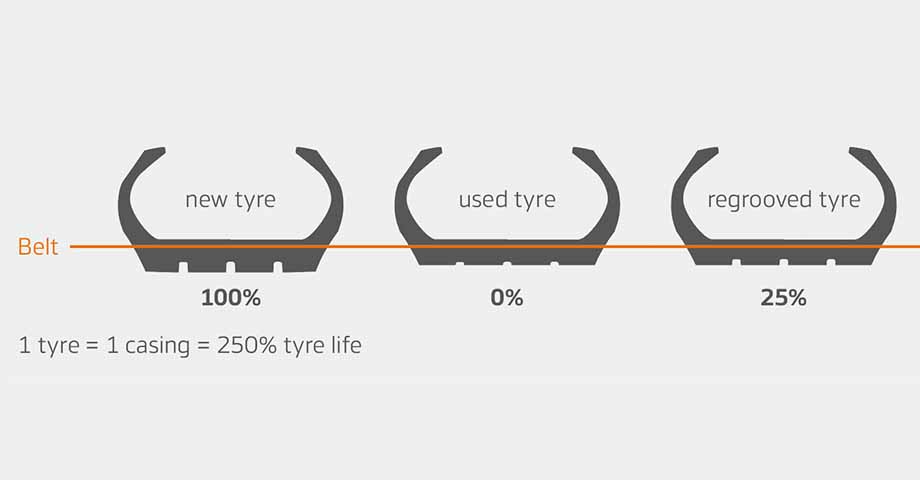

Hankook premium tyres are manufactured with robust carcass design and additional regroove tread rubber to deliver a second regrooved tyre life and a third retread life.

  • Spec

    • 295/60R22.5
      • Fuel Efficiency B
      • Wet Grip C
      • External Rolling Noise 70
      • Tube Type / Tubeless L
      • Measuring Rim 9.0X22.5
      • Load Index 150/147L
      • Section Width(mm) 288
      • Tread Width(mm) 244
      • Tread Depth(mm) 11.0
      • Static Loaded Radius(mm) 425
      • Overall Diameter(mm) 919
      • M+S Y
      • 3PMSF Y
      • Origin Korea
      • OEM MAN/SCANIA
    • 315/60R22.5
      • Fuel Efficiency B
      • Wet Grip C
      • External Rolling Noise 70
      • Tube Type / Tubeless L
      • Measuring Rim 9.75x22.5
      • Load Index 154/148L
      • Section Width(mm) 318
      • Tread Width(mm) 280
      • Tread Depth(mm) 10.5
      • Static Loaded Radius(mm) 436
      • Overall Diameter(mm) 944
      • M+S Y
      • 3PMSF Y
      • Origin Korea
      • OEM MAN/SCANIA
    • 315/70R22.5
      • Fuel Efficiency B
      • Wet Grip C
      • External Rolling Noise 71
      • Tube Type / Tubeless L
      • Measuring Rim 9.0X22.5
      • Load Index 156/150L
      • Section Width(mm) 314
      • Tread Width(mm) 270
      • Tread Depth(mm) 11.6
      • Static Loaded Radius(mm) 463
      • Overall Diameter(mm) 1005
      • M+S Y
      • 3PMSF Y
      • Origin Korea
      • OEM MAN/SCANIA, VOLVO
    • 315/80R22.5
      • Fuel Efficiency B
      • Wet Grip B
      • External Rolling Noise 70
      • Tube Type / Tubeless L
      • Measuring Rim 9.0X22.5
      • Load Index 156/150L
      • Section Width(mm) 320
      • Tread Width(mm) 260
      • Tread Depth(mm) 13.0
      • Static Loaded Radius(mm) 497
      • Overall Diameter(mm) 1072
      • M+S Y
      • 3PMSF Y
      • Origin Korea
    • 355/50R22.5
      • Fuel Efficiency B
      • Wet Grip C
      • External Rolling Noise 72
      • Tube Type / Tubeless L
      • Measuring Rim 11.75X22.5
      • Load Index 156L
      • Section Width(mm) 356
      • Tread Width(mm) 306
      • Tread Depth(mm) 10.6
      • Static Loaded Radius(mm) 430
      • Overall Diameter(mm) 928
      • M+S Y
      • 3PMSF Y
      • Origin Korea
      • OEM MAN/SCANIA

EU Tyre Label

Download your EU Tyre label below.
